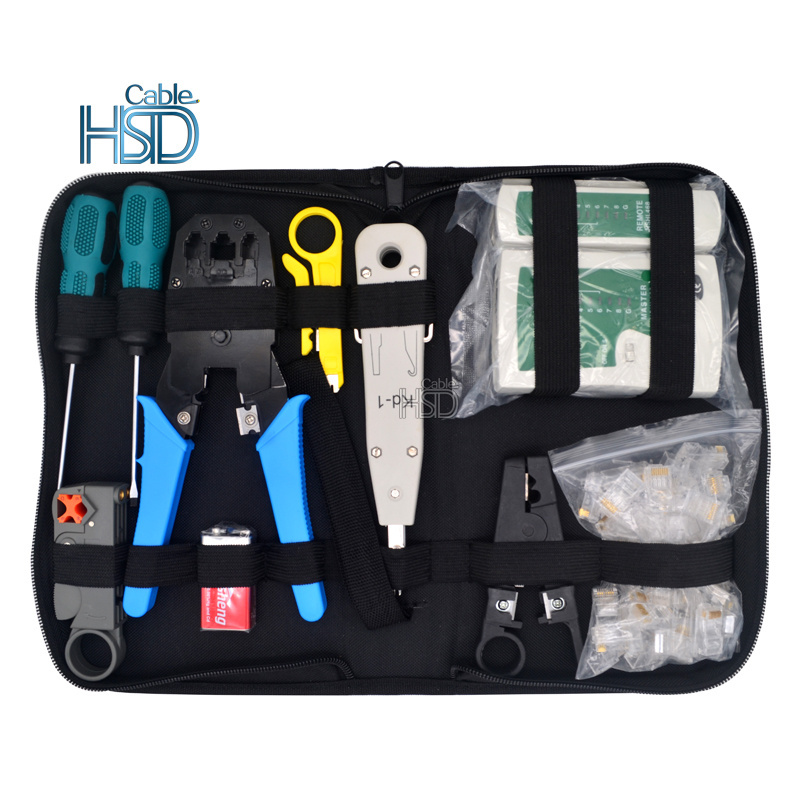

Set RJ45 Ethernet Cable Tester Crimper Stripper Cutter Punch Down Tool Network Kit Cat6 Crimping Tool Kit

Product Name : Network Multi Function Crimp Tool Kits

Cat5e standard, suitable for RJ45 connector. With stripping function, meet domestic installation requirements, quality assurance
This tool integrates all the functions of wire clamp, and can easily cut, press and strip the wire.
Standard connection of twisted pair:

Twisted pairs are generally used for star network wiring. Each twisted pair connects various network devices through RJ-45 connectors (commonly known as crystal heads) installed at both ends. The standard connection method of twisted pair cable is not arbitrarily stipulated. The purpose is to ensure the symmetry of cable joint layout, so that the interference between the cables in the joint can be offset each other.

Cat5e line is a common network line in network routing, which can be divided into shielding and non-shielding. If it is used outdoors, shielded wires are better. Generally, it is enough to use non-shielded five types of wires indoors. Because there is no shielding layer, the cable will be relatively soft, but the connection method is the same. Generally, there are four pairs of twisted thin lines in the super-five lines, and they are marked with different colors.

There are two types of twisted pair connection: EIA/TIA 568B standard and EIA/TIA 568A standard.

The tail of the RJ45 connector is downward (i.e. the flat side is upward) from left to right, which is set at 1 23 4 5 6 7 8, respectively. The following is the distribution of each orifice.

T568A line order
Green, white, green, orange, white, blue, white, orange, brown and white brown

T568B line order
Orange, white, orange, green, blue, white, green, brown and white brown


Specification parameter :

CAT5E RJ45 Connector Unshielded
8P8C 100 pcs/pack

External Pass Through Connector Shielded 8P8C For CAT6/5e

CAT6A RJ45 Connector Internal

Shielded 8P8C 100 pcs/pack

CAT7 RJ45 Connector External

Shielded 8P8C 100 pcs/pack

Multi Function Pass Through Crimper

Hand Network Tools Pliers

RJ45 Boots For Cat5e Cat6

Modular Plug

A1- We are Factory with ISO9001-2015 and ETL Certification , it verified by Intertek .

A2- Yes, we can provide better discount for valued customers.

A3- Yes, we can print your LOGO on the products.

A4- Generally, it will take 3-5 working days. The specific delivery time depends on the items and the quantity of your order.

A5- Our products are manufactured strictly in terms of ISO9001-2015 and we provide high-quality and reliable products.

A6- We will Return the payment or Re make the order if it's our production quality problem.Our engineers will provide best
solutions on any of quality feedbacks.

A7- Yes, we can provide free samples, some high value samples cost can return to customer after order too.

A8- T/T 15-30% as deposit, and 70-85% before delivery. We can support Credit to some of valued and familiar customers.
