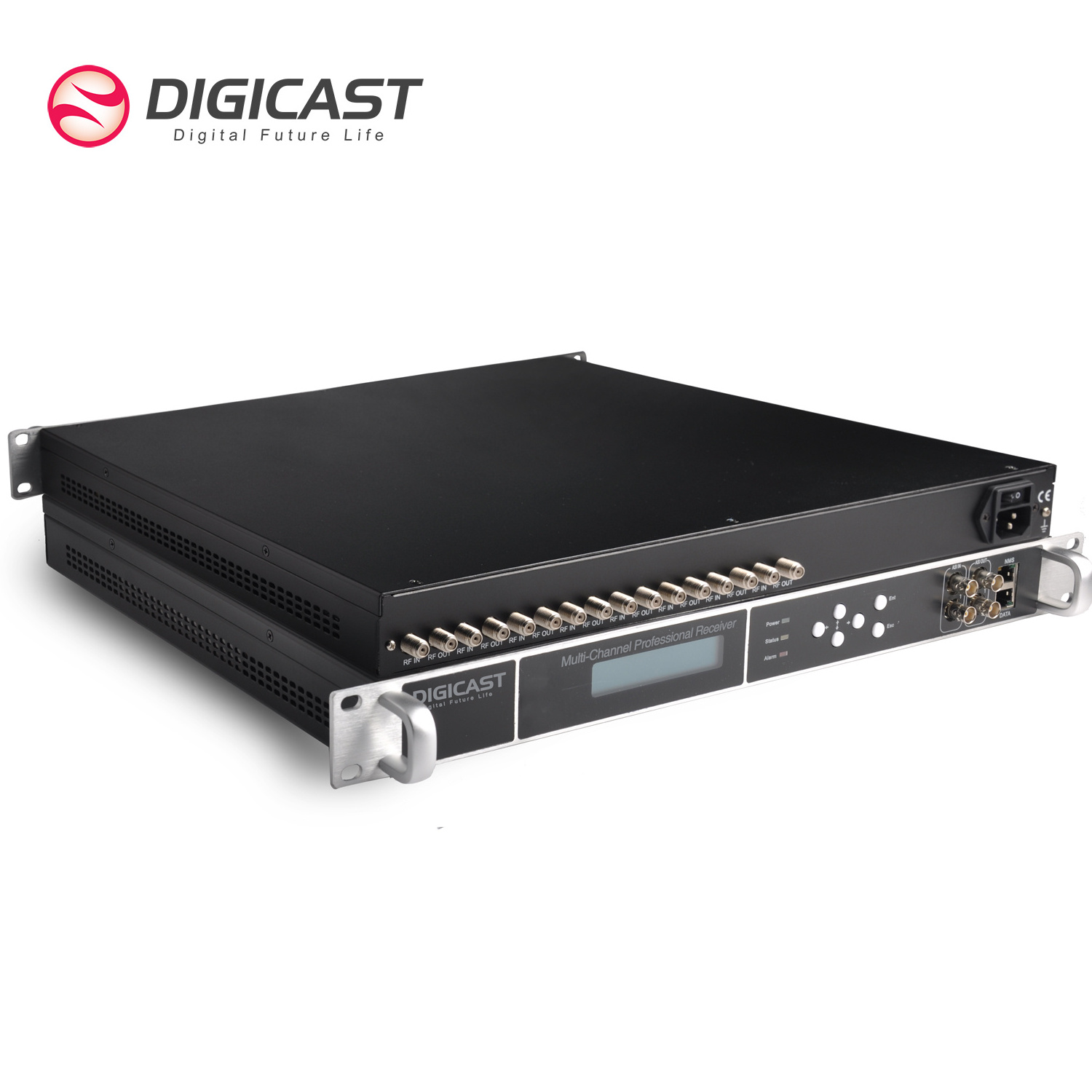

DMB-90E Series
4/8/12/16/20/24 Channels professional Receiver
, 4 Tuners ports per module, Up to 6 Modules in Back panel. It is integrated with tuner demodulation, which can demodulate from 4/8/12/16/20/24 tuners, then output the IP package through different IP address and ports. The Tuners support
DVB-S/S2/T/T2/C/ISDB-T/ ATSC-T
optional input, demodulate to TS and encapsulated output IP packet, IP Output Port by
256*SPTS and 4*MPTS
channels. Meanwhile, it support
2*ASI
independent input & output.
This is an ideal solution for environments where you have a large number of air Channel, and widely used in IPTV System, Hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of Source signals convert to Cable TV broadcast System, largely cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction. Being the ideal multi-channel professional receiver used for FTA (free to air) IP signal source capture from digital tuner.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-90E
-
IP output option:
-
256*SPTS or 4*MPTS
-
Tuner Input:
-
up to 24 Tuners
-
Nature:
-
Tuner to IP Gateway
-
Capability:
-
multiplexing and demodulating
-
Appliaction:
-
DVB/IPTV headend
-
Support1:
-
LCN (Logical Channel Number)
-
Support2:
-
PCR correct and PCR interval adjusting
-
ASI:
-
2*ASI output & input
-
Management:
-
web
-
IP protocol:
-
DVB-S/S2/T/T2/C/ISDB-T/ ATSC-T
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-90E
-
IP output option:
-
256*SPTS or 4*MPTS
-
Tuner Input:
-
up to 24 Tuners
-
Nature:
-
Tuner to IP Gateway
-
Capability:
-
multiplexing and demodulating
-
Appliaction:
-
DVB/IPTV headend
-
Support1:
-
LCN (Logical Channel Number)
-
Support2:
-
PCR correct and PCR interval adjusting
-
ASI:
-
2*ASI output & input
-
Management:
-
web
-
IP protocol:
-
DVB-S/S2/T/T2/C/ISDB-T/ ATSC-T
Top Selling
Contact Us
|
Contact Person
|
Lisa Lee
|
|
|
||
|
Email
|
service(at)digicast.cn
|
|
|
||
|
Skype
|
service(at)digicast.cn
|
|
|
||
|
Mobile/Whatsapp/Wechat
|
+86 18167118312
|
|
|
||
Product Description
24-CH Professional Receiver
HighLights
Multi-channel Tuners input: The Tuners support
DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T/Tb,ATSC-T,DTMB
input
for option, IP stream output by 256*SPTS or 4*MPTS
Operation via LCD Screen and Web Management: Easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.
Features
Tuner input:
Up to 24 FTA Tuners input
Tuner standard option:
DVB-S/S2,DVB-T/T2, DVB-C, DTMB, ISDB-T/Tb,
ATSC, 4 Tuners per module, Up to 6 Modules.
Two separate ASI input for External TS Multiplexing
Two separate ASI output
IP stream output:
4*MPTS and 256*SPTS
Output IP protocol:
UDP/RTP
the Value of PCR PID can set same as Video PID
support LCN (Logical Channel Number)
PID Remapping & Filtering
Low cost headend receiver for IPTV OTT System
Superior Shoulders and Excellent modulation
quality MER
Easy-to-Use System Management via Web
PSI/SI editing & inserting
Low power consumption and high reliability with
MTBF(Mean Time Between Failure) ≦87600 Hours
Highly compact , High-Integrate
Support PCR correct and PCR interval adjusting
24*7 hours working stable, broadcasting quality
Application
Option
|
DMB-90E Series
|
Tuner Input
|
IP Output
|
||
|
DMB-90E-4
|
4
|
256*SPTS/4*MPTS
|
||
|
DMB-90E-8
|
8
|
256*SPTS/4*MPTS
|
||
|
DMB-90E-12
|
12
|
256*SPTS/4*MPTS
|
||
|
DMB-90E-16
|
16
|
256*SPTS/4*MPTS
|
||
|
DMB-90E-20
|
20
|
256*SPTS/4*MPTS
|
||
|
DMB-90E-24
|
24
|
256*SPTS/4*MPTS
|
||
|
Tuners standard
: DVB-S/S2/DVB-T/T2/ATSC/DVB-C/ISDB-T/DTMB input for option
|
|
|
||
Related
|
Function
|
Model number
|
Main features
|
|
|
Headend receiver
|
DMB-9004CIA
|
Input: 4*Tuner(DVB-S/S2/T2/T/C)+1*ASI in (de-mux)+4*IP(GigE, de-mux); 4*CI decryption.
Output: 4+4*ASI+IP(GigE,4*MPTS or 48*SPTS with UDP/RTP/RTSP) |
Not all channels are FTA, DMB-9004CIA for encryption channels sources
|
|
IPTV Transcoder
|
DMB-8000
|
UDP/RTMP/RTSP/HLS, MPEG2 to H264, H265 Exchange, Reduce bitrate, resolution
|
IPTV OTT Project
|
|
IPTV Streaming Server
|
ISS-7000
|
Change the IP protocol up to 100 channels (only change IP protocol)
|
IPTV OTT Project
|
|
Distributing Streaming Server
|
ISS-9000
|
Concurrence to 1K/10K users
|
IPTV OTT Project
|
|
Universal Streaming Server
|
USS-9000
|
Concurrence max to 600 users, all in one integrate IPTV management software
|
Hotel, School and other small IPTV project
|
