Quick Details
-
Brand Name:
-
Wanzhong
-
Model Number:
-
WZ-2500A
-
Weight (KG):
-
3500
-
Power (kW):
-
4
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Line Wire Space:
-
50-250mm
-
Cross Wire Space:
-
50-250mm
-
Wire Diameters:
-
3.0-6.0mm
-
Usage:
-
produce 3d fence
-
Max Mesh Width:
-
2500/3000mm
-
Function:
-
RESISTANCE WELDING
-
Power:
-
6*125KVA
-
Welding Speed:
-
0-60times/min
-
Certification:
-
ISO9001:2008
Quick Details
-
Wire Diameter (mm):
-
3 - 6 mm
-
Production Capacity:
-
40sets
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Wanzhong
-
Model Number:
-
WZ-2500A
-
Weight (KG):
-
3500
-
Power (kW):
-
4
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Line Wire Space:
-
50-250mm
-
Cross Wire Space:
-
50-250mm
-
Wire Diameters:
-
3.0-6.0mm
-
Usage:
-
produce 3d fence
-
Max Mesh Width:
-
2500/3000mm
-
Function:
-
RESISTANCE WELDING
-
Power:
-
6*125KVA
-
Welding Speed:
-
0-60times/min
-
Certification:
-
ISO9001:2008

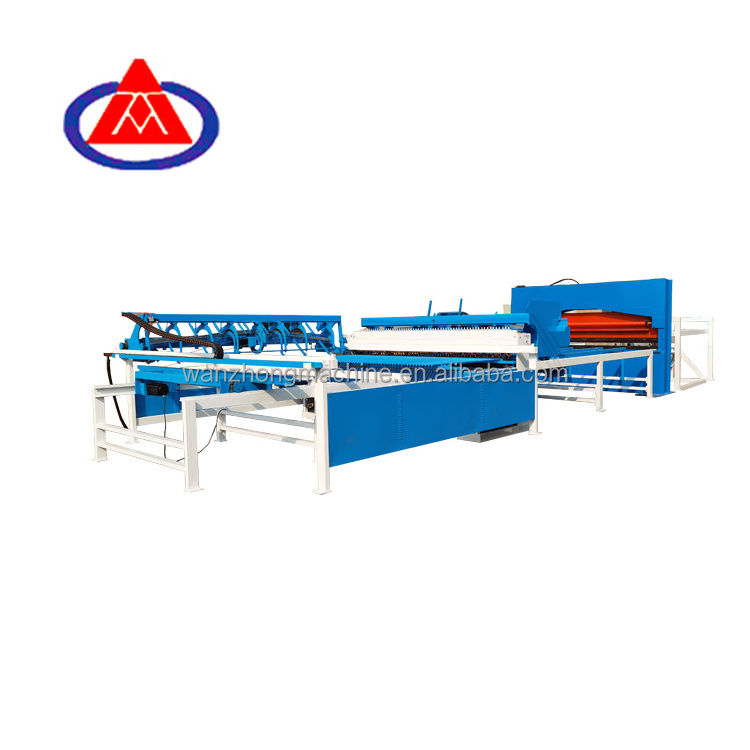

hot sales high quality full automatic bending 3d fence panel mesh welding machine price
| Wire Diameter | 3.0-6.0mm |
| Welding Points | 48/60 |
| Width of mesh | max 2500mm/3000mm |
| Line Wire Space | 50-250mm |
| Cross Wire Space | 50-250mm |
| Mesh produced form | in panel |
| Welding Speed | 50-70cross wires / min |
| Transformer | 125KVA*6(water cooling system) |
| Weight | 3500KGS |
| Voltage | 380V,50Hz,three phrase |
| Feeding cross wire | step motor hopper |
| Dimension | 55*5.2*1.8m |
| Welding time | 10ms~100ms |
Function features and advantages
1.Our fence mesh welding machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .
2. Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the cross wire will fallen automatic al ly from the hopper.
3. Our transformers adopt s big power at 125KVA every one, which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.
4. The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
5.Equipped with fence bending machine can produce 3D fence panel,this fence quality is best fence products in the markets.
That's to say,the 3d fence mesh welding machine includes:
Fence Mesh Welding Machine
Wire Straightening And Cutting Machine
Fence Plate Bending Machine
The Whole Machine Production and Adjustment Procession:
The machine is working in our client's factory:
