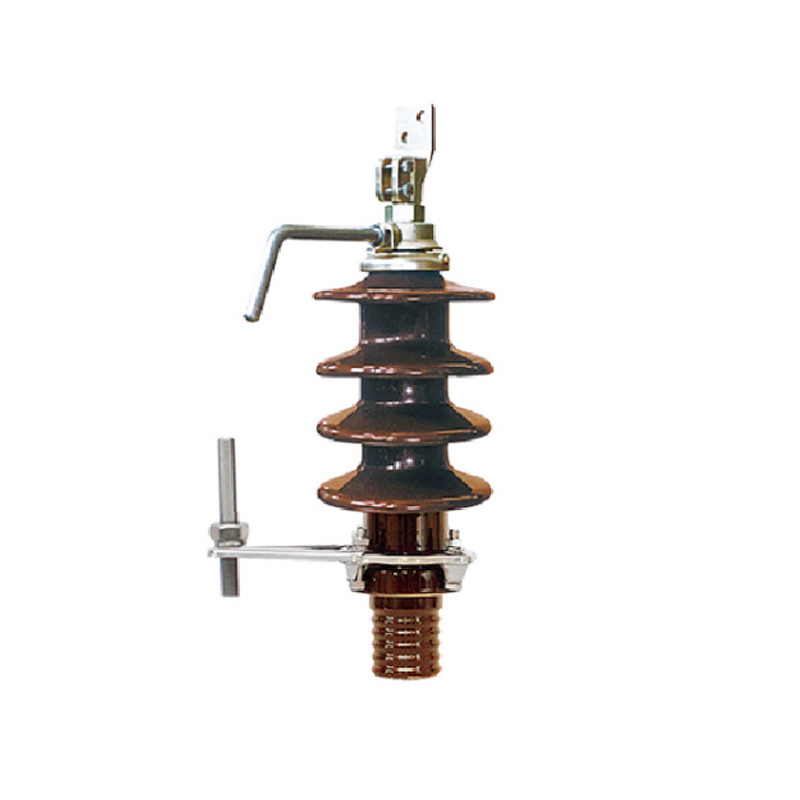

Din Standard Bushing Insulator Porcelain Bushing with Lightning Rod

Din Standard Bushing Insulator Porcelain Bushing with Lightning Rod

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: insulation bushing

Application:: 3 kV and 35 kV

Tensile Strength:: other

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: leadwin

Model Number:: DIN-12/1000

Type:: insulation bushing

Application:: 3 kV and 35 kV

Tensile Strength:: other

Product Description

Sequence Number	Code	Model	Dimensions										Opening	Arcing distance	Creep distance	Shield	Weight
Sequence Number	Code	Model	H	h2	h3	d4	t	Md	d1	d3	E	C	d0	h1	Creep distance	Shield	(kg)
1	AM.DDF.001	DIN-12/1000	637	175	85	100	10	M30×2	170	108	225	85	115	166	340	2 single umbrella	18
2	AM.DDJ.001	DIN-12/2000	737	205	115	120	15	M42×3	170	131	235	85	135	167	350	2 single umbrella	23
3	AM.DDL.001	DIN-12/3150	772	215	125	120	15	M48×3	170	131	235	85	135	167	350	2 single umbrella	29
4	AM.DFF.001	DIN-24/1000	722	185	85	100	10	M30×2	185	108	225	155	115	241	500	3 single umbrella	18
5	AM.DFJ.001	DIN-24/2000	822	215	115	120	15	M42×3	210	131	235	155	135	242	500	3 single umbrella	29
6	AM.DFL.001	DIN-24/3150	857	225	125	120	15	M48×3	210	131	235	155	135	242	500	3 single umbrella	33
7	AM.DGF.001	DIN-36/1000	852	210	85	100	10	M30×2	175	108	225	220	115	346	640	4 single umbrella	22
8	AM.DGJ.001	DIN-36/2000	952	240	115	120	15	M42×3	230	131	235	220	135	347	750	4 single umbrella	35
9	AM.DGL.001	DIN-36/3150	987	250	125	120	15	M48×3	230	131	235	220	135	347	750	4 single umbrella	40
10	AM.DJF.001	DIN-52/1000	1012	280	100	120	10	M30×2	250	131	——	——	135	432	950	6 single umbrella	36
11	AM.DJJ.001	DIN-52/2000	1112	310	130	120	15	M42×3	250	131	——	——	135	432	950	6 single umbrella	45
12	AM.DJL.001	DIN-52/3150	1147	320	140	120	15	M48×3	250	131	——	——	135	432	950	6 single umbrella	50

The HV series with the widest range of available designs and customizations. This bushing type is widely used for insulating power transformers on the low-voltage side in both indoor and outdoor applications.

The HV series are solid porcelain liquid filled (hollow core oil communicating) designed in accordance with the standards EN 50180 and EN 50243 (formerly DIN 42531-2-3-4 & 42541).

Transformer oil fills the space between the conductor (a rigid cylindrical copper stem) and the porcelain, increasing the electrical insulation and dissipating the thermal energy generated by the high current.

Featuring an extensive range of available customizations, the HV bushing can be manufactured according to almost any kind of customer requirement (i.e. rod extension, special connectors, special finish surface, etc.)

Designed for both indoor and outdoor applications, the HV bushing series can even operate under extreme environmental conditions (i.e. very polluted areas, very cold/hot ambient temperatures, very corrosive/aggressive environments, etc.).
