Quick Details
-
Brand Name:
-
ZHELE
-
Model Number:
-
ZHQ6-100/4P
-
Rated Current:
-
100A
-
Frame current:
-
100
-
name:
-
Dual power automatic transfer switch
-
model number:
-
ZHQ6-100/4P/3P
-
Certification:
-
CCC,CE
-
Insulation Voltage:
-
AC400V
-
Operation method:
-
automatic / manual
-
Conversion time:
-
≤2s
-
electric current:
-
16~3200A
-
Electrical grade:
-
PC class
-
frequency:
-
50Hz
-
Conversion method:
-
ATSE
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
ZHEJIANG
-
Brand Name:
-
ZHELE
-
Model Number:
-
ZHQ6-100/4P
-
Rated Current:
-
100A
-
Frame current:
-
100
-
name:
-
Dual power automatic transfer switch
-
model number:
-
ZHQ6-100/4P/3P
-
Certification:
-
CCC,CE
-
Insulation Voltage:
-
AC400V
-
Operation method:
-
automatic / manual
-
Conversion time:
-
≤2s
-
electric current:
-
16~3200A
-
Electrical grade:
-
PC class
-
frequency:
-
50Hz
-
Conversion method:
-
ATSE

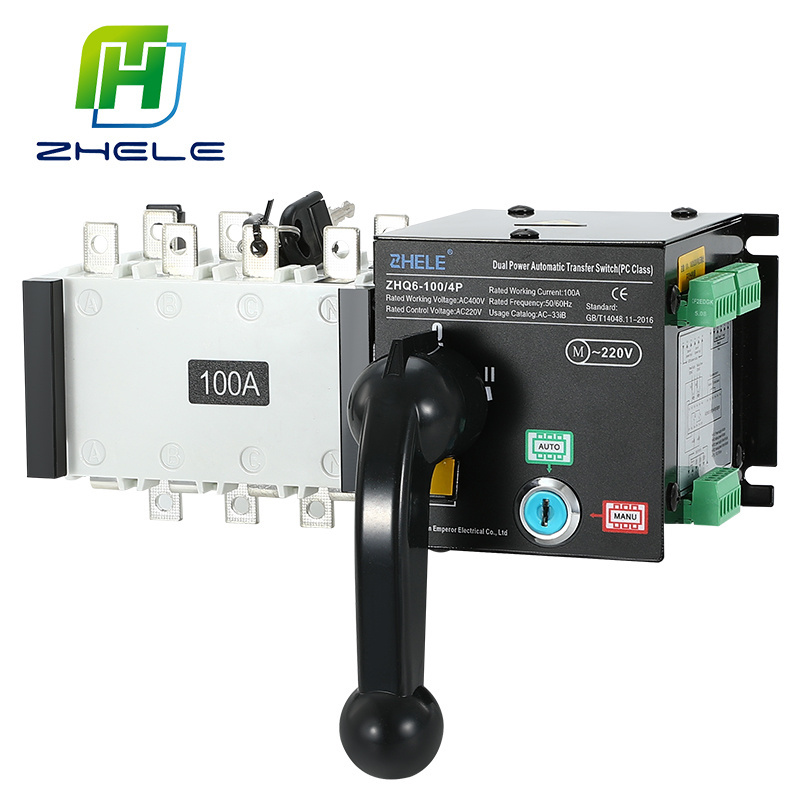

Factory Price ATS Automatic Change Over Switch 100A/3P 4P Automatic Transfer Switch ATS for Diesel Generator
ZHQ6 IEC, CCC, CE 100A to 3200A 3 phase automatic changeover switch automatic transfer switch automatic change over switch Application
(1)ZHQ6 series Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 380V, rated voltage AC 220V, Rated current 16A-3200A.
(2)Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over. At the same time, it can operated under un-frequency on and off circuit act as disconnector.
(3)Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building, etc, where doesn't allow power off.
|
Rated current |
20A | 40A | 63A | 80A | 100A | 125A | 160A | 250A | 400A | 630A | 800A | 1000A | 1250A | 1600A | |
|
Rated insulation voltage Ui |
750V | 1000V | |||||||||||||
|
Rated impulse withstand voltage Uimp |
8kv | 12kv | |||||||||||||
|
Rated working voltage Ue |
AC400V | ||||||||||||||
|
Rated working current Ie |
AC-31A | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| AC-35A | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1000 | 1600 | |
| AC-33A | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 250 | 400 | 400 | 630 | 800 | 800 | 1000 | |
|
Rated making capacity |
10le | ||||||||||||||
|
Rated breaking capacity |
8le | ||||||||||||||
|
Rated limiting short-circuit power supply Is |
50kA | 70KA | 100KA | 120KA | |||||||||||
|
Rated short time withstand voltage Is |
7KA | 9KA | 13KA | 26KA | 50KA | ||||||||||
|
Conversion time I-II or II-I |
0.45s | 0.6s | 1.2s | ||||||||||||
|
control voltage |
DC24V,48V,110V, AC220V | ||||||||||||||
|
Rated power |
Start | 300W | 325W | 335W | 400W | 440W | |||||||||
| Normal | 55W | 62W | 74W | 90W | 95W | ||||||||||
