Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
China
-
Model Number:
-
Evacuated Tube Solar Water Heaters
-
Product name:
-
Heat Pipe Solar Water Heater
-
Pressure:
-
Unpressurized Solar Hot Water
-
Outer tank:
-
Galvanized Steel
-
Frame:
-
Galvanised Steel
-
Tube:
-
SS-AL
-
Solar collector:
-
Three Target Vacuum Tubes
-
Heat Source:
-
Solar Heat Energy
Quick Details
-
Warranty:
-
3 years
-
Application:
-
Hotel, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
China
-
Model Number:
-
Evacuated Tube Solar Water Heaters
-
Product name:
-
Heat Pipe Solar Water Heater
-
Pressure:
-
Unpressurized Solar Hot Water
-
Outer tank:
-
Galvanized Steel
-
Frame:
-
Galvanised Steel
-
Tube:
-
SS-AL
-
Solar collector:
-
Three Target Vacuum Tubes
-
Heat Source:
-
Solar Heat Energy

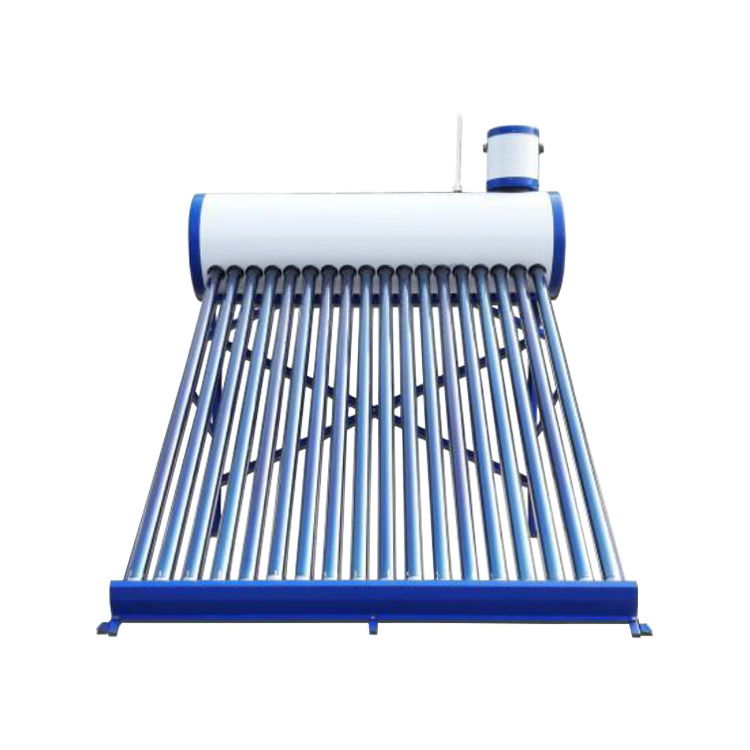

High efficiency 100 150 200 300 liter unpressurized solar hot water heaters for heating system
The details of meterial:
Outer tank: Galvanized steel/Colorful steel/SUS Inner tank:SUS 304-2B
Vacuum tube:3-target all glass tube Absororption coating:AL-SS/CU
Frame:Galvanized steel/Aluminum alloy/SUS
| Capacity(L) | Lighting Area(m2) | Vacuum tube(pcs) |
Loading Qty 20’/40’HQ |
| 100 | 0.93 | 58*1800*10 | 48/105 |
| 150 | 1.4 | 58*1800*15 | 40/100 |
| 200 | 1.86 | 58*1800*20 | 37/86 |
| 250 | 2.33 | 58*1800*25 | 31/77 |
| 300 | 2.79 | 58*1800*30 | 23/64 |
The details of meterial:
Outer tank: SUS 304-2B stainless Steel sheet Inner tank:SUS 304-2B stainless Steel sheet Vacuum tube:3-target all glass tube Absororption coating:AL-SS/CU
Frame: Stainless Steel /Aluminum alloy
Parameter table
| Capacity(L) | Lighting Area(m2) | Vacuum tube(pcs) | Loading Qty 20’/40’HQ |
| 100 | 0.93 | 58*1800*10 | 48/105 |
| 150 | 1.4 | 58*1800*15 | 40/100 |
| 200 | 1.86 | 58*1800*20 | 37/86 |
| 250 | 2.33 | 58*1800*25 | 31/77 |
| 300 | 2.79 | 58*1800*30 | 23/64 |
Outer tank: Galvanized steel/ Stainless Steel
Inner tank:Food grade SUS304-2B stainless steel Insulation: High density polyurethane foam
Vacuum tube: Borosilicate glass 3.3 with SS-CU-ALN coating Heat pipe:All copper Tu1
Frame: Galvanized steel /Stainless Steel /Al
Parameter table
| Capacity(L) | Aperture Area(m2) | Vacuum tube(pcs) | Loading Qty 20’/40’HQ |
| 100 | 1.21 | 58*1800*10 | 75/178 |
| 150 | 1.815 | 58*1800*15 | 54/128 |
| 200 | 2.42 | 58*1800*20 | 39/92 |
| 240 | 2.904 | 58*1800*24 | 36/84 |
| 300 | 3.63 | 58*1800*30 | 29/69 |
Features
1) Use the heat pipe for the heat conduction and can get a highheat absorption efficiency and rapid heat transfer.
2) The pipeline is made of red copper and conducted by heat transfer medium liquid; the crust uses aluminum alloy module material of high strength with airflow design.
3) Good anti-frozen performance, it can still work under the environmental 0f -30℃.
4) Match with intelligent controller and assistant electric heater, the system can provide hot water to you any time.
5) The insulation layer uses polyurethane bulk bubble and has a good effected temperature preservation.
6) Can be used for bathing, washing and domestic heating.
Specification
Outer tank: Galvanized steel 0.5 mm
Inner tank:SUS 2B 1.0 mm-2.5 mm
Capacity: 80L-1000L
Collector: Heat pipe vacuum tube solar collector. Insulation: 50mm-60mm 42kg s/m3 Polyurethane foam Frame: 1.8mm thickness Galvanized steel
Heat preservation: 96 hours
Working pressure: 7 bar
