Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HL
-
Model Number:
-
Fan Size 1460*1460
-
Voltage:
-
110V-430V
-
Warranty:
-
Motor warranty 2 years
-
Product name:
-
Exhaust fan
-
Size:
-
1460*1460 50inches
-
Color:
-
White
-
Fan type:
-
Wall Air Fan
-
function:
-
Exhaust air, Cool down
-
Air volume:
-
42000
-
Usage:
-
Exhaust Ventilation .Placed
-
Motor:
-
100% pure copper wire
-
certificate:
-
CCC/CEISO9001
-
MOQ:
-
1 set
Quick Details
-
Applicable Industries:
-
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company
-
Electric Current Type:
-
AC
-
Mounting:
-
FREE STANDING
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HL
-
Model Number:
-
Fan Size 1460*1460
-
Voltage:
-
110V-430V
-
Warranty:
-
Motor warranty 2 years
-
Product name:
-
Exhaust fan
-
Size:
-
1460*1460 50inches
-
Color:
-
White
-
Fan type:
-
Wall Air Fan
-
function:
-
Exhaust air, Cool down
-
Air volume:
-
42000
-
Usage:
-
Exhaust Ventilation .Placed
-
Motor:
-
100% pure copper wire
-
certificate:
-
CCC/CEISO9001
-
MOQ:
-
1 set

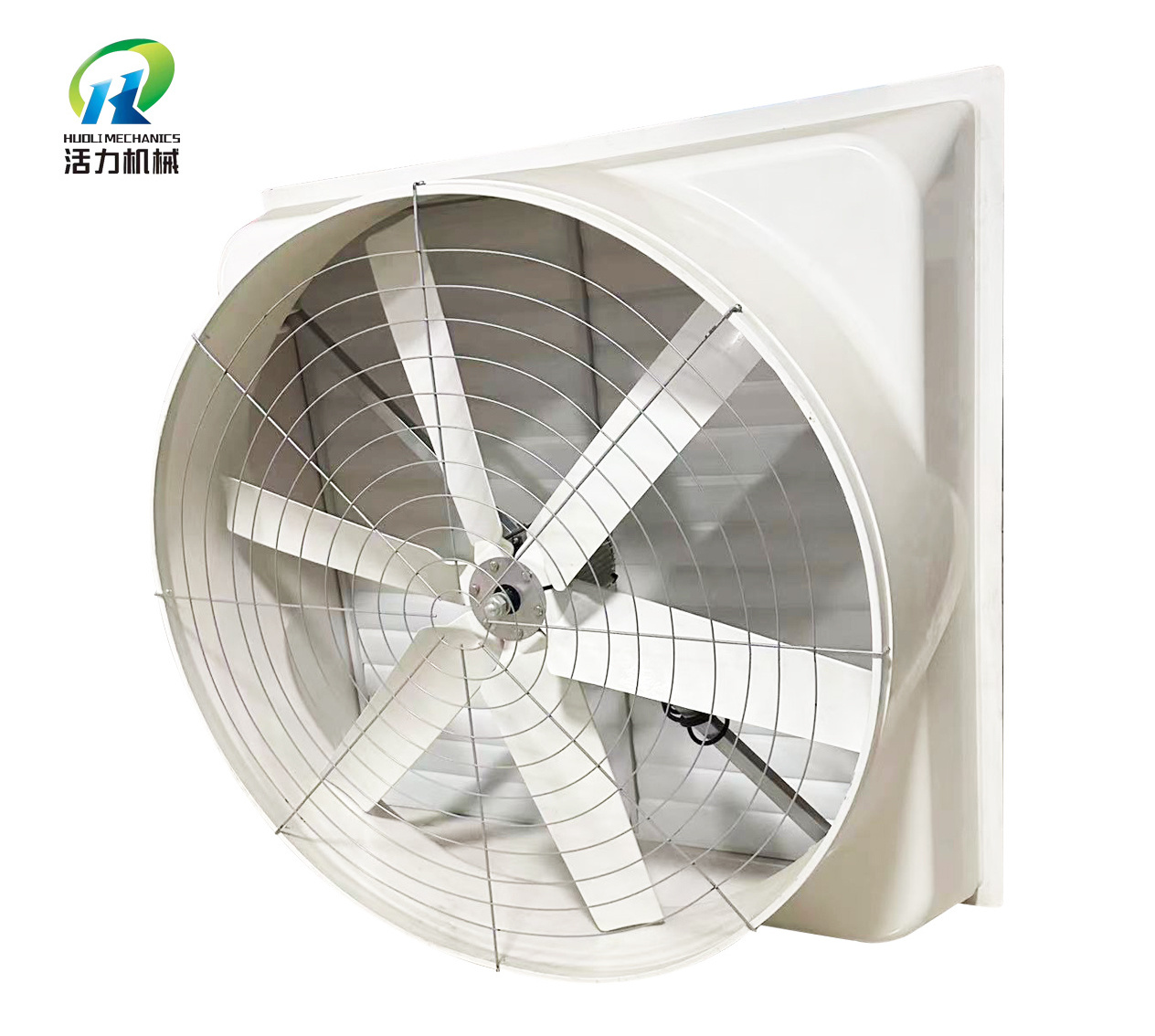

Product Description
Fiberglass Blade design.
As the most important spare parts of the fan, the special design of the fiberglass blade will make big air capacity
fiberglass 50 inch exhaust fan with cone for factory workshop Climate control system
As the most important spare parts of the fan, the special design of the fiberglass blade will make big air capacity
fiberglass 50 inch exhaust fan with cone for factory workshop Climate control system
Details Images
SMC fiberglass shell
The shell is made of fiberglass, resin,and some other ingredient,high strength and corrosion resistance
36/50 inch FRP cone exhaust fan, greenhouse poultry automatic shutter fiberglass fan with CE certification
The shell is made of fiberglass, resin,and some other ingredient,high strength and corrosion resistance
36/50 inch FRP cone exhaust fan, greenhouse poultry automatic shutter fiberglass fan with CE certification
Three kinds of the supporting
Galvanized steel supporting; Stainless steel Supporting; Fiberglass steel supporting
Galvanized steel supporting; Stainless steel Supporting; Fiberglass steel supporting
Shutters
PVC Shutters, corrosion resistant, anti-aging.
High quality material available.
PVC Shutters, corrosion resistant, anti-aging.
High quality material available.
The wind blade is made of advanced SMC molding, grated molding
Motor
America Legal brand motor
German Siemens brand motor
Chinese Nosch brand motor
America Legal brand motor
German Siemens brand motor
Chinese Nosch brand motor
|
Technical Data:
|
|
|
|
|
|
|
||||
|
Model
|
Air Flow (m³/h)
|
Blades Diameter
|
Blade speed
|
Number of blades
|
Fan size
|
Mounting hole dimension
|
||||
|
HLA-1460*1.5/1.1
|
38000
|
1250mm
|
550
|
6
|
1460*1460
|
1400*1400
|
||||
|
HLA-1260/0.75
|
32000
|
1080mm
|
550
|
6
|
1260*1260
|
1200*1200
|
||||
|
HLA-1060/0.55
|
22000
|
900mm
|
550
|
6
|
1060*1060
|
1000*1000
|
||||
|
HLA-850/0.37
|
12000
|
650mm
|
710
|
6
|
850*850
|
800*800
|
||||
|
HLA-660/0.37
|
6000
|
480mm
|
1400
|
3
|
660*660
|
600*600
|
||||
|
HLA-560/0.25
|
5000
|
380mm
|
1400
|
3
|
560*560
|
500*500
|
||||
Certificate
ShanDong HuoLi
Company have International authority certified, Trustworthy
ShanDong HuoLi
Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"
Workshop
Delivery
Installation
Our Service
ShanDong HuoLi
Company
has 10+ years of professional design and production experience, more than 100 efficient R & D and production team.
ShanDong HuoLi
Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous
improvement in communication with customers
improvement in communication with customers
Many customers from all over the world come to visit our company every year. Our company is highly praised by customers
Main Product
We can customize the products according to the requirements of the customers, and operate the industry for many years.
We uphold high cost performance and provide you with quality products.
