Quick Details
-
Brand Name:
-
SMIT
-
Model Number:
-
LWQ
-
Materia:
-
SS304
-
DN range (mm):
-
DN40-DN500
-
Output:
-
pulse/current4-20Am/RS-485/Hart
-
Accuracy:
-
1.5%
-
Flow range (mm):
-
2.5-3500
-
Power supply:
-
24VDC, 3.6V battery power supply
-
Medium temperature:
-
-20~80 (centigrade)
-
Environment temperature:
-
-20~50 (centigrade)
-
Atmospheric pressure:
-
86-106KPa
-
Nominal Pressure:
-
1.6-42 MPa
Quick Details
-
Type:
-
Variable Area Air & Gas Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SMIT
-
Model Number:
-
LWQ
-
Materia:
-
SS304
-
DN range (mm):
-
DN40-DN500
-
Output:
-
pulse/current4-20Am/RS-485/Hart
-
Accuracy:
-
1.5%
-
Flow range (mm):
-
2.5-3500
-
Power supply:
-
24VDC, 3.6V battery power supply
-
Medium temperature:
-
-20~80 (centigrade)
-
Environment temperature:
-
-20~50 (centigrade)
-
Atmospheric pressure:
-
86-106KPa
-
Nominal Pressure:
-
1.6-42 MPa

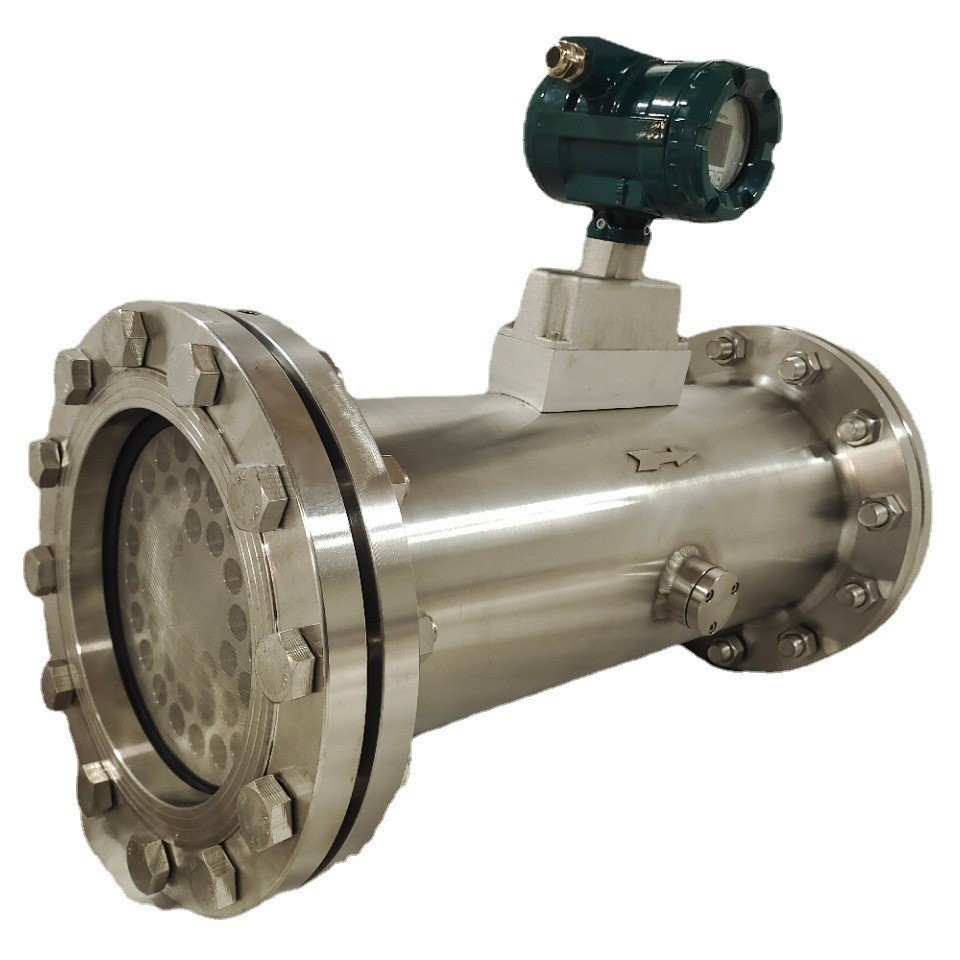

Gas turbine flowmeter is mainly used for flow measurement of medium fluids such as air, nitrogen, oxygen, hydrogen, natural gas in industrial pipelines.
Main technology data
|
Materia: |
Aluminum alloy/cast steel/stainless steel |
|
DN range (mm): |
DN40-DN250 |
|
Output: |
pulse/current4-20Am/RS-485/Hart |
|
Accuracy: |
1.0% 1.5% |
|
Medium: |
Air, nitrogen, oxygen, hydrogen, methane, natural gas, steam and other low - and medium-velocity clean gases |
|
Flow range (mm): |
2.5-3500 |
|
Power supply: |
24VDC, 3.6V battery power supply |
|
Medium temperature : |
-20~80 (centigrade) |
|
Environment temperature : |
-20~50 (centigrade) |
|
Atmospheric pressure: |
86-106KPa |
|
Nominal Pressure: |
1.6 – 42 MPa |
|
Anti-Explosion Grade: |
IbIIBT4 |
|
Connection type: |
Flanged |
Product specification
|
|
I nside nominal diameter DNmm |
Startup flow rate m³/h |
Flow rate m³/h |
Nominal Pressure MPa |
Installation type |
Long mm |
H igh mm |
|
LWQ—40XL LWQ—40XH |
40 |
1.8 2.5 |
2.5-50 5-100 |
1.6 2.5 4.0 6.3 10 16 26 42 |
screw thread flange |
140 200 |
250 |
|
LWQ—50XL LWQ—50XH |
50 |
2.5 5 |
5-100 10-200 |
flange |
200 |
300 |
|
|
LWQ—80XL LWQ—80XH |
80 |
6 10 |
10-240 20-480 |
flange |
200 |
350 |
|
|
LWQ—100XL LWQ—100XH |
100 |
8 12 |
12-360 27-720 |
flange |
220 |
400 |
|
|
LWQ—150XL LWQ—150XH |
150 |
10 15 |
35-1000 50-2000 |
flange |
300 |
450 |
|
|
LWQ—200XL LWQ—200XH |
200 |
35 60 |
60-1500 100-4000 |
flange |
300 |
450 |
|
|
LWQ—250XL LWQ—250XH |
250 |
40 |
75-3500 |
flange |
400 |
500 |
Circular converter and dimensions
Rectangular converter and dimensions
Features
(1) the measuring range is wide, the lower limit flow rate is lower than 0.5m/s, the pressure loss is small, and the impeller has strong impact resistance;
(2) with high anti-electromagnetic interference and anti-vibration ability, the use of full seal isolation protection self-lubricating shaft
Bearing and storing oil pot, reliable performance and long working life;
(3) using advanced ultra-low power consumption single chip microcomputer technology, the machine features strong, low power consumption, superior performance, with nonlinear precision compensation function of the intelligent flow display.The accuracy of the modified formula is better than 0.02%.
(4) the instrument coefficient can be set online by pressing the button and displayed on the LCD screen.LCD screen intuitive and clear, high reliability;
(5) pressure compensation can be carried out under the stable pressure state of the measured gas.
