Quick Details
-
Rated Voltage:
-
10KV
-
Tensile Strength:
-
70KN
-
Product name:
-
electrical rubber bushing 6kv 11kv strain polymer insulator
-
Standard:
-
ISO9001:2015
-
Usage:
-
Electrice Power
-
Free Sample:
-
Available
-
OEM:
-
Available
-
Feature:
-
Vulcanization
-
Inner material:
-
Stainless steel,external galvaning
-
End fitting type:
-
Tension type
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RUYi
-
Model Number:
-
FNB-10/70
-
Rated Voltage:
-
10KV
-
Tensile Strength:
-
70KN
-
Product name:
-
electrical rubber bushing 6kv 11kv strain polymer insulator
-
Standard:
-
ISO9001:2015
-
Usage:
-
Electrice Power
-
Free Sample:
-
Available
-
OEM:
-
Available
-
Feature:
-
Vulcanization
-
Inner material:
-
Stainless steel,external galvaning
-
End fitting type:
-
Tension type
OVERVIEW:

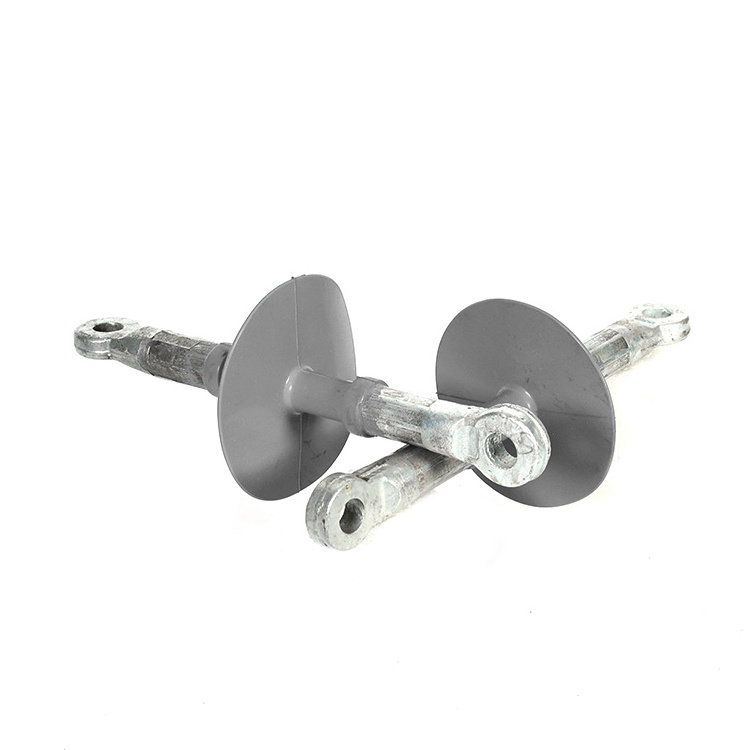

Composite polymer insulator is composed of epoxy glass fiber core rod, silicon rubber shed and metal parts.
Composite polymer insulator is of high strength and light weight. A synthetic insulator is 1/5 of that of porcelain insulator, but the circum-tensile strength of insulator is very high. Generally, it can be above 6000mpa.
Its umbrella skirt is an organic polymer structure of silicone rubber.Therefore, it has a strong anti-pollution performance.
The product has reliable structure and will not damage the core rod. It belongs to the rod-shaped insulation structure.
| Product Specification | ||||||||
|
Product code |
Rated voltage (KV) |
Rated mechanical load (KN) |
Diameter and the No. of the sheds |
nomical structure height(mm) |
Insulation distance (mm) |
Minimum nominal creepage distance (mm) |
Full-wave impulse impulse withstand voltage (KV) |
1 min wet Power frequency withstand voltage (KV) |
|
FNB4-1/70-XX |
1~3 |
70 |
92*2 |
270 |
80 |
235 |
30 |
7 |
|
FNB4-6/70-XX |
6 |
70 |
92*3 |
310 |
120 |
335 |
60 |
25 |
|
FNB4-10/70-XX |
10 |
70 |
92*4 |
350 |
160 |
435 |
95 |
45 |
|
FNB4-15/70-XX |
15 |
70 |
92*5 |
390 |
200 |
535 |
110 |
60 |
|
FNB4-20/70-XX |
20 |
70 |
92*6 |
430 |
240 |
635 |
130 |
70 |
|
FNB4-24/70-XX |
24 |
70 |
92*7 |
470 |
280 |
735 |
150 |
75 |
|
FNB4-28/70-XX |
28 |
70 |
92*8 |
510 |
320 |
835 |
180 |
85 |
|
FNB4-33/70-XX |
33 |
70 |
92*9 |
550 |
360 |
935 |
205 |
90 |
|
FNB4-35/70-XX |
35 |
70 |
92*10 |
590 |
400 |
1035 |
230 |
95 |
