- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YOUJU
-
Voltage:
-
380V or according to your need
-
Power:
-
11.75 KW
-
Dimension(L*W*H):
-
1900*850*1850mm
-
Weight:
-
1800 kg
-
Warranty:
-
1 year
-
model:
-
YJ V reinforced concrete pipe making machine
-
moulding cycle:
-
5-10 min
-
speed of main shaft:
-
45r/min
-
reducer rate:
-
1:5.8
-
Max. length:
-
within 1M
-
After-sales Service Provide:
-
Online support, Video technical support
-
motor:
-
Siemens motor/China famous brand motor
-
Thickness:
-
customized
-
Diameter:
-
200-1000mm
-
color:
-
Blue/Red/White/Grey/Yellow to your need
Quick Details
-
Pipe Material:
-
CONCRETE
-
Marketing Type:
-
New product 2022
-
Production Capacity:
-
30-100pcs/8 hours
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YOUJU
-
Voltage:
-
380V or according to your need
-
Power:
-
11.75 KW
-
Dimension(L*W*H):
-
1900*850*1850mm
-
Weight:
-
1800 kg
-
Warranty:
-
1 year
-
model:
-
YJ V reinforced concrete pipe making machine
-
moulding cycle:
-
5-10 min
-
speed of main shaft:
-
45r/min
-
reducer rate:
-
1:5.8
-
Max. length:
-
within 1M
-
After-sales Service Provide:
-
Online support, Video technical support
-
motor:
-
Siemens motor/China famous brand motor
-
Thickness:
-
customized
-
Diameter:
-
200-1000mm
-
color:
-
Blue/Red/White/Grey/Yellow to your need

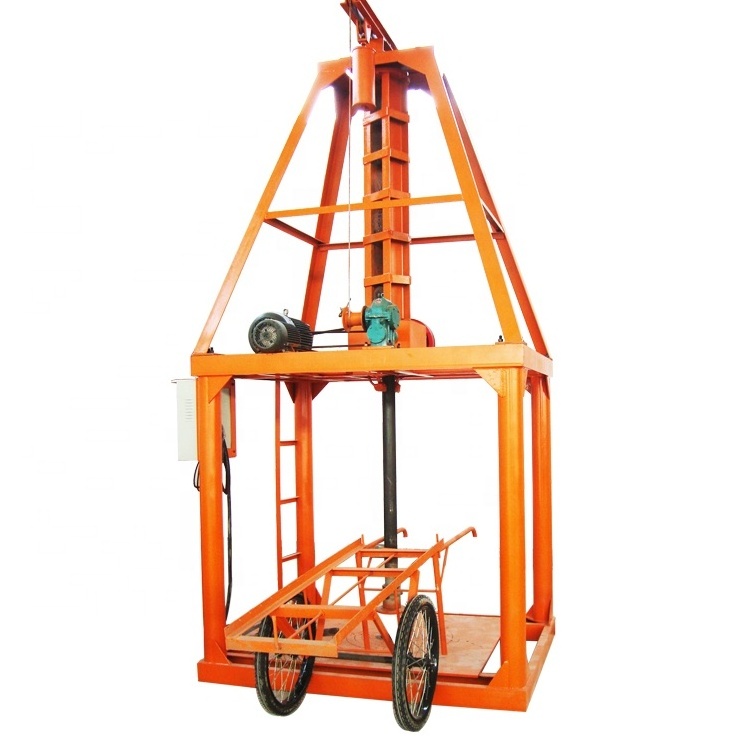

LY-V Culvert Cement Pipe Making Machine to Make Flat Joint and socket joint Concrete pipe
|
Application |
Drain Pipe |
|
Speed of main shaft |
45rolls/min |
|
Moulding cycle |
5-10 min |
|
used in |
agricultural irrigation, urban water supply |
|
Overall dimenstion |
1840*1700*4000mm |
|
Reducer rate |
1000mm |
|
Whole power |
11.75kw (motor:7.5kw) |
|
Model Number |
V vertical extruding pipe-making machine |
|
Mould diameter (inside mm) |
φ200, φ300, φ400, φ500, φ600, φ700, φ800, φ1000 |
|
Wall Thickness |
φ200 30mm, φ300 30mm,φ400 40mm, φ500 50mm, φ600 60mm, φ700 70mm,φ800 80mm ,φ1000 100mm |
Pictures
pipe samples
