Quick Details
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1930*1365*2270mm
-
Power (kW):
-
3
-
Stroke of RAM:
-
340mm
-
Ram maximum slotting length:
-
320mm
-
Ram motion frequency:
-
20.32.50.80(times/min)
-
Ram vertical adjustment distance:
-
315mm
-
Table Diameter:
-
630mm
-
Table rotary feed range:
-
0.052-0.783mm
-
Motor speed:
-
960r/min
-
Product Name:
-

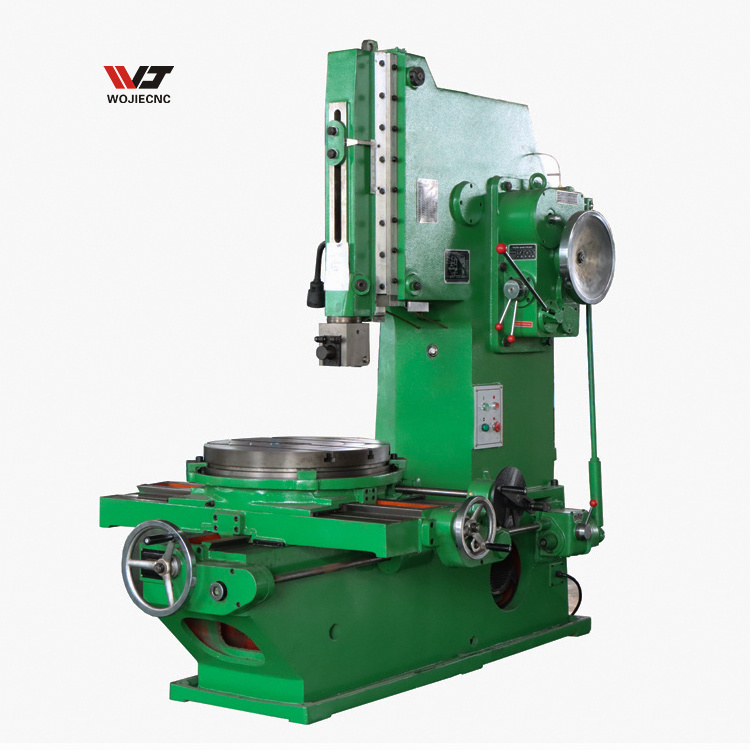

Vertical Slotting Machine
-
Processing Types:
-
Metal Processing
-
Type:
-
Slotter
-
Weight:
-
2500kgs
-
Certification:
-
ISO CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WOJIE
-
Warranty of core components:
-
13 months
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1930*1365*2270mm
-
Power (kW):
-
3
-
Stroke of RAM:
-
340mm
-
Ram maximum slotting length:
-
320mm
-
Ram motion frequency:
-
20.32.50.80(times/min)
-
Ram vertical adjustment distance:
-
315mm
-
Table Diameter:
-
630mm
-
Table rotary feed range:
-
0.052-0.783mm
-
Motor speed:
-
960r/min
-
Product Name:
-
Vertical Slotting Machine
-
Processing Types:
-
Metal Processing
-
Type:
-
Slotter
-
Weight:
-
2500kgs
-
Certification:
-
ISO CE
Product Description
The main performance characteristics:
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed,Therefore be better thanmechanical slotting machine used drum wheel feed.
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed,Therefore be better thanmechanical slotting machine used drum wheel feed.
Application:
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,,
2. Enterprise suitable for single or small batch production.
Product main technical parameters:
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,,
2. Enterprise suitable for single or small batch production.
Product main technical parameters:
|
Item
|
Units
|
B5020E
|
B5032E
|
B5040E
|
|
Max.slotting length
|
Mm
|
200
|
320
|
|
|
Number of ram reciprocation per minute
|
No./min
|
32,50,80,125
|
20,32,50,80
|
20,32,50,80
|
|
Inclination of ram
|
°
|
0-8
|
0-8
|
0-8
|
|
Diameter of worktable
|
Mm
|
500
|
630
|
630
|
|
Adjusting vertical distance of slide block
|
Mm
|
215
|
370
|
380
|
|
Distance from tool holding surface to column front
|
Mm
|
480
|
600
|
600
|
|
Distance from worktable surface& to underside of slide rack
|
Mm
|
320
|
470
|
620
|
|
Max. longitudinal travel of worktable
|
Mm
|
440
|
560
|
560
|
|
Max. transverse travel of worktable
|
Mm
|
520
|
535
|
535
|
|
Max. rotary angle of worktable
|
°
|
360
|
360
|
360
|
|
Feed range of worktable in longitudinal& transverse direction
|
Mm
|
0.054-1.24
|
0.054-1.24
|
0.054-1.24
|
|
Rotary feed range of worktable
|
°
|
0.035-0.805
|
0.035-0.805
|
0.035-0.805
|
|
Max size of slotting tool (LengthXLigh)
|
Mm
|
25x40
|
25x40
|
25x40
|
|
Max. slotting force
|
KN
|
8
|
8
|
8
|
|
Max loading weight on worktable
|
Kg
|
500
|
500
|
500
|
|
T-slot with in the center of worktable
|
Mm
|
18H8
|
18H8
|
18H8
|
|
Power supply of main electric motor
|
KW
|
3
|
3
|
3
|
|
Speed of main motor
|
m/min
|
960
|
960
|
960
|
|
Power of motor for rapid traverse
|
KW
|
0.75
|
0.75
|
0.75
|
|
Speed of motor for rapid traverse
|
m/min
|
1390
|
1390
|
1390
|
|
Net weight
|
Kg
|
2500
|
2500
|
2900
|
|
Dimension of machine tool (L*W *H)
|
mm
|
1930x1365x2270
|
1930x1365x2270
|
1975x1370x2310
|
Working Accuracy:
|
Flatness of machined surfaces on tested workpiece
|
0.015mm
|
|
Verticality of machined surface on tested workpiece
|
0.025mm
|
|
Surface roughness on tested workpiece
|
6.3
|
|
Verticality of machined side surface on tested workpiece against base
|
0.02mm
|
