Quick Details
-
Brand Name:
-
Fuyuang
-
Model Number:
-
FY4802500
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
2.5A
-
Product Name:
-
12v 24v 36v 48v dc power supply
-
Output:
-
12v 24v 36v 48v
-
description:
-
48v smps
-
Protections:
-
Short circuit/ Over current/ Over voltage
-
Color:
-
Black / White / Others
-
Warranty:
-
3 years
-
Certification:
-
UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, ROHS, REACH
-
Dimension:
-
178*90*35MM
-
Weight:
-
0.78KG
-
Usage:
-
battery charger,E-bike,Massage etc.
Quick Details
-
Input Voltage:
-
100-240v
-
Output Voltage:
-
48V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fuyuang
-
Model Number:
-
FY4802500
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
2.5A
-
Product Name:
-
12v 24v 36v 48v dc power supply
-
Output:
-
12v 24v 36v 48v
-
description:
-
48v smps
-
Protections:
-
Short circuit/ Over current/ Over voltage
-
Color:
-
Black / White / Others
-
Warranty:
-
3 years
-
Certification:
-
UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, ROHS, REACH
-
Dimension:
-
178*90*35MM
-
Weight:
-
0.78KG
-
Usage:
-
battery charger,E-bike,Massage etc.
If you can not find a product that meets the your requirements, please send an inquiry and tell us the specifications. We will provide you with detailed information and quotation.
|
Item
|
Value
|
|
Product name
|

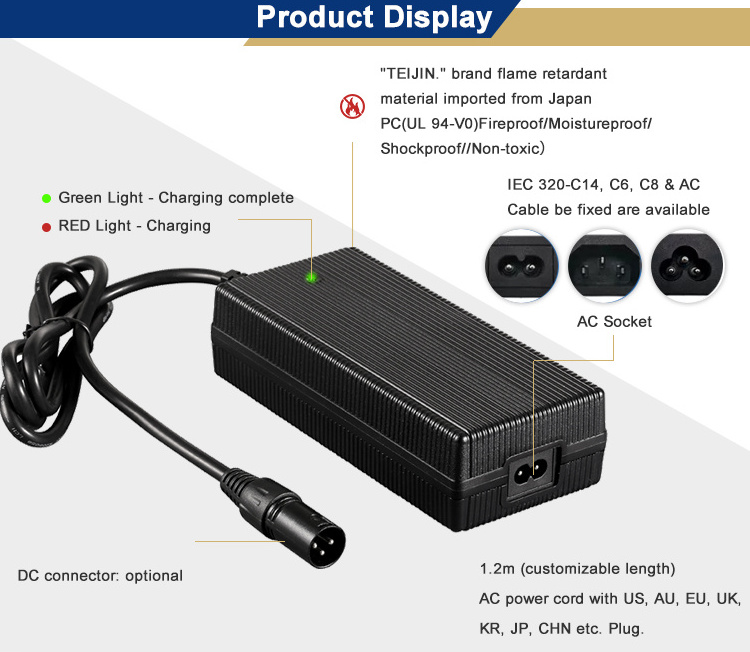

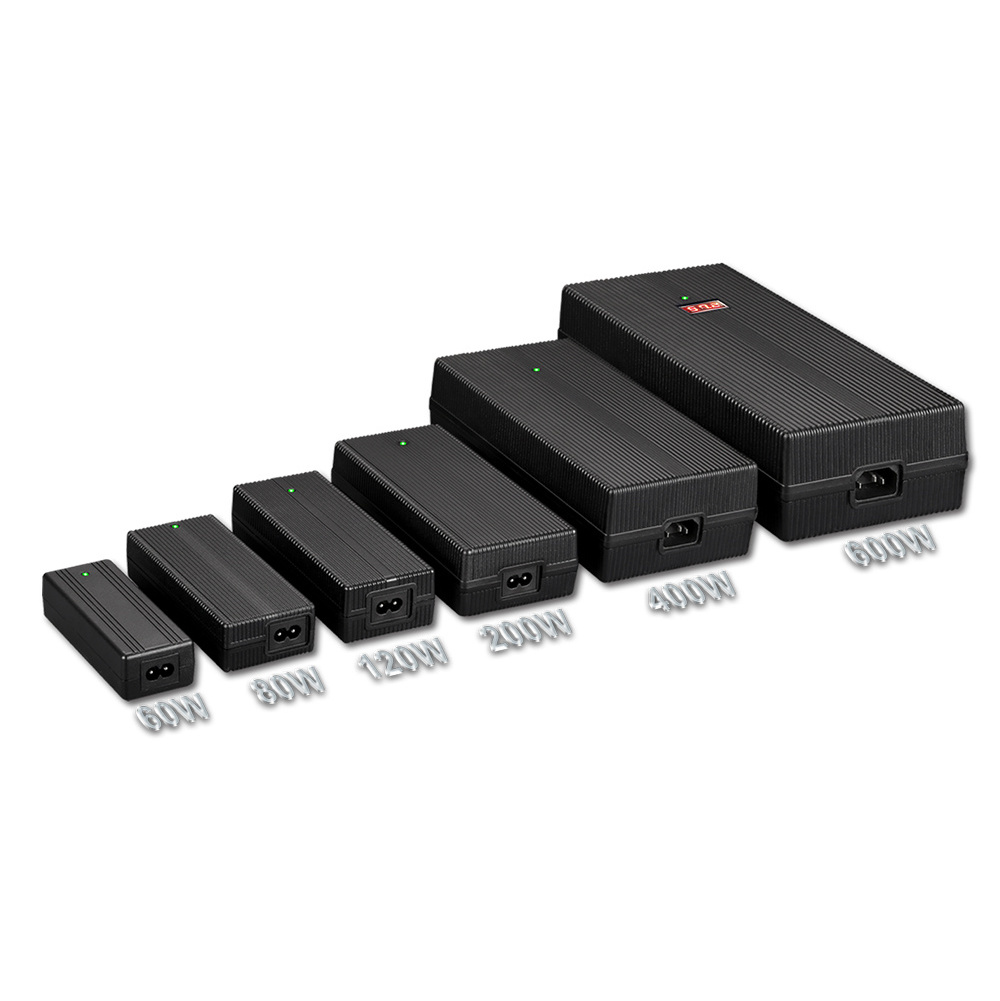

Fuyuan 60-1000w power adapter switching power supply 12v 24v 36v 48v dc power supply
|
|
AC Input
|
100-240VAC, 50/60Hz
|
|
AC Inlet
|
IEC320-C14, C6, C8
|
|
AC Power Cord
|
1.2M (or customized length) power cord with US,AU,EU,UK,KR,JP,CHN etc. plug
|
|
Output voltage and current
|
12v 24v 36v 48v
|
|
Material
|
PC Fireproof Material
|
|
Protection
|
Short Circuit Protection, Overvoltage, Over temperature, Overload
|
|
Certificate
|
UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, ROHS, REACH
|
|
Safety Standard
|
UL60950,UL1012,UL1310, IEC61347, IEC60950, IEC61558, IEC60335, EN62233, EN62493
|
|
Efficiency
|
＞89%
|
|
Brand Name
|
Fuyuang
|
|
Place of Origin
|
Guangdong-China
|
|
Warranty
|
3 Years
|
|
Package
|
(1) battery charger packed in a small box one by one
(2)Put small boxes in a carton
|
|
HIPOT testing
|
3000-4200V
|
|
Operating temperature
|
-29ºC~ +45.5ºC
|
|
Storage temperature
|
-40ºC~ +75ºC
|
|
Dropping Testing
|
X-Y-Z direction 100cm,one time with each direction
|
|
MTBF
|
30000 hours full rated load at 25ºC
|
|
AQL
|
MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0
|
Q1: What is the warranty of your products?
A: We offer 3 years guarantee for our Battery Chargers. Power Adapters and LED Power Supplies, at the same time if the products was damaged undesigned , we are willing to replace unconditionally.
Q2: What kind of battery charger you can offer ?
A: We can manufacture Lithium Battery Charger, Lead-acid Battery charger, LifePo4 Battery Charger and NilMH Battery Chargers within a range of 30w-1000w.
Q3. Do you have some new product coming?
A: We offer 3 years guarantee for our Battery Chargers. Power Adapters and LED Power Supplies, at the same time if the products was damaged undesigned , we are willing to replace unconditionally.
Q2: What kind of battery charger you can offer ?
A: We can manufacture Lithium Battery Charger, Lead-acid Battery charger, LifePo4 Battery Charger and NilMH Battery Chargers within a range of 30w-1000w.
Q3. Do you have some new product coming?
A: We have 30 years experience in production of switch power supply company, at present ,the main goal is to high-power switching power supply design and production, 800W battery chargers and adapters have been applied for certification, can put into production soon.
Q4: Will each of your product tested before shipment?
A: Yes, each of our Battery Chargers, Power Adapters and LED Power Supplies will be strictly tested before shipping. The last four processes of testing is Open Frame Performance Testing --- Plastic Housing Integrated --- 4-hour Aging Testing --- Drop Testing---- Final Performance Testing --- Packaging.
Q5: What certifications you have ?
A: Our company have been certified by ISO 9001:2015.ISO 14000:2015,QC 080000:2015;Our Battery Chargers ,Power Adapters and LED Power Supplies are passed UL.FCC.CUL.CE,RoHs,CB,TUV/GS, SAA,RCM,PSE,KC,CCC.
Q6: What‘s the lead time?
A: Sample :3-5 days. Mass production: 15-20 days, depends on the order quantity.
Q7: How do you ship the goods and how long does it take?
A:We usually ship by DHL,UPS,FEDEX,TNT etc. It usually takes 4-5 days to arrive. By air, by sea are also acceptable.
Q8: Could you customize electric bike battery charger for us ?
A: Yes, we support both OEM & ODM.
Q4: Will each of your product tested before shipment?
A: Yes, each of our Battery Chargers, Power Adapters and LED Power Supplies will be strictly tested before shipping. The last four processes of testing is Open Frame Performance Testing --- Plastic Housing Integrated --- 4-hour Aging Testing --- Drop Testing---- Final Performance Testing --- Packaging.
Q5: What certifications you have ?
A: Our company have been certified by ISO 9001:2015.ISO 14000:2015,QC 080000:2015;Our Battery Chargers ,Power Adapters and LED Power Supplies are passed UL.FCC.CUL.CE,RoHs,CB,TUV/GS, SAA,RCM,PSE,KC,CCC.
Q6: What‘s the lead time?
A: Sample :3-5 days. Mass production: 15-20 days, depends on the order quantity.
Q7: How do you ship the goods and how long does it take?
A:We usually ship by DHL,UPS,FEDEX,TNT etc. It usually takes 4-5 days to arrive. By air, by sea are also acceptable.
Q8: Could you customize electric bike battery charger for us ?
A: Yes, we support both OEM & ODM.
