Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hualian
-
Dimension(L*W*H):
-
4500*1050*2000mm
-
Weight:
-
1800 KG
-
Sealing Power (W):
-
2000
-
Upper Film Width(mm):
-
392
-
Lower Film Width(mm):
-
422
-
Gas Power(Mpa):
-
0.5-0.6
-
Max. Stretch depth(mm):
-
80
-
Certification:
-
CE
-
After Warranty Service:
-
Online technical support,Spare parts, Field maintenance
-
After-sales Service Provided:
-
Free spare parts, Field installation,Online technical support
-
Marketing Type:
-
Hot Product 2023
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic
-
Voltage:
-
380V/50Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hualian
-
Dimension(L*W*H):
-
4500*1050*2000mm
-
Weight:
-
1800 KG
-
Sealing Power (W):
-
2000
-
Upper Film Width(mm):
-
392
-
Lower Film Width(mm):
-
422
-
Gas Power(Mpa):
-
0.5-0.6
-
Max. Stretch depth(mm):
-
80
-
Certification:
-
CE
-
After Warranty Service:
-
Online technical support,Spare parts, Field maintenance
-
After-sales Service Provided:
-
Free spare parts, Field installation,Online technical support
-
Marketing Type:
-
Hot Product 2023
Product Description
All-round safety protection devices for heating, cutting and moving parts.
High quality imported flm clamping chain
Neat and even bottom film formed by specially crafted molds
304 S/S casing. and high-strength aluminum alloy for molds
Customized interchangeable molds designed for flexible flm
Equipped with Busch vacuum pump for higher fficiency and lower operating cost
Fast operating speed with Panasonic servo motor and driver
Multiple languages operating system interface, with various functions bilt-in.
Description:

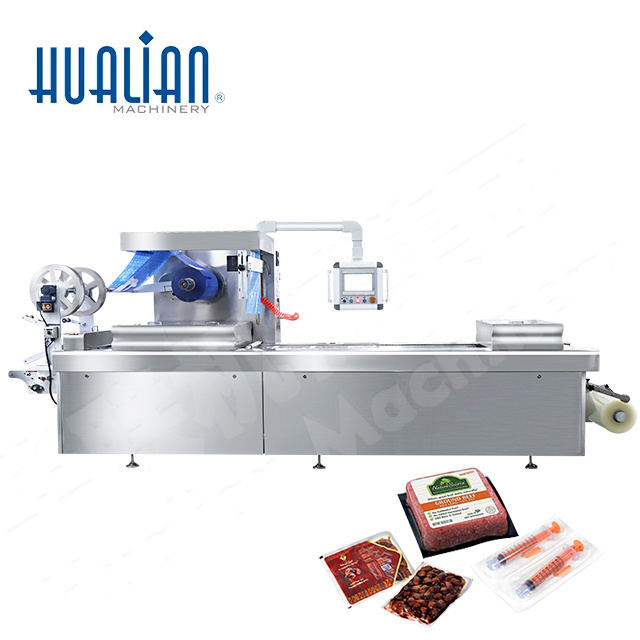

HVR-A Series Automatic Thermoforming Vacuum Packaging Machine can continuously finish the procedure of film forming, automatic or manual products feeding, vacuuming, sealing, cutting, etc.; it will skin pack the product.
It is widely used to skin pack the products like kinds of snacks, meat, hardware, equipment, etc.
It adopts removable moulds which enable single machine to meet different sizes of moulds.
It equips with recycling device for waste film and ensure healthy environment.
It works with sensor for accurate positioning. It is available for vanish-film or color film to pack.
HVR-A Series Automatic Thermoforming Vacuum Packaging Machine can continuously finish the procedure of film forming, automatic or manual products feeding, vacuuming, sealing, cutting, etc.; it will skin pack the product.
It is widely used to skin pack the products like kinds of snacks, meat, hardware, equipment, etc.
It adopts removable moulds which enable single machine to meet different sizes of moulds.
It equips with recycling device for waste film and ensure healthy environment.
It works with sensor for accurate positioning. It is available for vanish-film or color film to pack.
Recommend Products
Product Paramenters
|
|
HVR-320A
|
HVR-420A
|
HVR-520A
|
||
|
Voltage (V/Hz)
|
AC 380/50
|
|
|
||
|
Sealing Power (W)
|
2000
|
|
|
||
|
Air Source(Mpa)
|
0.5-0.6
|
|
|
||
|
Chamber Dimension (L×W×H) (mm)
|
200×(100-400)
|
300×(200-400)
|
400×(200-600)
|
||
|
Max. stretch depth (mm)
|
≤80
|
|
|
||
|
Vacuum Pump capacity (m3/h)
|
100 or 160 or 200
|
|
|
||
|
Capacity(Times/min)
|
4-6 times/min
|
|
|
||
|
Cooling Type
|
water-cooling
|
|
|
||
|
Upper FILM Width(mm)
|
292
|
392
|
492
|
||
|
Lower FILM Width (mm)
|
322
|
422
|
522
|
||
|
External Dimensions (L×W×H) (mm)
|
5000×950×2000
|
6000×1050×2000
|
6000×1150×2000
|
||
|
Net Weight (Kg)
|
Approx.1500
|
Approx.2000
|
Approx.2500
|
||
Product packaging
|
Model
|
HVR-420A
|
|
Pcs/CTN (pc)
|
1
|
|
Package Type
|
W/C
|
|
Gr. Wt. (kg)
|
2000
|
|
Length（CM）
|
365
|
|
Width（CM）
|
125
|
|
Height（CM）
|
215
|
|
Single piece volume(CBM)
|
9.809
|
