Cement Concrete Mixer 350l Mobile Diesel Gasoline Engine Self Loading Concrete Mixer
Cement Concrete Mixer 350l Mobile Diesel Gasoline Engine Self Loading Concrete Mixer
Cement Concrete Mixer 350l Mobile Diesel Gasoline Engine Self Loading Concrete Mixer
Cement Concrete Mixer 350l Mobile Diesel Gasoline Engine Self Loading Concrete Mixer
Cement Concrete Mixer 350l Mobile Diesel Gasoline Engine Self Loading Concrete Mixer
Cement Concrete Mixer 350l Mobile Diesel Gasoline Engine Self Loading Concrete Mixer
Cement Concrete Mixer 350l Mobile Diesel Gasoline Engine Self Loading Concrete Mixer
Cement Concrete Mixer 350l Mobile Diesel Gasoline Engine Self Loading Concrete Mixer

Cement Concrete Mixer 350l Mobile Diesel Gasoline Engine Self Loading Concrete Mixer

FOB Reference Price: Get Latest Price
≥1 Sets
US $230
≥5 Sets
US $220
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Motor Power:
2.5/2.8/4/4.5kw
Speed of Mixing Drum:
2800r/min
Water Supply Mode:
manual
Working Cycle Period:
2-5min
Outline Dimension:
84*69*48cm
Marketing Type:
New Product 2023
Weight (KG):
61 kg
Product name:
Mini Concrete Mixer
Voltage:
110/220V
Capacity:
120/140/160/180/200/220/240/260L
Feature:
Performance
Diameter of barrel mouth:
330mm
Type:
2 Wheels
Certificate:
CE
Keywords:
Small Diesel Concrete Mixer
Color:
Customer's Requirement
Discharge Way:
Reverse-Rotation

Quick Details

Mixing Power:
2.5/2.8/4/4.5kw
Productivity:
5M³/H
Place of Origin:
Henan, China
Motor Power:
2.5/2.8/4/4.5kw
Speed of Mixing Drum:
2800r/min
Water Supply Mode:
manual
Working Cycle Period:
2-5min
Outline Dimension:
84*69*48cm
Marketing Type:
New Product 2023
Weight (KG):
61 kg
Product name:
Mini Concrete Mixer
Voltage:
110/220V
Capacity:
120/140/160/180/200/220/240/260L
Feature:
Performance
Diameter of barrel mouth:
330mm
Type:
2 Wheels
Certificate:
CE
Keywords:
Small Diesel Concrete Mixer
Color:
Customer's Requirement
Discharge Way:
Reverse-Rotation
Product Description

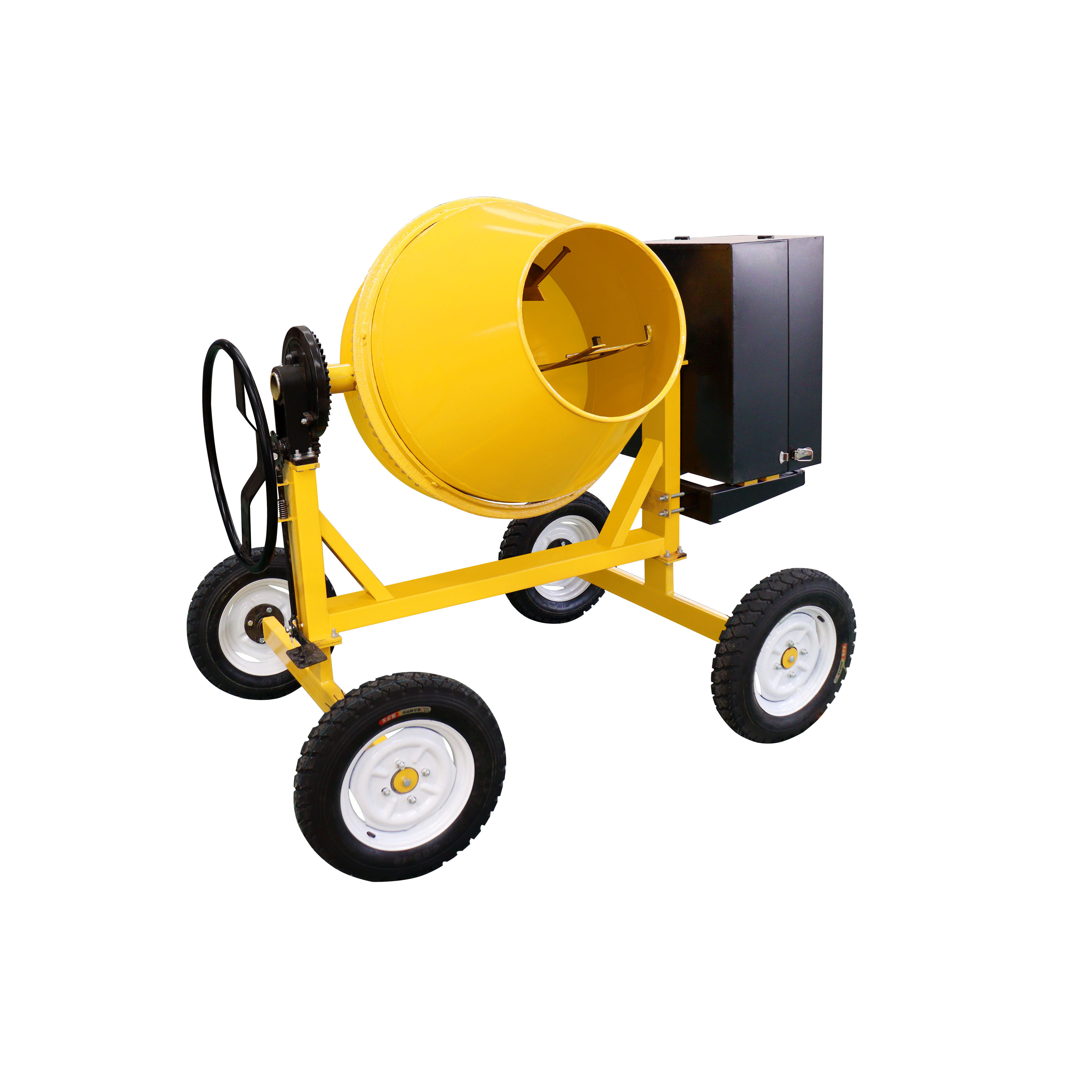

Small Concrete Mixer

The small concrete mixer has a smaller barrel and is suitable for small-scale construction scenarios, so it has a wider range of applications. The machine is equipped with wheels, which is easy to move, flexible to operate, and the body is hard. It is very convenient for household or commercial use, and has a high cost performance. Small Concrete Mixer

Structure

Various Models

Model
120L
140L
160L
180L
200L
220L
240L
260L
Power
550W
550W
650W
650W
800W
800W
1100W
1100W
Voltage
220-240V 50hz
220-240V 50hz
220-240V 50hz
220-240V 50hz
220-240V 50hz
220-240V 50hz
220-240V 50hz
220-240V 50hz
Motor speed
2800rpm
2800rpm
2800rpm
2800rpm
2800rpm
2800rpm
2800rpm
2800rpm
Mixing tank speed
28rpm
28rpm
28rpm
28rpm
28rpm
28rpm
28rpm
28rpm
Barrel thickness
1.2/1.5
1.2/1.5
1.2/1.5
1.2/1.8
1.2/1.8
1.5/2.0
1.5/2.0
1.5/2.0
Diameter of barrel mouth
330mm
330mm
330mm
380mm
380mm
380mm
380mm
380mm
Net weight/Gross weight (kg)
41/45
47/51
49/53
55/59
57/61
59/63
70/76
75/81
Carton size(cm)
74*58*43
79*64*43
79*64*47
84*69*47
84*69*48
84*69*50
97*76*50
97*76*52
Product Details

1.The mixing drum is made ofhigh-quality carbon steel and welded with carbon dioxide shielded welding to make thecylinder stronger.

2.Famous brand engine, strongpower, low fuel consumptionand high economic efficiency.Other brand engines are optional.

3.Steering wheel controls the discharge direction of the drum.

4.Four wheels can easily move, saving energy, convenient and fast.
