Quick Details
-
Voltage:
-
380V
-
Power:
-
120KW
-
Dimension(L*W*H):
-
D1600*H2000mm
-
Weight (KG):
-
7500
-
After-sales Service Provided:
-
On line service
-
Application:
-
stainless steel, ceramic, glass
-
Technology:
-
multi arc ion plating
-
Coating color:
-
gold, rose gold, five color, blue, purple, black
-
Advantage:
-
PLC automatic control
-
Coating film:
-
TiN, CrN, Ti
Quick Details
-
Machine Type:
-
Manufacturing plant, Painting Equipment, Plc Controller Programmable Logic Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chuanggao
-
Voltage:
-
380V
-
Power:
-
120KW
-
Dimension(L*W*H):
-
D1600*H2000mm
-
Weight (KG):
-
7500
-
After-sales Service Provided:
-
On line service
-
Application:
-
stainless steel, ceramic, glass
-
Technology:
-
multi arc ion plating
-
Coating color:
-
gold, rose gold, five color, blue, purple, black
-
Advantage:
-
PLC automatic control
-
Coating film:
-
TiN, CrN, Ti
Video Dicription
Products Description
|
Model
|
DZ1214
|
DZ1416
|
DZ1618
|
DZ1818
|
DZ2118
|
||||
|
Chamber dimension(mm)
|
D1200
H1400
|
D1400
H1600
|
D1600
H1800
|
D1800
H1800
|
D2100
H1800
|
||||
|
Ultimate vacuum(Pa)
|
＜8x10
-4
|
|
|
|
|
||||
|
Empty furnace pumping to 2x10
-2
pa(min)
|
＜5
|
|
|
|
|
||||
|
Targets
|
10
|
14
|
21
|
28
|
32
|
||||
|
Total Power(kW)
|
50
|
60
|
80
|
110
|
120
|
||||
Vacuum multi arc ion coating,that is,using arc discharge to make the target material ( titanium , chromium ,ziconium,etc.)evaporated or sputtered in a vacuum atmosphere.The evaporated or sputtered particles are ionized,activated and reacted in the gas discharge space,and finally deposite on the workpiece to form a film.
Multi arc ion coating integrates gas glow discharge,plasma technology and vacuum evaporation technology,which has the characteristics of strong adhesion of film base,good uniformity of film layer,wear resistance and corrosion resistance,and rich and diverse colors.
*Equipment specifications can be customized according to customer requirements.Height or depth can range from 600mm to 10000mm

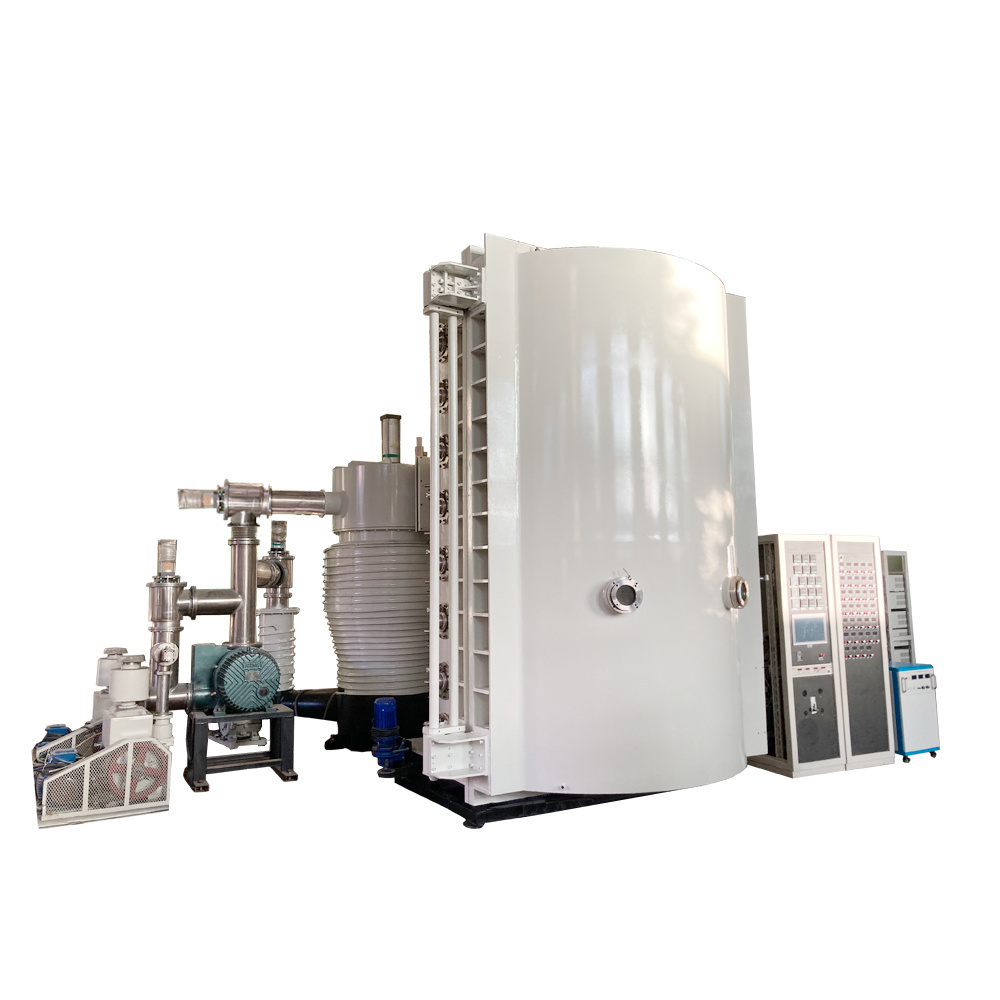

Product Display
Application
The equipment is applicable to ceramic,glass,stainless steel,water-plated hardware and other product,and can be plated with titanium silver,rose gold,puple,sapphire bule,pearly,multicolor,amber,soot,chrome black and other colors,which can be equipped with high-voltage ion bombardment,bias voltage and other systems to improve the coating effect.
