Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
GRANDFAR
-
Model Number:
-
GEA32-6-180
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.06HP
-
Cable Length:
-
1.3m
-
Outlet Size:
-
2 inch
-
Power:
-
45 W
-
motor:
-
Copper motor
-
Certification:
-
ce ERP SAA CB IECEE
-
Liquid temperature:
-
+2℃~+110℃
-
Maximum ambient temperature:
-
+40℃
-
Maximum system pressure:
-
10 bar
-
Protection level:
-
IP44
-
Mains connection:
-
220V/50Hz
-
PH:
-
6.5-8.5
-
GEA Max.Flow:
-
3.6 m³/h
-
GEA Max.Head:
-
6 m
Quick Details
-
Application:
-
Other, Commercial Buildings, Family Homes, HVAC OEM, temperature control
-
Pressure:
-
High Pressure
-
Voltage:
-
220V/50Hz
-
Warranty:
-
1 year
-
Brand Name:
-
GRANDFAR
-
Model Number:
-
GEA32-6-180
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.06HP
-
Cable Length:
-
1.3m
-
Outlet Size:
-
2 inch
-
Power:
-
45 W
-
motor:
-
Copper motor
-
Certification:
-
ce ERP SAA CB IECEE
-
Liquid temperature:
-
+2℃~+110℃
-
Maximum ambient temperature:
-
+40℃
-
Maximum system pressure:
-
10 bar
-
Protection level:
-
IP44
-
Mains connection:
-
220V/50Hz
-
PH:
-
6.5-8.5
-
GEA Max.Flow:
-
3.6 m³/h
-
GEA Max.Head:
-
6 m
We are a professional factory,we have our own brand GRANDFAR,and we also support OEM/ODM,please feel free to contact us！
|
MODEL NO.
|
GEA SERIES
|
LOGO/BRAND
|
GRANDFAR or OEM
|
|
COLOR
|
CAN BE CUSTOMIZED
|
CERTIFICATE
|
CE，CB，ISO14001
|
|
POWER UP TO
|
22W/30W/45W/62W/90W/130W/140W
|
PACKING
|
carton，8pcs/ctn or 4pcs/ctn(＞62w）
|
|
VOLTAGE
|
220V
|
WARRANTY
|
12 months
|
|
FREQUENCY
|
50Hz/60Hz
|
PAYMENT
|
TT,LC,any other payment to support
|
|
PIPE SIZE
|
1'',1½",2"
|
DELIVERY TERM
|
30-40days on receipt of the down payment or LC
|
|
CABLE
|
OEM
|
LOADING PORT
|
Ningbo,Shanghai or any port in China
|
|
MOQ
|
100
|
TERM
|
Free sample to check the quality for order conformation
|
|
MAX HEAD
|
4m/5m/6m/8m/10m/12m
|
UNION SIZE
|
G1" to G3/4"
G1 1/2" to G1"
G2" to G1 1/4"
|

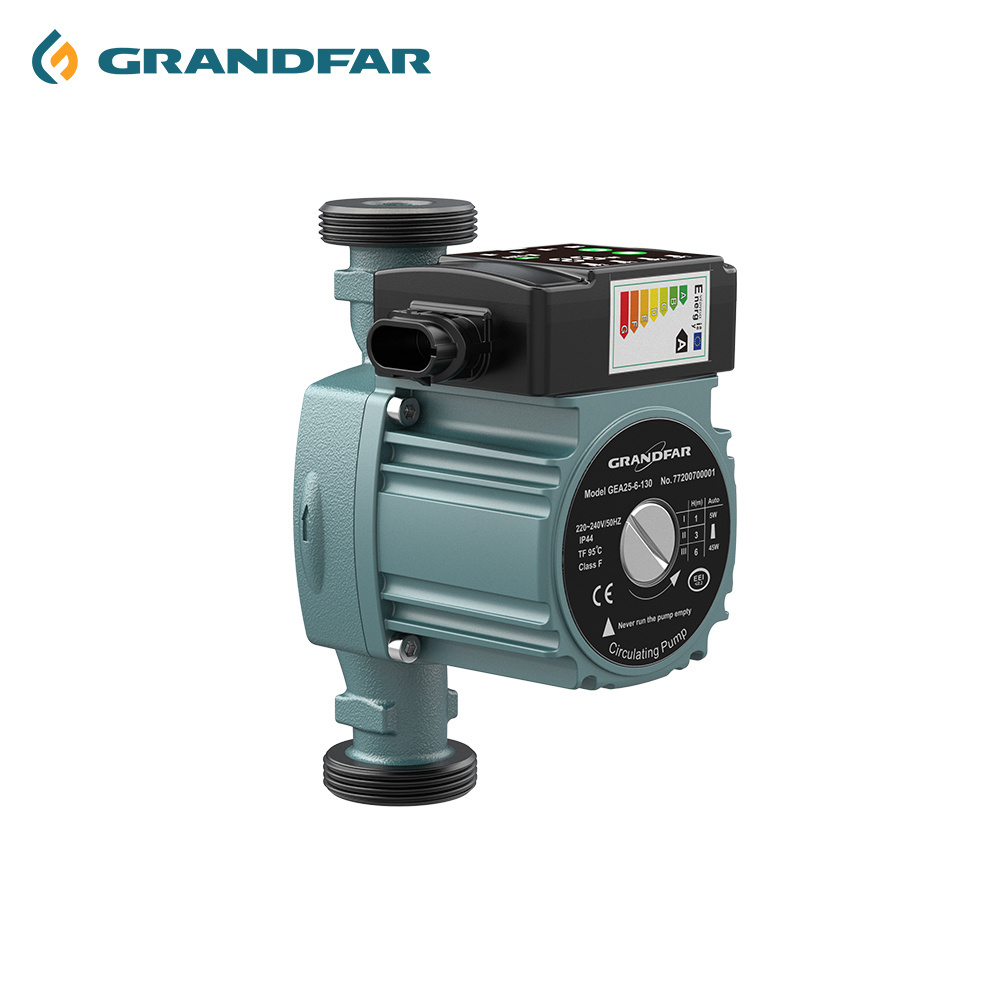

GEA serial are intelligent and efficient circulation pump (canned motor pump). It adopts canned structure, the motor stator iscompletely canned, the rotating partare immersed in the conveying liquid, the liquid plays the role of cooling the motor andlubricating the bearings The product has the characteristics of no leakage ,super quiet, energy saving, high efficiency and easyinstallation
