China Panel Type 8 Inch Digital Industrial Density Water Flowmeter 200mm Liquid Wastewater Sewage 4-20mA Magnetic Flow Meter

China Panel Type 8 Inch Digital Industrial Density Water Flowmeter 200mm Liquid Wastewater Sewage 4-20mA Magnetic Flow Meter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $668

≥20 Pieces

US $658

≥50 Pieces

US $638

≥100 Pieces

US $600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Kaifeng Lizobor

Model Number:: HLSLD

Product Name:: Electromagnetic Flow Meter

Medium:: Conductive Liquid

Application:: Measuring Fluid

Connection:: Flanged

Material:: Carbon Steel

Liner material:: PTFE/PFA/F46/Neoprene/Polyurethane

Electrode material:: SUS316L/HC/Titanium/Tantalu

Power supply:: 220VAC/ 24VDC

Output signal:: Pulse / 4~20mA / RS485

Accuracy:: 0.5%, 0.3%, 0.2%

Quick Details

Type:: Variable Area Water Flowmeters

Warranty:: 1 year

Place of Origin:: Kaifeng, China

Brand Name:: Kaifeng Lizobor

Model Number:: HLSLD

Product Name:: Electromagnetic Flow Meter

Medium:: Conductive Liquid

Application:: Measuring Fluid

Connection:: Flanged

Material:: Carbon Steel

Liner material:: PTFE/PFA/F46/Neoprene/Polyurethane

Electrode material:: SUS316L/HC/Titanium/Tantalu

Power supply:: 220VAC/ 24VDC

Output signal:: Pulse / 4~20mA / RS485

Accuracy:: 0.5%, 0.3%, 0.2%

China Panel Type 8 Inch Digital Industrial Density Water Flowmeter 200mm

Liquid Wastewater Sewage 4-20mA Magnetic Flow Meter

magnetic flow meter electromagnetic flow meter magnetic flowmeter electromagnetic flowmeter water flowmeter water flowmeter

Product Description

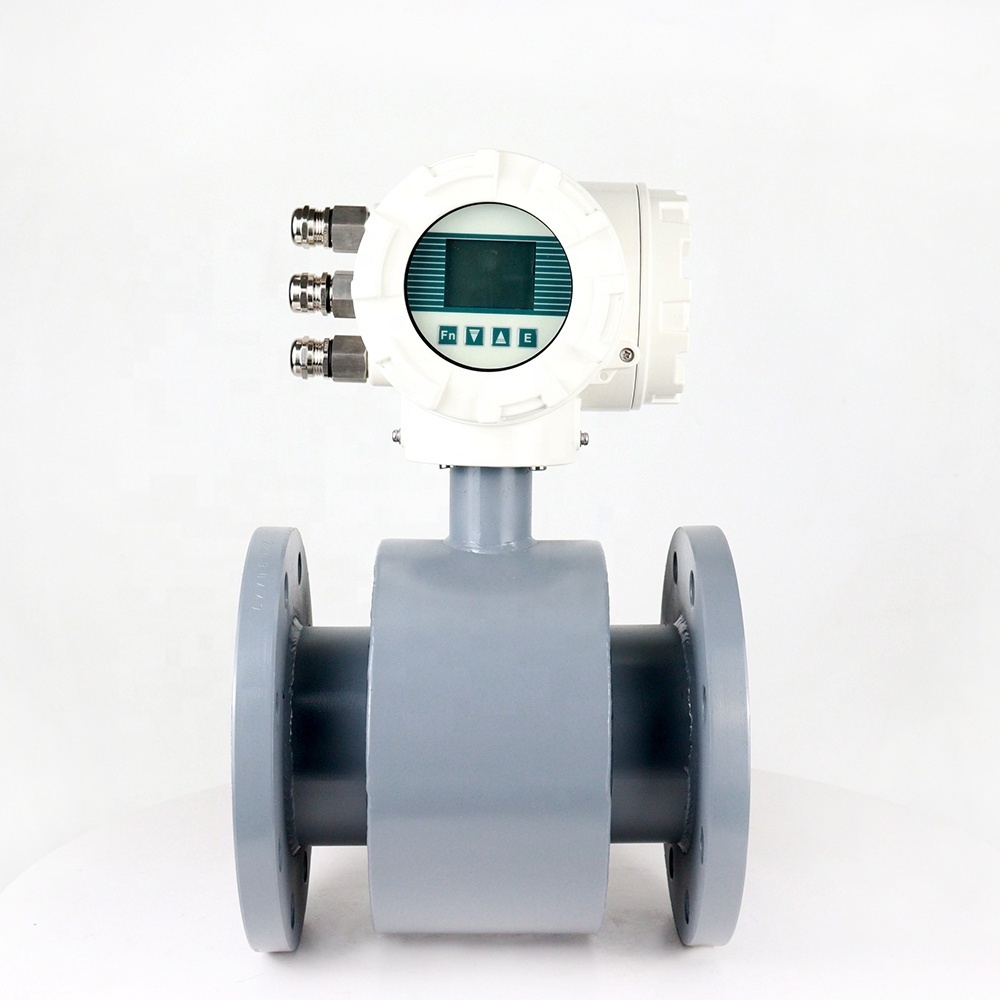

Compact style electromagnetic flow meter has integral display together with magnetic flow sensors which is easy for flow rate

reading and parameter configurations. It is usually used when the operation environment is relative good, not corrosive, no high
temperature and magmeter is not installed in high place or underground place.
Compact digital display magnetic inductive flow meter is worked on Faraday’s Induction principle, and it is used to measure
conductive liquid, such as acids, caustic, water , chemical and slurries. magnetic flow meter electromagnetic flow meter magnetic flowmeter electromagnetic flowmeter water flowmeter water flowmeter

Specification

Item	The Specifications of electromagnetic flowmeter
Installation Type	Compact/remote magnetic flow meter electromagnetic flow meter magnetic flowmeter electromagnetic flowmeter water flowmeter water flowmeter
Measuring fluid	conductive fluid and slurry
Caliber	DN6-DN3000
End connection	Flange, threaded, clamping, insertion type, etc.
Electrode materials	Mo2Ti , Hastelloy C, Hastelloy B, Pt Ta Ti
Flange standard	GB, DIN, JIS, EN, SABS, etc.
Lining Material	PTFE/ Teflon, PFA (resistance to negative pressure), chloroprene rubber, polyurethane, hard rubber (optional conductive ground rubber), F46
Electrode Type	Standard type 316L, scraper-type (DN ≥ 50)
Dielectric conductivity	> 5μs/cm (water> 20μs/cm)
Accuracy grade	±0.5% RS.
Flow Range	0-10m/s
Maximum temperature of medium	For rubber liner ≤ 80 °C, for PTFE liner ≤ 120°C
Ambient temperature	-20 - +60
Working pressure	0.6Mpa-4.0Mpa, the special high rpressure is available
Protection Level	IP65, IP67, IP68 (optional)
Power	220VAC(85~250 voltage) 24VDC(11~40 voltage)
Display	Forward and backward instantaneous flowrate, total flow, velocity, flowrate percentage with back light
Output	4-20mA current output ,0-1kHz frequency output, pulse output per unit volume
Communication	RS485 @Modbus, RS232@Modbus, HART, Profibus, GPRS, etc.

Sensor selection

Electrode Material	Application
Molybdenum-containing stainless steel (0Cr18N12Mo2Ti)	Applicable to industrial/municipal water, wastewater and low corrosive mediums. Widely used in petroleum, chemical industries. magnetic flow meter electromagnetic flow meter magnetic flowmeter electromagnetic flowmeter water flowmeter water flowmeter
Hastelloy B	Strong resistance to hydrochloric acids below the boiling point. Resist against oxidable acids, alkali and non-oxidable salts. For instance, vitriol, phosphate, hydrofluoric acids, and organic acids.
Hastelloy C	Exceptional resistance to strong solutions of oxidizing salts and acids. For example, Fe+++, Cu++, Nitric acids, mixed acids
Titanium	Titanium can withstand corrosive mediums such as seawater, chloride salt solutions, hypochlorite salts, oxidable acids(including fuming nitric acids), organic acids, and alkali. Not resistant to high purity reducing acids such as sulphuric acids, hydrochloric acids.
Tantalum	Highly resistant to corrosive mediums. Applicable to all chemical mediums except Hydrofluoric Acids, Oleum and Alkali.
Platinum-iridium	Applicable to all chemical mediums except for Ammonium salts and Fortis.
