Quick Details
-
Mounting Type:
-
Bracket fixed installation
-
Description:
-

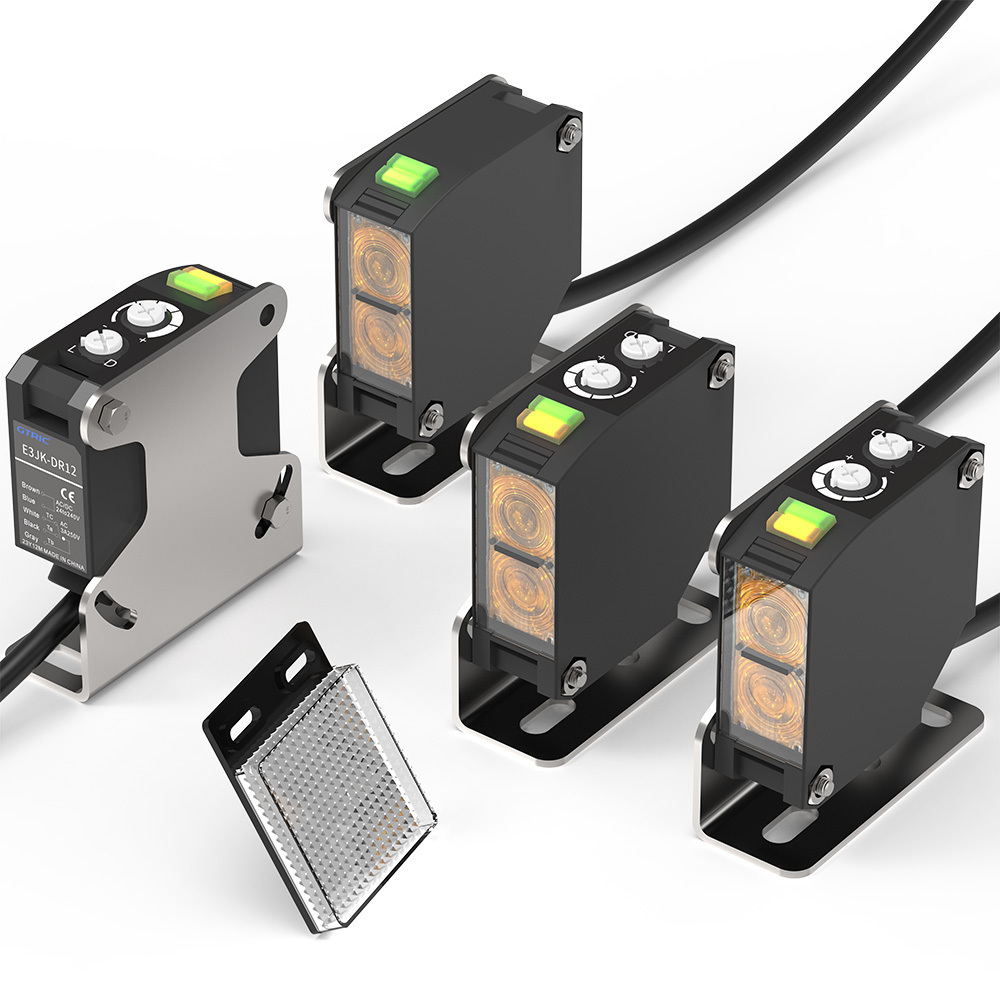

E3JK series photoelectric sensor switch, Photoelectric Sensor
-
Model Number:
-
E3JK-DR11
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GTRIC
-
Theory:
-
relay output
-
Output:
-
NO/NC
-
Function:
-
Standard
-
Sensing distance:
-
4M/7M
-
pointing angle:
-
3°-20°
-
Standard targe:
-
White card reflcetion rate 90%
-
Residual voltage:
-
DC≤1V AC≤7V
-
Supply voltage:
-
24-240 VDC/DC 5-wries
-
Switching:
-
600 Hz
-
Protection:
-
IP 65
-
Connection:
-
2M PVC cable
-
Warranty:
-
1 Year
Quick Details
-
Use:
-
positioning
-
Series:
-
E3JK series photoelectric sensor
-
Features:
-
relay output infrared photoelectric sensor
-
Mounting Type:
-
Bracket fixed installation
-
Description:
-
E3JK series photoelectric sensor switch, Photoelectric Sensor
-
Model Number:
-
E3JK-DR11
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GTRIC
-
Theory:
-
relay output
-
Output:
-
NO/NC
-
Function:
-
Standard
-
Sensing distance:
-
4M/7M
-
pointing angle:
-
3°-20°
-
Standard targe:
-
White card reflcetion rate 90%
-
Residual voltage:
-
DC≤1V AC≤7V
-
Supply voltage:
-
24-240 VDC/DC 5-wries
-
Switching:
-
600 Hz
-
Protection:
-
IP 65
-
Connection:
-
2M PVC cable
-
Warranty:
-
1 Year
|
Specifications
|
|
|
|
|||
|
Model
|
E3JK-DR11
|
E3JK-RR11
|
E3JK-TR11
|
|||
|
|
E3JK-DR12
|
E3JK-RR12
|
E3JK-TR12
|
|||
|
Detection type
|
Diffuse reflection
|
Retro-reflective
|
Through-beam
|
|||
|
Sensing distance
|
E3JK-DR11:30CM-2M
|
E3JK-RR11:0-7M
|
E3JK-TR11:40M
|
|||
|
|
E3JK-DR12:15-50CM
|
E3JK-RR12:0-4M
|
E3JK-TR12:15M
|
|||
|
Supply voltage
|
24-230V AC/DC universal
|
|
|
|||
|
Operation mode
|
Light-ON/Dark-ON selectable
|
|
|
|||
|
Light source
|
Red LED (624 nm)
|
|
|
|||
|
Directional angle
|
1.5° min.
|
|
|
|||
|
Ccontrol output
|
5-wire Relay output
|
|
|
|||
|
Power consumption
|
2 W max.
|
|
|
|||
|
Life expectancy (relay output)
|
Electrical: 100 thousand times or more (switching frequency 1800 times/hour)
Mechanical: 50 million times or more (switching frequency 18000 times/hour)
|
|
|
|||
|
Response time
|
20 ms max.
|
|
|
|||
|
Sensitivity setting
|
Single-turn adjustment
|
|
|
|||
|
Ambient illuminance
|
Incandescent lamp: 3.000 lx ;Sunlight: 11.000 lx
|
|
|
|||
|
Degree of protection
|
IP64
|
|
|
|||
|
Indicator
|
Operation indicator (orange), Stability indicator (green)
|
|
|
|||
|
Connection method
|
Pre-wired models (Cable length 2 m)
|
|
|
|||
About Us
Wenzhou Gtric Technology Co., Ltd. is located in Yueqing IoT sensors Park, which covers 5,000 square meters, with over 100 employees. We are focuses on intelligent manufacturing and industrial automation, our main businesses are sensors, encoders, button switch, coupling, expansion set and other industrial automation products, providing standard and individual products and solutions for customers.
Our products cover over 20 series, 1000specificatison, which have passed CCC, CE, UL, ISO9001 certification as well as EU RoHS Environmental Directives. Based on our technical advantages, Gtric can provide industrial automation solution according to customers’ requirements.
Q: Can I customize a special sensor?
A: Sure, we also offer customized services.
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders, please contact us and we will give you a quatation.
Q: If I need a sample for pretest, do you sale sample for this inquiry?
A: Yes, we can sale sample for pretest. If you need, please contact us.
Q : When will you ship my order?
A : 48 hours shipping guarantee for stock items and 10-15 days for non-stock items.
A: Sure, we also offer customized services.
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders, please contact us and we will give you a quatation.
Q: If I need a sample for pretest, do you sale sample for this inquiry?
A: Yes, we can sale sample for pretest. If you need, please contact us.
Q : When will you ship my order?
A : 48 hours shipping guarantee for stock items and 10-15 days for non-stock items.
