Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
JIAYOU
-
Model Number:
-
YJV
-
Size:
-
5.6-31.7MM
-
Product name:
-

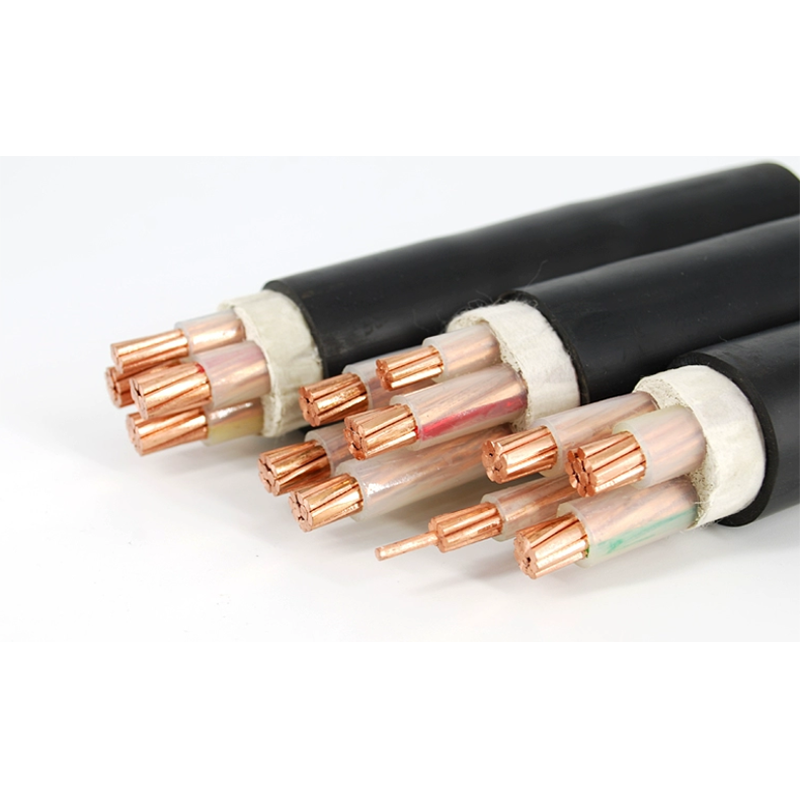

Copper Core PVC Insulated Electrical Power Cable
-
Color:
-
Customer's Requirment
-
Conductor:
-
Pure Copper
-
Insulation:
-
XLPE PE PVC
-
Certificate:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Rated voltage:
-
0.6-1000V
-
Standard:
-
IEC60502
-
Core:
-
1 Core
-
Voltage:
-
0.6/1KV 6/10KV
-
Keywords:
-
PV Solar Power Cable Wire
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
JIAYOU
-
Model Number:
-
YJV
-
Size:
-
5.6-31.7MM
-
Product name:
-
Copper Core PVC Insulated Electrical Power Cable
-
Color:
-
Customer's Requirment
-
Conductor:
-
Pure Copper
-
Insulation:
-
XLPE PE PVC
-
Certificate:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Rated voltage:
-
0.6-1000V
-
Standard:
-
IEC60502
-
Core:
-
1 Core
-
Voltage:
-
0.6/1KV 6/10KV
-
Keywords:
-
PV Solar Power Cable Wire
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangxi
|
|
Brand Name
|
JIAYOU
|
|
Model Number
|
YJV
|
|
Insulation Material
|
PVC
|
|
Type
|
LOW VOLTAGE
|
|
Application
|
Construction
|
|
Conductor Material
|
Copper
|
|
Jacket
|
PVC
|
|
Size
|
5.6-31.7MM
|
|
Product name
|
Copper Core PVC Insulated Electrical Power Cable
|
|
Color
|
Customer's Requirment
|
|
Conductor
|
Pure Copper
|
|
Insulation
|
XLPE PE PVC
|
|
Certificate
|
ISO9001/ISO14001 /OHSAS18001/CCC
|
|
Rated voltage
|
0.6-1000V
|
|
Standard
|
IEC60502
|
|
Core
|
1 Core
|
|
Voltage
|
0.6/1KV 6/10KV
|
|
Keywords
|
PV Solar Power Cable Wire
|
Products Description
|
1.Standard
The cable is manufactured according to the standard GB 12706-91 or IEC60502.It is suitable to be installed in the power
transmission and distribution lines with rated voltage of 0.6/1 KV(U0/U).
2.Maximum rated temperature
(1)The maximum operating temperature of cores shall not exceed 90C, when the cable is used for long period. The temperature of cores shall not exceed 250℃ at short circuit fors seconds. (2)The installation of cables is not limited by the difference of level along the route. The ambient temperature should not be below 0℃ during installation. The minimum bending radius shall not be less than 10 times of the cable overall diameter when laying. |
|
|
||
Product model and application
|
Model
|
|
Name
|
APPLICATION
|
|
|
Copper core
|
aluminium core
|
|
|
|
|
YJV
|
YJLV
|
XLPE insulated PVC sheathed power cable
|
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
|
|
|
|
|
power cable
|
|
|
|
YJY
|
YJLY
|
XLPE insulated PE sheathed power cable
|
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
|
|
|
YJV22
|
YJLV22
|
XLPE insulated steel tape armored PVC sheathed power cable
|
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
|
|
|
YJV23
|
YJLV23
|
XLPE insulated steel tape armored PE sheathed power cable
|
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
|
|
|
YJV32
|
YJLV32
|
XLPE insulated fine steel wire armored PVC sheathed power cable
|
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
|
|
|
Nominal Cross Section /mm2
|
Conductor Type
|
Insulation thickness/mm
|
Sheath Thickness/mm
|
ApproxWeight
Kg/Km |
|
Max. DC Conductor
resistance at 20℃ /Ω/Km |
|
||
|
|
|
|
|
Copper core
|
Aluminum core
|
Copper core
|
Aluminum core
|
||
|
1.5
|
Class 1
|
0.7
|
1.4
|
43.7
|
---
|
12.1
|
---
|
||
|
2.5
|
Class 1
|
0.7
|
1.4
|
55.2
|
---
|
7.41
|
---
|
||
|
4
|
Class 1
|
0.7
|
1.4
|
72.5
|
48.6
|
4.61
|
---
|
||
|
6
|
Class 1
|
0.7
|
1.4
|
94.0
|
58.0
|
3.08
|
4.61
|
||
|
10
|
Class 2
|
0.7
|
1.4
|
139.7
|
79.3
|
1.83
|
3.08
|
||
|
16
|
Class 2
|
0.7
|
1.4
|
200.1
|
104.4
|
1.15
|
1.91
|
||
|
25
|
Class 2
|
0.9
|
1.4
|
298.1
|
146.6
|
0.727
|
1.2
|
||
|
35
|
Class 2
|
0.9
|
1.4
|
391.3
|
183.7
|
0.524
|
0.868
|
||
|
50
|
Class 2
|
1.0
|
1.4
|
524.3
|
231.6
|
0.387
|
0.641
|
||
|
70
|
Class 2
|
1.1
|
1.4
|
738.9
|
310.9
|
0.268
|
0.443
|
||
|
95
|
Class 2
|
1.1
|
1.5
|
979.3
|
399.0
|
0.193
|
0.32
|
||
|
120
|
Class 2
|
1.2
|
1.5
|
1217.2
|
493.6
|
0.153
|
0.253
|
||
|
150
|
Class 2
|
1.4
|
1.6
|
1515.0
|
605.9
|
0.124
|
0.206
|
||
|
185
|
Class 2
|
1.6
|
1.7
|
1865.3
|
747.1
|
0.0991
|
0.164
|
||
|
240
|
Class 2
|
1.7
|
1.8
|
2420.2
|
950.0
|
0.0754
|
0.125
|
||
|
300
|
Class 2
|
1.8
|
1.9
|
2987.8
|
1162.9
|
0.0601
|
0.1
|
||
|
400
|
Class 2
|
2.0
|
2.0
|
3822.8
|
1488.7
|
0.047
|
0.0778
|
||
