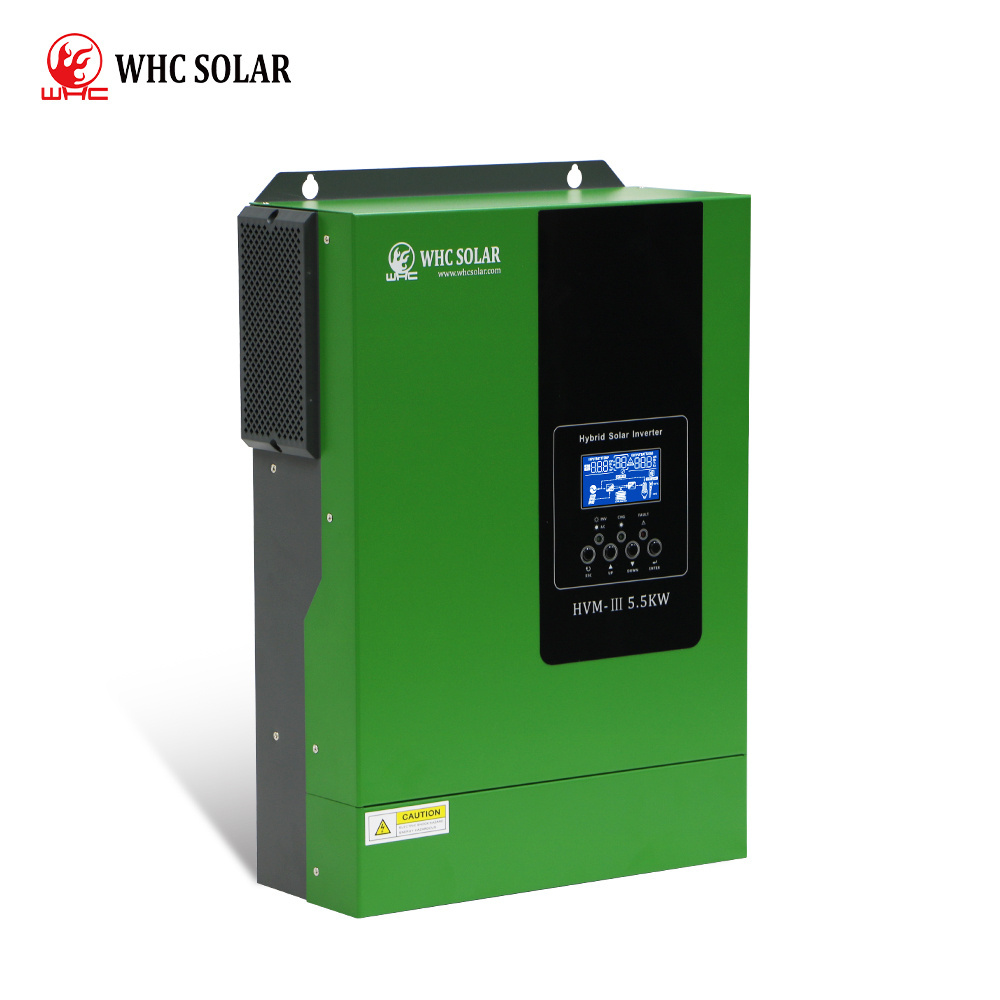

WHC SOLAR 3.5Kw 5.5Kw Hvm Mppt Split Solar Power Inverter 48V Dc To 220V Ac Solar Inverter 3Kw 5Kw 8Kw Hybrid Onduler Solaire
WHC SOLAR 3.5Kw 5.5Kw Hvm Mppt Split Solar Power Inverter 48V Dc To 220V Ac Solar Inverter 3Kw 5Kw 8Kw Hybrid Onduler Solaire
WHC SOLAR 3.5Kw 5.5Kw Hvm Mppt Split Solar Power Inverter 48V Dc To 220V Ac Solar Inverter 3Kw 5Kw 8Kw Hybrid Onduler Solaire
WHC SOLAR 3.5Kw 5.5Kw Hvm Mppt Split Solar Power Inverter 48V Dc To 220V Ac Solar Inverter 3Kw 5Kw 8Kw Hybrid Onduler Solaire
WHC SOLAR 3.5Kw 5.5Kw Hvm Mppt Split Solar Power Inverter 48V Dc To 220V Ac Solar Inverter 3Kw 5Kw 8Kw Hybrid Onduler Solaire
WHC SOLAR 3.5Kw 5.5Kw Hvm Mppt Split Solar Power Inverter 48V Dc To 220V Ac Solar Inverter 3Kw 5Kw 8Kw Hybrid Onduler Solaire
WHC SOLAR 3.5Kw 5.5Kw Hvm Mppt Split Solar Power Inverter 48V Dc To 220V Ac Solar Inverter 3Kw 5Kw 8Kw Hybrid Onduler Solaire
WHC SOLAR 3.5Kw 5.5Kw Hvm Mppt Split Solar Power Inverter 48V Dc To 220V Ac Solar Inverter 3Kw 5Kw 8Kw Hybrid Onduler Solaire

WHC SOLAR 3.5Kw 5.5Kw Hvm Mppt Split Solar Power Inverter 48V Dc To 220V Ac Solar Inverter 3Kw 5Kw 8Kw Hybrid Onduler Solaire

FOB Reference Price: Get Latest Price
≥1 Pieces
US $25.4
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
WHC
Model Number:
HVM5.5KW
Input Voltage:
48V DC
Output Voltage:
220V AC
Output Current:
25A
Output Frequency:
50Hz/60Hz
Size:
44 * 35 * 24cm
Certificate:
CE
Warranty:
18months
Weight:
11.6kg
Product name:
hybrid inverter
Rated Power:
3.5KW/5.5KW optional
Output waveform:
Pure Sine Wave
Display:
LCD Display
Controller:
100A MPPT Controller
Application:
Solar Power System
Inverter type:
Hybrid Power Inverter
Communication:
USB/RS232/Dry-contact
MPPT Efficiency:
99.5%~99.9%
Transfer Time:
10ms(For Personal Computers)20ms(For Home Appliance)

Quick Details

Output Type:
Single
Type:
DC/DC Converters, DC/AC Inverters
Inverter Efficiency:
99%
Place of Origin:
Guangdong, China
Brand Name:
WHC
Model Number:
HVM5.5KW
Input Voltage:
48V DC
Output Voltage:
220V AC
Output Current:
25A
Output Frequency:
50Hz/60Hz
Size:
44 * 35 * 24cm
Certificate:
CE
Warranty:
18months
Weight:
11.6kg
Product name:
hybrid inverter
Rated Power:
3.5KW/5.5KW optional
Output waveform:
Pure Sine Wave
Display:
LCD Display
Controller:
100A MPPT Controller
Application:
Solar Power System
Inverter type:
Hybrid Power Inverter
Communication:
USB/RS232/Dry-contact
MPPT Efficiency:
99.5%~99.9%
Transfer Time:
10ms(For Personal Computers)20ms(For Home Appliance)
Products Description
ABOUT FACTORY
Our factory has a total area of 200,000 sqm , use the advanced automatic production lines to ensure the quality of our products and save the production cost. which make our price more competitive in the market.
All of our products certified by CE and IEC.
and a full set of certificates for gel and lithium batteries is also available, such as UN38.3, MSDS,etc
1. Pure sine wave solar inverter 2. High PV input voltage range 3. Built-in MPPT solar controller 4. Battery equalization function to optimize battery performance and extend lifecycle 5. Inverter running without battery 6. Built-in anti-dusk kit for harsh environment Parallel operation with up to 12 units 7. WiFi/GPRS remote monitoring 8. RS485 communication for BMS(Optional) 9. Self consumption and Feed-in to the grid(Optional) Detachable LCD(Optional)
Product Paramenters
Model
HVM-II-3.5KW
HVM-II-5.5KW
HVM-IIP-5.5KW
Capacity
3.5KW
5.5KW
5.5KW
Parallel Capability
No
Yes
Yes, 12unit
Input
Nominal Voltage
230VAC
Acceptable Voltage Range
170-280VAC/90-280VAC
Frequency
50/60Hz
Output
Nominal Voltage
220V230VAC±5%
Surge Power
6000VA
10000VA
10000VA
Frequency
50/60Hz

Waveform
Pure Sine Wave
Transfer Time
10ms(For personal computer; 20ms(For home applicances)
Peak Efficiency(PV to INV)
97%
Peak Efficiency(Battery to INV)
93%
Battery
Battery Voltage
24VDC
48VDC
48VDC
Floating Charge Voltage
27VDC
54VDC
54VDC
Over charge Protection
33VDC
63VDC
63VDC
Charging Method
CC/CV
Solar Charger & AC Charger
Solar Charger Type
MPPT
Max.PV Array Power
4000W
5000W
5000W
Max PV Array Open Circuit Voltage
500VDC
PV Array MPPT Voltage Range
120VDC-450VDC
Max.Solar Charge Current
100A
100A
100A
Physical
Dimensions(mm)
448*295*122
Package Dimensions(mm)
540*395*217
Net Weight(KG)
8
10
Gross Weight(KG)
9
11
Communication Interface
USB/RS232/Dry-contact
Product Display
