2023 hot sales Foxconn G41 chipset LGA 775 ddr3 Motherboard

2023 hot sales Foxconn G41 chipset LGA 775 ddr3 Motherboard

FOB Reference Price: Get Latest Price

≥2 Pieces

US $28

≥20 Pieces

US $26

≥500 Pieces

US $24

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Memory Type:: DDR3

Graphics Card Type:: Integrated

FSB / HT:: 800/1066/1333 MHz

Brand Name:: CITOP or OEM

Place of Origin:: Guangdong, China

Audio:: Chipset Intergrated by Realtek 661

IDE:: 1 IDEport by ICH7 Supports Ultra DMA 66/100 mode

RAM:: 2*DDR3 800/1066/1333 SDRAM(240Pin 1.5v)

SATA:: Two Sata

Dimension:: 211mm*168mm

Lan:: Supports Realtek 8105E 10/100 Mbps

Power:: Supports ACPI Power Management

Quick Details

Maximum Ram Capacity:: 8GB

Application:: Desktop

Form Factor:: micro ATX

Memory Type:: DDR3

Graphics Card Type:: Integrated

FSB / HT:: 800/1066/1333 MHz

Brand Name:: CITOP or OEM

Place of Origin:: Guangdong, China

Audio:: Chipset Intergrated by Realtek 661

IDE:: 1 IDEport by ICH7 Supports Ultra DMA 66/100 mode

RAM:: 2*DDR3 800/1066/1333 SDRAM(240Pin 1.5v)

SATA:: Two Sata

Dimension:: 211mm*168mm

Lan:: Supports Realtek 8105E 10/100 Mbps

Power:: Supports ACPI Power Management

Product Description

Product Description:

specifications:

Processor Support	Supports Intel® CoreTM 2 Duo/ CoreTM 2 Quad Series processor in LGA775 package
Supported FSB	800/1066/1333 MHZ
Chipset	North Bridge: Intel G41 Chipset South Bridge: Intel ICH7 Chipset
Memory Support	2*DDR3 800/1066/1333 SDRAM (240Pin 1.5V) (For more information on compatible components, please check with manufacturer)
LAN	Supports Realtek 8105E 10/100 Mbps Compliance with PCI 2.2 Supports ACPI Power Management
Audio	Chip integrated by Realtek 661 Flexible 6-channel audio with jack sensing Compliant with Vista Premium
IDE	1 IDE port by ICH7 Supports Ultra DMA 66/100 mode Supports PIO, Bus Master operation mode
STAT	2 SATA II ports by ICH6 Supports 2 SATA II devices Supports storage and data transfers at up to 3Gb/s
Back panel	1 PS/2 mouse port 1 PS/2 keyboard port 1 serial port (COM1) 1 VGA port 1 parallel port supporting SPP/EPP/ECP mode 4 USB 2.0 Ports 1 LAN jack 3 flexible audio jacks
On-Board Pinheaders / Connectors	1 USB 2.0 pinheaders 1 Front Panel Audio pinheader
Slots	1 PCI Express x16 slot 2* PCI slots Support 3.3V / 5V PCI bus Interface
Form Factor	Micro-ATX (21.1cm X 16.8 cm)
Mounting	6 mounting holes

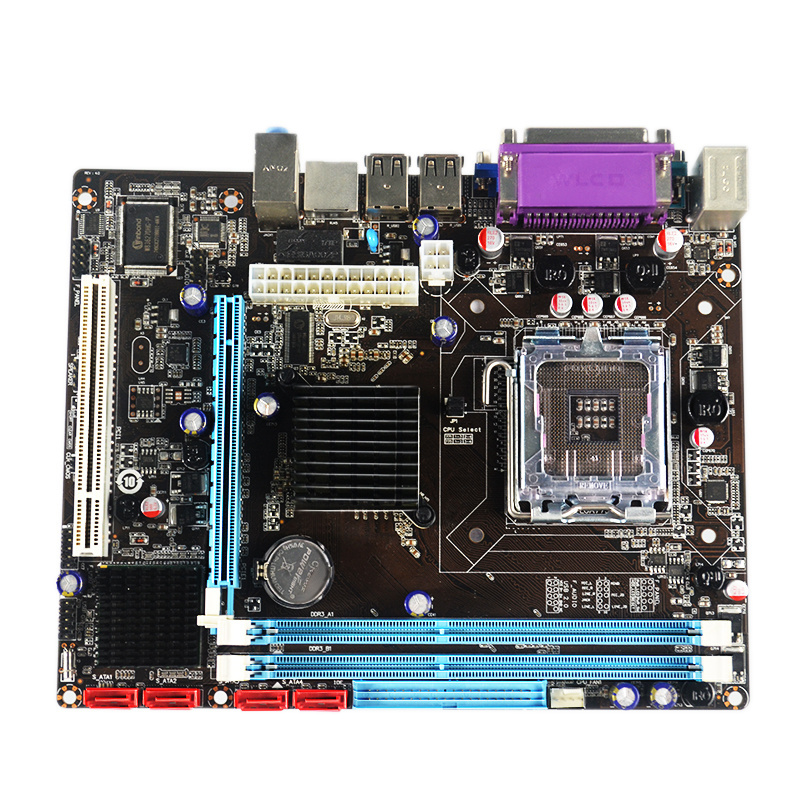

Product display:

Packaging & Shipping

Package Content:

- Attachment: Installation Driver CD & English User Manual & I/O Panel;
- Packing: Each in antistatic bag, 20 pieces/Carton. (Size: 49*48*28cm, G.W:12.5kg)
