Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
358kg
-
Drive Wheel:
-
Crawler
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Nuoman
-
Place of Origin:
-
Shandong, China
-
Gear Box Brand:
-
/
-
Forward Shift Number:
-
/
-
Dimensions (L x W x H) (mm):
-
1.6*1.1*0.7m
-
Cargo Tank Dimension:
-
customizable
-
Product name:
-
Mini Dumper
-
Name:
-
Mini Crawler Dumper
-
Keyword:
-
Tracked Dumper Crawler Dumper
-
Application:
-
Graden
-
Color:
-
Customer's Requiement
-
Drive type:
-
Crawler Drive
-
Usage:
-
Load
-
Weight:
-
350kg
-
Item:
-
Mini Dumper 500kg
-
Product:
-
Minidumper Hydraulic Garden
Quick Details
-
Condition:
-
New
-
Horsepower:
-
9
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
358kg
-
Drive Wheel:
-
Crawler
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Nuoman
-
Place of Origin:
-
Shandong, China
-
Gear Box Brand:
-
/
-
Forward Shift Number:
-
/
-
Dimensions (L x W x H) (mm):
-
1.6*1.1*0.7m
-
Cargo Tank Dimension:
-
customizable
-
Product name:
-
Mini Dumper
-
Name:
-
Mini Crawler Dumper
-
Keyword:
-
Tracked Dumper Crawler Dumper
-
Application:
-
Graden
-
Color:
-
Customer's Requiement
-
Drive type:
-
Crawler Drive
-
Usage:
-
Load
-
Weight:
-
350kg
-
Item:
-
Mini Dumper 500kg
-
Product:
-
Minidumper Hydraulic Garden
Product Description

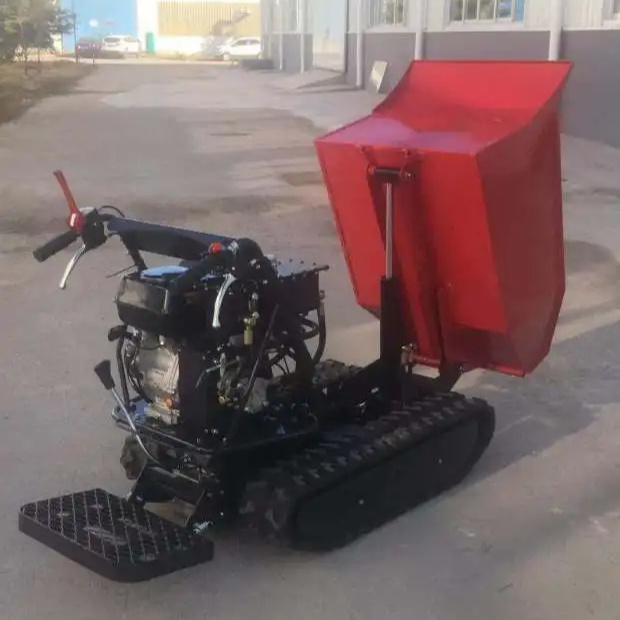

Hot selling mini rubber track dumper 500kg 800kg 1000kg self-loading mini transporter dumper with lift and crane
Soft, wet or perilously uneven ground can present quite a challenge to a dump truck or pickup, especially when you need to move a heavy load from Point A to Point B. Getting stuck can put a big dent in productivity. That’s not a problem with a powerfully compact Tracked Carrier. The durable rubber tracks give you the high-flotation, low ground pressure capability to productively operate in muddy, sloppy, gnarly conditions, while minimizing disturbance to environmentally sensitive areas. These rugged carriers can get into, around or under a lot of spaces that nothing else mechanized can. Plus, each comes with a powerful, emissions- compliant, fuel-efficient diesel engine, so you won’t waste precious uptime – or money – with endless fill-ups.
|
Engine
|
Gasoline engine170 7HP/ diesel engine 178F 6HP
|
|
Starting Method
|
Hand or electric start(choosed)
|
|
Body weight
|
240KG
|
|
Gear
|
6F+2R
|
|
Loading capacity
|
400KG
|
|
Tip
|
Hydraulic
|
|
Lift
|
Choosed
|
|
Caterpillar track
ground length
|
70cm
|
|
Caterpillar track size
|
150×60×37
|
|
Hopper size(outsize)
|
900×700×400mm
|
|
Overall size
|
1320x680x1250mm
|
Detailed Images
|
Parameters/Model
|
1T
|
1.5T
|
2T
|
3T
|
4T
|
6T
|
8T
|
|
engine
|
CLF 192F
9kw
|
16.2kw
2200r/min
|
18.3kw
2200r/min
|
22kw
2200r/min
|
38kw
2400r/min
|
50kw
2400r/min
|
60kw
2200r/min
|
|
Body weight
|
460kg
|
1100kg
|
1200kg
|
1400kg
|
1400kg
|
1650kg
|
2800kg
|
|
Gear
|
2F+1R
|
3F+1R
|
6F+2R
|
6F+2R
|
6F+2R
|
6F+2R
|
3F+1R
|
|
Load weight
|
1000kg
|
1500kg
|
2000kg
|
3000kg
|
4000kg
|
6000kg
|
8000kg
|
|
Highest speed
|
13km/h
|
12km/h
|
12km/h
|
12km/h
|
15km/h
|
15km/h
|
15km/h
|
|
Minimum walking speed
|
2km/h
|
2.5km/h
|
2.5km/h
|
2.5km/h
|
2.5km/h
|
2.5km/h
|
3km/h
|
|
Obstacle crossing ability
|
Maximum40°(≯40°)
|
Maximum40°(≯40°)
|
Maximum40°(≯40°)
|
Maximum40°(≯40°)
|
Maximum40°(≯40°)
|
Maximum40°(≯40°)
|
Maximum35°(≯35°)
|
|
Wading depth
|
30cm
|
35cm
|
35cm
|
45cm
|
45cm
|
45cm
|
50cm
|
|
Track size
|
180*72*42mm
|
280*90*48mm
|
280*90*48mm
|
320*90*56mm
|
320*90*56mm
|
320*90*56mm
|
320*90*70mm
|
|
Bucket size
|
1200*1000*490mm
|
1800*1300*500
|
2000*1500*600mm
|
2200*1500*600mm
|
2300*1600*600mm
|
2500*1800*600mm
|
2500*2000*800mm
|
|
Vehicle size
|
2000*1000*1200mm
|
2800*1300*1500mm
|
3350*1500*1700mm
|
3350*1500*1740mm
|
3650*1620*1740mm
|
3950*1740*1800mm
|
3900*2000*1960mm
|
Lifts bucket
Shredder
Cranes
Custom seat
Diesel/gasoline
Remote control
All-terrain small crawler transporter, family transport equipment to meet the transportation needs of your farm
