1). HDMI Input (Max 1920 * 1080P /60fps)
2). MPEG4 /H.264 Baseline /High /Main Profile
3). HTTP, RTSP, RTMP, UDP /RTP, ONVIF
4). Remote Management In WAN (Web)
5). 1U /3U Chassis With 4 /8 /16 Channels
6). For IPTV, Live Streaming Broadcast, Hotel System, Video Conference, Media Server Ect,.
- Product Details
- {{item.text}}
Quick Details
-
Input:
-
HDMI (Audio Bulid-in)
-
Output:
-
Ethernet Port (RJ45)
-
Streaming Protocol:
-
HTTP, RTSP, RTMP, UDP /RTP, ONVIF
-
Max Input Resolution:
-
1920 * 1080P /60fps
-
Video Encoding Format:
-
MPEG-4 /H.264
-
Audio Encoding Format:
-
AAC, MP3, G.711
-
Bit Rate Control:
-
16Kbps to 12Mbps For CBR /VBR
-
Application:
-
Hotel IPTV System, Live Streaming Broadcast, Media Server
-
Power Dissipation:
-
5W /Pcs (For Single Unit ); 5W /Channel
-
Certification:
-
CE FCC ROHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
URay
-
Model Number:
-
UHE264
-
Input:
-
HDMI (Audio Bulid-in)
-
Output:
-
Ethernet Port (RJ45)
-
Streaming Protocol:
-
HTTP, RTSP, RTMP, UDP /RTP, ONVIF
-
Max Input Resolution:
-
1920 * 1080P /60fps
-
Video Encoding Format:
-
MPEG-4 /H.264
-
Audio Encoding Format:
-
AAC, MP3, G.711
-
Bit Rate Control:
-
16Kbps to 12Mbps For CBR /VBR
-
Application:
-
Hotel IPTV System, Live Streaming Broadcast, Media Server
-
Power Dissipation:
-
5W /Pcs (For Single Unit ); 5W /Channel
-
Certification:
-
CE FCC ROHS
Product Details
HDMI Encoder H.264
HDMI Encoder H.264 With HDMI Loop Out
1). HDMI + Independent Audio Input
2). MPEG4 /H.264 Baseline /High /Main Profile
3). HTTP, RTSP, RTMP, UDP /RTP, ONVIF
4). Remote Management In WAN (Web)
5). 1U /3U Chassis With 4 /8 /16 Channels
6). For IPTV, Live Streaming Broadcast, Hotel System, Video Conference, Media Server Ect,.
HDMI+CVBS+R /L Audio Encoder H.264
1). HDMI + A/V Input
(Max 1920 * 1080P /60fps)
2). MPEG4 /H.264 Baseline /High /Main Profile
3). HTTP, RTSP, RTMP, UDP /RTP, ONVIF
4). Remote Management In WAN (Web)
5). 1U /3U Chassis With 4 /8 /16 Channels
6). For IPTV, Live Streaming Broadcast, Hotel System, Video Conference, Media Server Ect,.

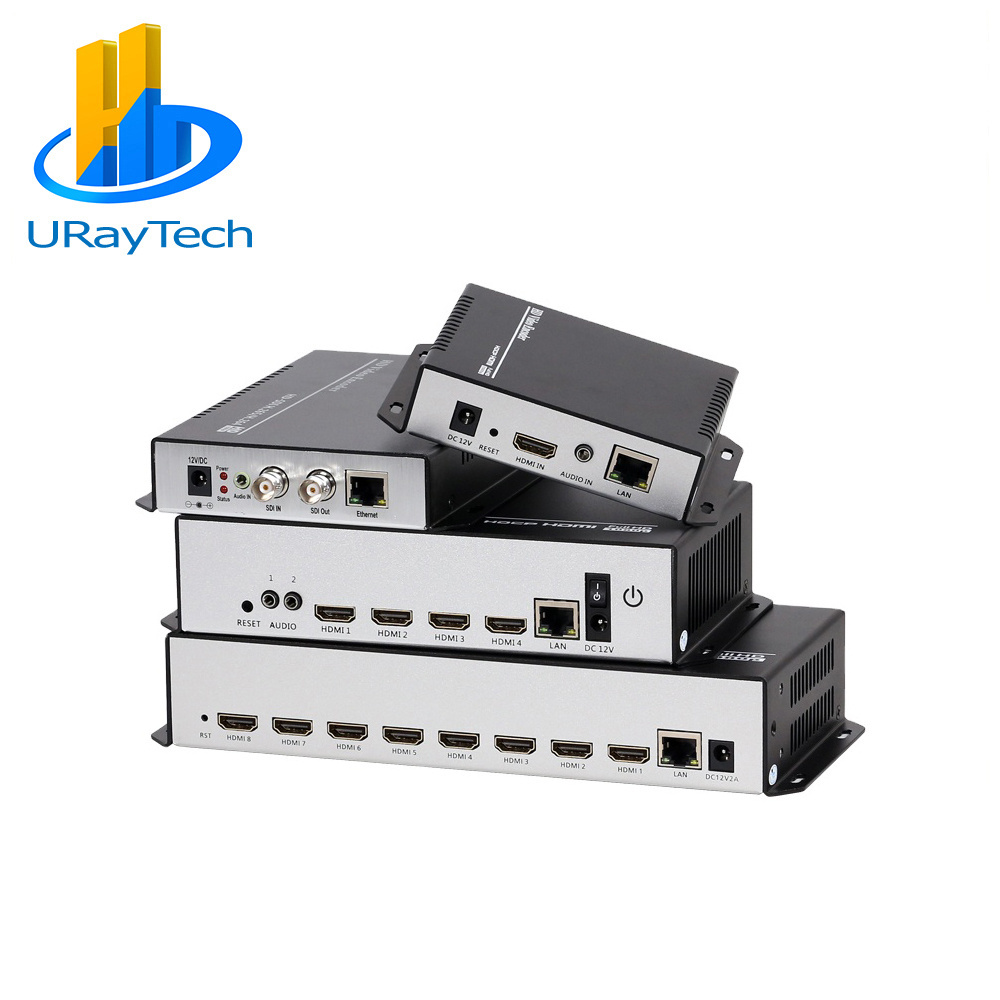

1U /4 Channels HDMI Encoder H.264
1). 4 Channels HDMI Input
2). MPEG4 /H.264 Baseline /High /Main Profile
3). HTTP, RTSP, RTMP, UDP /RTP, ONVIF
4). Remote Management In WAN (Web)
5). 1U /3U Chassis With 4 /8 /16 Channels
6). For IPTV, Live Streaming Broadcast, Hotel System, Video Conference, Media Server Ect,.
3U /8 Channels HDMI Encoder H.264
1). 8 Channels HDMI Input
2). MPEG4 /H.264 Baseline /High /Main Profile
3). HTTP, RTSP, RTMP, UDP /RTP, ONVIF
4). Remote Management In WAN (Web)
5). 1U /3U Chassis With 4 /8 /16 Channels
6). For IPTV, Live Streaming Broadcast, Hotel System, Video Conference, Media Server Ect,.
3U /16 Channels HDMI Encoder H.264
1). 16 Channels HDMI Input
2). MPEG4 /H.264 Baseline /High /Main Profile
3). HTTP, RTSP, RTMP, UDP /RTP, ONVIF
4). Remote Management In WAN (Web)
5). 1U /3U Chassis With 4 /8 /16 Channels
6). For IPTV, Live Streaming Broadcast, Hotel System, Video Conference, Media Server Ect,.
Contact us
If you have any question or need help from us, please
send us an inquiry
or contact us
with following contact information, Linda will reply to you quickly.
Main Feature
1. Support MPEG-4 /H.264 baseline /main /high profile encoding
2. Support MPEG1 audio Layer2 audio coding
3. 16Kbit/s to 12Mbit/s for CBR /VBR code rate controlling
4. Network interface full-duplex mode with 1000M speed
5. Up to 720P, 1080P HD video input
6. Support TS dual-stream output (Mainstream and Secondstream)
7. Support HDCP and HD blue-ray
8. Support HTTP, UDP /RTP, RTSP, RTMP, ONVIF streaming protocol
9. Support English WEB operating interface and Language customizable
10. A wide area network remote management (Web control panel)
11. Support image and text parameter settings
12. Support different protocol transmission for the main stream & second stream
13. Support output video stream resolution setting
14. Support MP3 and AAC and G.711 audio format selection
15. Support GOP frame rate settings
16. A click to restore the default configuration
17. Decoding the set-top box
18. Low-power design (Less than 5W/pcs)
19. Support 4, 8, 16 channels 1U /3U chassis structure
Specification
|
Model No.
|
|
UHE264
|
|
|
Video
|
Video Input
|
HDMI (Audio Build-in)
|
|
|
|
Video Resolution
|
1920*1080_60I /60P, 1920*1080_50I, 1280*720_60P, 1280*720_50P and below ect,.
|
|
|
|
Video Output
|
Ethernet Port (RJ45)
|
|
|
|
Video Encoding
|
MPEG-4 /H.264
|
|
|
|
Code Rate Control
|
16Kbps to 12Mbps For CBR /VBR
|
|
|
|
GOP Structure
|
IBBP
|
|
|
|
Video Pre-processing
|
De-interlacing, Noise Reducing And Sharpening
|
|
|
Audio
|
Audio Encoding
|
AAC, MP3, G.711
|
|
|
|
Sampling Rate
|
Auto
|
|
|
|
Bit-rate
|
32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K
|
|
|
|
Sampling Accuracy
|
24 Bit
|
|
|
|
Audio Data-rate
|
64Kb /S to 384Kb /S
|
|
|
Network
|
RJ45
|
1000M Interface
|
|
|
|
Program Streaming
|
HTTP, UDP, RTSP, RTMP, ONVIF, RTP
|
|
|
|
Control Panel
|
WEB Panel (Chinese & English Version) (Language Customizable)
|
|
|
|
Firmware Update
|
Enable by Uploading Files To Dashboard
|
|
|
General
|
Dimension (W* L* H)
|
170 * 130 * 30 /mm for 1 channel;
310 * 200 * 50 /mm for 1U chassis;
483 * 300 * 130 /mm for 3U chassis;
|
|
|
|
|
0.5KG /Pcs for single channel;
4kg /Pcs for 1U chassis;
8.5kg /Pcs for 3U chassis;
|
|
|
|
Temperature
|
0 to 45(For Working), -20 to 80(For Storing)
|
|
|
|
Input Voltage
|
DC 12V (for single unit);
AC 220V for 1U /3U chassis;
|
|
|
|
Power Consumption
|
5W /Pcs for single unit;
5W /Channel for 1U /3U chassis;
|
|
