Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UTECH
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
2950*1980*1750mm
-
Power (kW):
-
28
-
Weight (KG):
-
1800
-
Working Area:
-
2200*4000*300mm
-
Table Structure:
-
Vaccum&T-slot table
-
Driving System:
-
Japan YASKAWA servo motor&driver
-
Spindle Motor:
-
9kw ATC air cooling spindle
-
Control system:
-
NK280 industrial control system
-
Structure:
-
Split machine table/lathe bed
-
Advantage:
-
SHIMPO reducer 1:10
-
Inverter:
-
Hpmont 11kw
-
Tool magazine:
-
Carousel Tools Changer 8pcs
-
Drawing software:
-
Artcam, Aspire, JD Paint
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UTECH
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
2950*1980*1750mm
-
Power (kW):
-
28
-
Weight (KG):
-
1800
-
Working Area:
-
2200*4000*300mm
-
Table Structure:
-
Vaccum&T-slot table
-
Driving System:
-
Japan YASKAWA servo motor&driver
-
Spindle Motor:
-
9kw ATC air cooling spindle
-
Control system:
-
NK280 industrial control system
-
Structure:
-
Split machine table/lathe bed
-
Advantage:
-
SHIMPO reducer 1:10
-
Inverter:
-
Hpmont 11kw
-
Tool magazine:
-
Carousel Tools Changer 8pcs
-
Drawing software:
-
Artcam, Aspire, JD Paint
Product Description

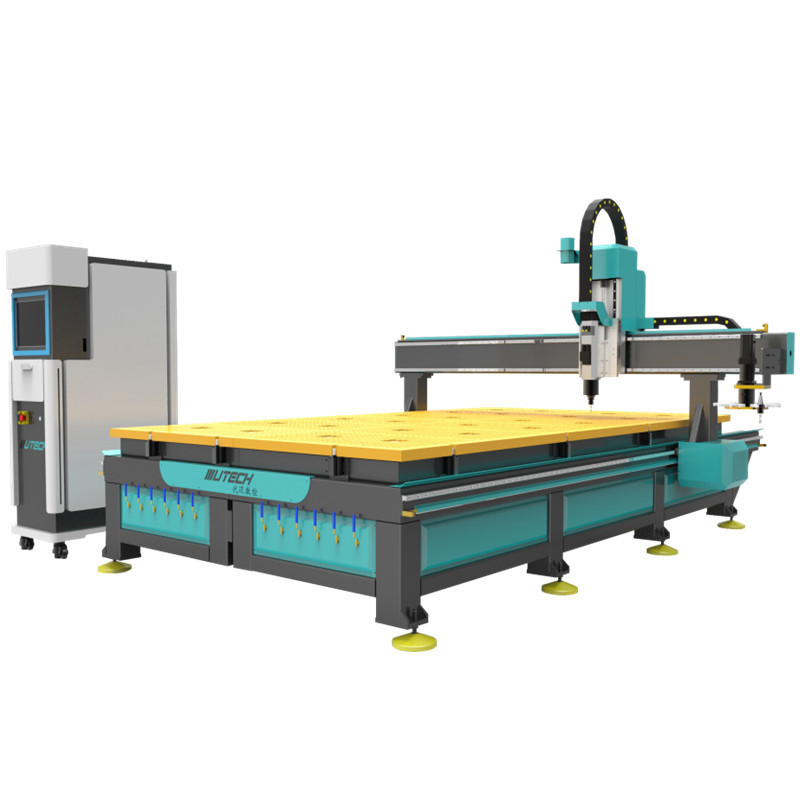

UTECH 1325 ATC CNC Cutting Machine controller engraving cnc engraver router for aluminum metal acrylic foam cutter machinery
The split structure meets the needs of the size to enter the container.
✬Double-layer vacuum adsorption table
✭Splicing bed---Two 1100*4000mm lathe bed.
❆Carousel automatic tool changer
❊Industrial computer control+Wireless hand wheel
♕YASKAWA 850w servo motor&driver
♕ 1.5M helical rack gear transmission, Japan SHIMPO reducer structure 1:10
♆14 pcs Positioning cylinder
Details Images
9kw HQD ATC Air Cooled Spindle (HSD is optional)
High precision 9kw air cooling ATC spindle motor, after twice dynamic balance precision testing, can ensure the machining accuracy. Is equipped with an ISO30 tool holder and ER32 collect, programmable speeds of up to 24,000 RPM.
Automatic Tool Calibrater
The equipment with the tool calibrated can automatically set the offset value of the tool to the workpiece coordinate system after the tool is set so that the workpiece coordinate system can be automatically established. In this way, the setting of the workpiece coordinate value can be easily realized. It can be said that the use of the tool setting instrument not only saves time but also improves efficiency.
Carousel automatic tool changer
According to the different needs of different customers, there’re different tool magazine capacities that can be chosen, 4, 8, 10, 12, 16, or more, when changing the tool, the machine head moves to the tool magazine, selects the required tool, and returns to continue carving. Realize quick tool change, and improve work efficiency. The tool changer can be placed next to the spindle or on the side of the gantry. This carousel tool change method has the feature of faster tool change speed, so the production efficiency is higher. In addition, this tool change method makes the machine run more stably, which can ensure higher machining accuracy and higher processing quality.
Positioning Cylinder
For the standard 1325, the positioning cylinders are usually distributed in 2 on the X-axis and 3 on the Y-axis. These pneumatic devices form an L-shaped right angle. Function: Position the plate to be processed, reduce the time of manual positioning of the plate, and improve the efficiency of plate feeding. After installing the positioning cylinder, it is possible to ensure that each sheet is placed in the same position, without repeating the definition of the workpiece origin to ensure the positioning accuracy, which is simple to operate and saves time. The main point is safety performance. The positioning of the cylinder is also controlled by the control system's program. It has a cross-border protection device. When the positioning shaft of the cylinder extends, the machine automatically stops working to prevent the spindle tool from cutting the cylinder or the cylinder shaft from damaging the tool. , Can avoid unnecessary losses in a limited way.
SHIMPO Reducer
UTECH equipment is equipped with a standard reducer structure---patented step reducer/Japan SHIMPO reducer 1:5/1:10. Compared with the reduction gear and the structure inside the gearbox, the belt of the timing belt has a certain tension and is easy to loosen. It is often necessary to change the belt. There is also a gearbox for the machine to decelerate. When the machine needs to decelerate and stop, the gearbox has no effect. Obviously, and due to the use of timing belts, great inertia is easy to slip and overtravel.
The reducer has the characteristics of low backlash, low noise, high strength, and accurate deceleration effect.
Transmission
UTECH ATC CNC Series Rack adopts a high-precision 1.5M helical gear rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, at high speed, high precision, and low noise. Adapt PMI 25 Linear guide+Flange slider+precision 1.5M helical rack transmission structures can ensure that Running stably and reliably, the working life is long, and the machine can keep working for a long time.
Vacuum Table&T-slot Table
Unique multipurpose bakelite plate vacuum and aluminum clamping bed, with 4-8 adsorption zone, could be independent control to achieve adsorb and clamp.
The vacuum table is with multi zones, which allows the operator to switch from full sheet processing to smaller part processing. Every vacuum zone is controlled by separated valves on the front of the machine, and whole vacuum zones are with one general valve to control.
Weihong NK280B Controller
NK280B is widely used in CNC engraving and milling machines/engraving machines. It is one of the representatives of Weihong's highly reliable and cost-effective motion control system; supports 4-axis linkage; supports Yaskawa M-II and Weizhi servo bus absolute value; serial Communication; I/O can be expanded with an 8-inch LCD display, embedded platform, and customers can carry out secondary development of the process.
Wireless hand wheel
It is an operating tool when the engraving and milling machine is manually moved. It is used in the correction of the origin of the CNC machine tool and the division of the signal, and the operation is convenient.
