Quick Details
-
Structure:
-
0
-
Weight:
-
1Kg
-
Power:
-
0
-
Dimension(L*W*H):
-
15cm*10cm*10cm
-
Certification:
-
ISO9002-2008
-
Product name:
-
hydraulic pipe fitting
-
Application:
-
hydraulic system Gas Oil Water
-
Color:
-
Silver/yellow
-
Standard:
-
EATON/PARKER
-
Size:
-
1/4"~2"
-
Model Number:
-
22692-08-08
-
Head code:
-
Cone
-
Technics:
-
Hot forged
-
Connection:
-
Female
-
material:
-
Carbon Steel 45#
Quick Details
-
Brand Name:
-
RONGSHUN
-
Place of Origin:
-
Guangdong, China
-
Pressure:
-
extrusion
-
Structure:
-
0
-
Weight:
-
1Kg
-
Power:
-
0
-
Dimension(L*W*H):
-
15cm*10cm*10cm
-
Certification:
-
ISO9002-2008
-
Product name:
-
hydraulic pipe fitting
-
Application:
-
hydraulic system Gas Oil Water
-
Color:
-
Silver/yellow
-
Standard:
-
EATON/PARKER
-
Size:
-
1/4"~2"
-
Model Number:
-
22692-08-08
-
Head code:
-
Cone
-
Technics:
-
Hot forged
-
Connection:
-
Female
-
material:
-
Carbon Steel 45#

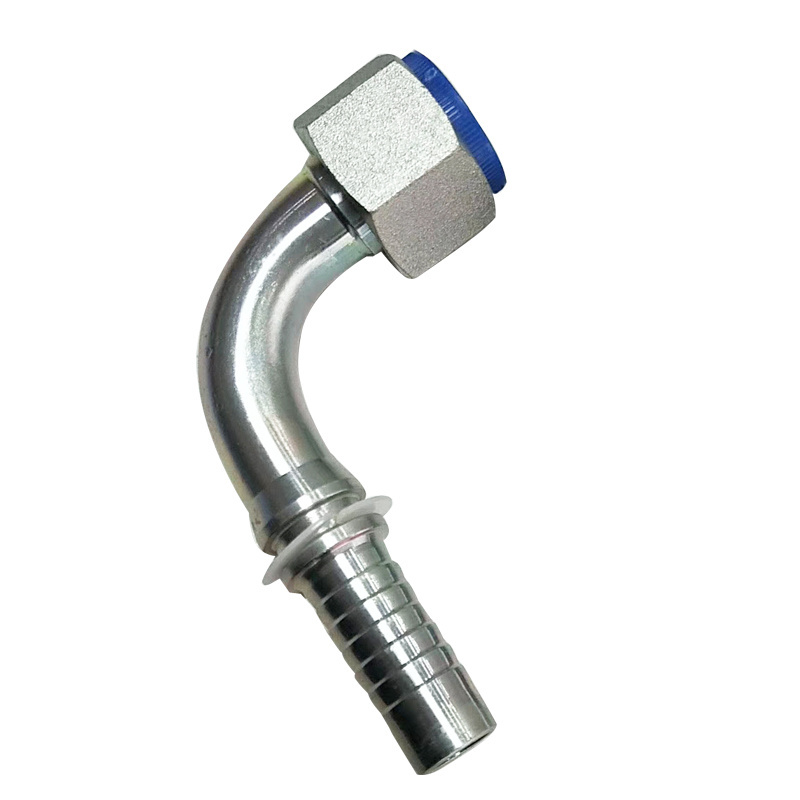

90° BSP FEMALE60°CONE
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | C | S2 | H | ||
| 22691-04-04 | G1/4"X19 | 6 | 4 | 5.5 | 19 | 38 |
| 22691-06-04 | G3/8"X19 | 6 | 4 | 6.3 | 22 | 38 |
| 22691-06-05 | G3/8"X19 | 8 | 5 | 6.3 | 22 | 41 |
| 22691-06-06 | G3/8"X19 | 10 | 6 | 6.3 | 22 | 45.8 |
| 22691-08-06 | G1/2"X14 | 10 | 6 | 7.5 | 27 | 45.8 |
| 22692-08-08 | G1/2"X14 | 12 | 8 | 7.5 | 27 | 53 |
| 22692-10-08 | G5/8"X14 | 12 | 8 | 9.5 | 30 | 53 |
| 22692-10-10 | G5/8"X14 | 16 | 10 | 9.5 | 30 | 61 |
| 22692-12-08 | G3/4"X14 | 12 | 8 | 10.9 | 32 | 53 |
| 22692-12-10 | G3/4"X14 | 16 | 10 | 10.9 | 32 | 61 |
| 22692-12-12 | G3/4"X14 | 20 | 12 | 10.9 | 32 | 69 |
| 22692-16-12 | G1"X11 | 20 | 12 | 11.7 | 41 | 69 |
| 22692-16-16 | G1"X11 | 25 | 16 | 11.7 | 41 | 76.5 |
| 22692-20-16 | G1.1/4"X11 | 25 | 16 | 11 | 50 | 76.5 |
| 22692-20-20 | G1.1/4"X11 | 32 | 20 | 11 | 50 | 90 |
| 22692-24-24 | G1.1/2"X11 | 40 | 24 | 13 | 55 | 105 |
| 22692-32-32 | G2"X11 | 50 | 32 | 16 | 70 | 122.3 |
GuangZhou Rongshun Machinery parts Co.,Ltd.,Located in Guangzhou City, Guangdong Province.The factory covers an area of 3000 square meters, It is a collection of production,sales for the integration of hydraulic fittings manufacturers. Our products include: Hydraulic hose, Hydraulic hose fitting, Ferrule, Flange, Flange clamp, Adapter etc. Our products have been widely used in various industries like engineering machinery, coalmines,chemicals,metallurgy,petroleum,automobile,shipbuilding,aviation and transport.
We execute relevant national standards,American SAE standard and German DIN standard, We can also manufacture according to customer standard.Welcome to trade with us.We will provide warm services to you.
1 Q: Do you know the Detail Size for the fitting?
A: Of couse,We have a database for all kinds of fitting.
2 Q: Are these fittings standard in size?
A: These are standard size fitting.
3 Q: Are you a factory or a Trade Company for fitting?
A: We are the factory and a trade Company.
4 Q: Could you supply free sample of fitting for our test?
A: Yes,Free sample can be offer. But you need to pay for shipping.
5 Q: Do you have stocks?
A: Yes.Most of the fitting showing on alibaba are in stock.
If you have another question, please contact us .
