Ncstudio Controller
Simple and easy for freshman to learn and operate the machine.can support G codes drawing,such as dxf,3ds,stl,psd,ai,dwg,bmp,stp,igs etc.
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
New Product 2024
-
Rated Power:
-
7kw
-
Engraving Speed:
-
0-10000mm/min
-
Main Axle Rotational Speed:
-
0-24000rpm/min
-
Feeding Height:
-
200mm
-
Milling Cutter Diameter:
-
3.175, 4, 6, 8,12.7mm
-
Application:
-
metal and nonmetal materials
-
Dimensions:
-
1.8 *1.7 * 1.6
-
Weight (KG):
-
1800
-
Spindle power:
-
3.0KW Constant Power Spindle
-
Motor:
-
Servo motor
-
Controller:
-
Ncstudio / DSP / TK100 Controller
-
Table:
-
Movable T-slot cast iron table
-
Transmission:
-
Gear Rack
-
Inverter:
-
Taiwan Delta Inverter
-
Driving system:
-
Leadshine Drive
-
Color:
-
Customizable
-
Guide rail:
-
Taiwan HIWIN Square Guide Rail
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FIRMCNC
-
Machine Type:
-
CNC Router
-
Marketing Type:
-
New Product 2024
-
Rated Power:
-
7kw
-
Engraving Speed:
-
0-10000mm/min
-
Main Axle Rotational Speed:
-
0-24000rpm/min
-
Feeding Height:
-
200mm
-
Milling Cutter Diameter:
-
3.175, 4, 6, 8,12.7mm
-
Application:
-
metal and nonmetal materials
-
Dimensions:
-
1.8 *1.7 * 1.6
-
Weight (KG):
-
1800
-
Spindle power:
-
3.0KW Constant Power Spindle
-
Motor:
-
Servo motor
-
Controller:
-
Ncstudio / DSP / TK100 Controller
-
Table:
-
Movable T-slot cast iron table
-
Transmission:
-
Gear Rack
-
Inverter:
-
Taiwan Delta Inverter
-
Driving system:
-
Leadshine Drive
-
Color:
-
Customizable
-
Guide rail:
-
Taiwan HIWIN Square Guide Rail
Product Description

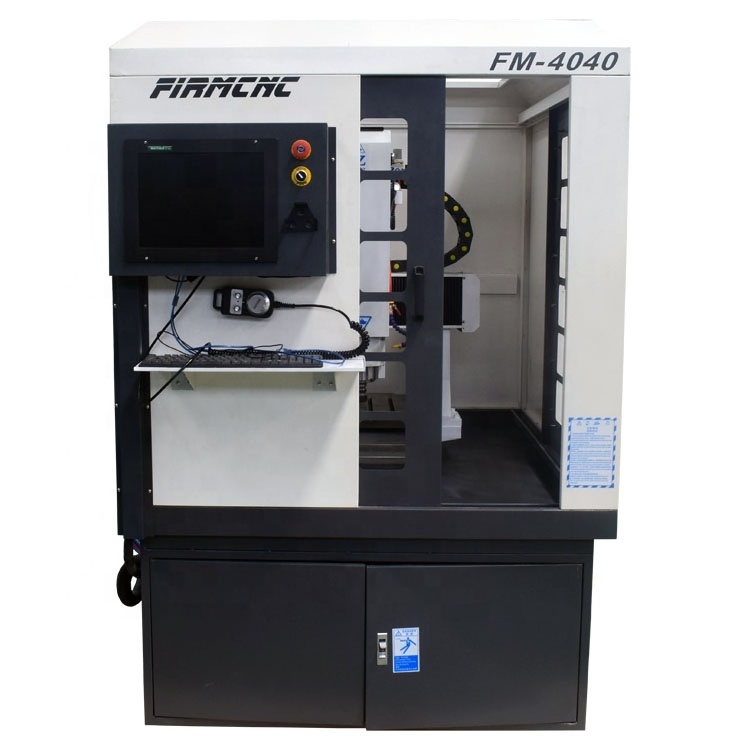

Brief introduction of cnc mould milling machine
1. Whole machine cast by iron, very strong, table moving, high precision.
2. Imported Hiwin square rails and TBI ball screw for 3 axis.
3. Japan Yaskawa servo motor and drivers,leadshine hybrid servo motor for option.
4. TK100 controller, DSP control system, NC Studio and Mach3 for option.
5. Machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components
|
Description
|
Parameters
|
|
|
|
|||
|
Model
|
FM4040
|
FM4050
|
FM6060
|
FM6080
|
|||
|
Table Bed Size (mm)
|
400* 400mm
|
400* 500mm
|
600* 600mm
|
600* 800mm
|
|||
|
Working Accuracy (mm)
|
≤0.01mm
|
|
|
|
|||
|
X,Y,Z Traveling Positioning Accuracy (mm)
|
≤0.01mm
|
|
|
|
|||
|
Spindle Power (kw)
|
3 kw constant water cooling spindle
|
|
|
|
|||
|
Spindle Speed (RPM)
|
24000rpm/min
|
|
|
|
|||
|
Control system
|
Ncstudio / DSP / TK100 controller
|
|
|
|
|||
|
Driving System
|
Japan YASKAWA Servo motor and drivers
|
|
|
|
|||
|
X,Y,Z axis guide rail
|
Taiwan HIWIN guide rail
|
|
|
|
|||
|
X,Y,Z axis transmission
|
Taiwan TBI Ball screw
|
|
|
|
|||
|
Max. Idling Speed
|
60m/min
|
|
|
|
|||
|
Max. Working speed
|
40m/min
|
|
|
|
|||
|
Frame Structure
|
Whole iron cast bed structure
|
|
|
|
|||
|
Table Type
|
Movable T-slot cast iron table
|
|
|
|
|||
|
Working Voltage
|
380V/3P/50-60HZ
|
|
|
|
|||
|
Format of Instructions
|
G code
|
|
|
|
|||
|
Diameter of Cutter
|
φ3.175-φ12.7
|
|
|
|
|||
|
Cooling Mode
|
Water-cooling
|
|
|
|
|||
|
Interface
|
USB
|
|
|
|
|||
|
Running circumstance
|
Temperature: 0℃~45℃ Relative humidity: 30%~75
|
|
|
|
|||
Detailed Images
Leadshine stepper motors and drivers
Most famous brand of China,won't lose step when working,speed performance increased about 30%,adopted cuttent control system technology,save power consumption,especially for solid wood and soft metals works,it's very powerful
Movable T-slot cast iron table
Cast by iron, very strong, table moving, high precision.
3.0kw water cooling spindle
Easy installation, low maintenance costs, long life, torque, high precision, high vibration vibration
Herion Helical Rack
WMH Herion helical rack and pinion drives provide accurate and dynamic acceleration. Their durable design ensures a long service life with minimal maintenance. Capable of precisely moving heavy loads.
HIWIN square gudie rail
HIWIN/PMI guide rails for precision machining at high-speeds. Energy-saving operation and long service life.
Samples of cnc mould milling machine
1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2.Widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3.Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand,
graphics and words of three-dimensional and outside surface's sleeking of large size.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1.8M (L) * 1.7M (W) * 1.6(H)
|
|
|
Weight
|
1200KG
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Certifications
Related Products
FAQ
1.Can you recommend a cnc milling machine to me ?
Yes, In order to give you a suitable cnc milling machine,pls tell me your working area ? processing materials ?
Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.
