Quick Details
-
Weight:
-
1-25ton
-
Thermal efficiency:
-
92.5-99.8%
-
Rated working pressure:
-
1.0Mpa
-
Material:
-
Special Boiler Steel Plate
-
Steam temperature:
-
184
-
Capacity:
-
1-25t/h
-
Electricity power:
-
13.7kw
-
Water capacity:
-
3-25
-
Fuel consumption:
-
204
-
Grate area:
-
1.97
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xinda Boiler
-
Dimension(L*W*H):
-
4316*2200*2705mm
-
Weight:
-
1-25ton
-
Thermal efficiency:
-
92.5-99.8%
-
Rated working pressure:
-
1.0Mpa
-
Material:
-
Special Boiler Steel Plate
-
Steam temperature:
-
184
-
Capacity:
-
1-25t/h
-
Electricity power:
-
13.7kw
-
Water capacity:
-
3-25
-
Fuel consumption:
-
204
-
Grate area:
-
1.97
Product Description

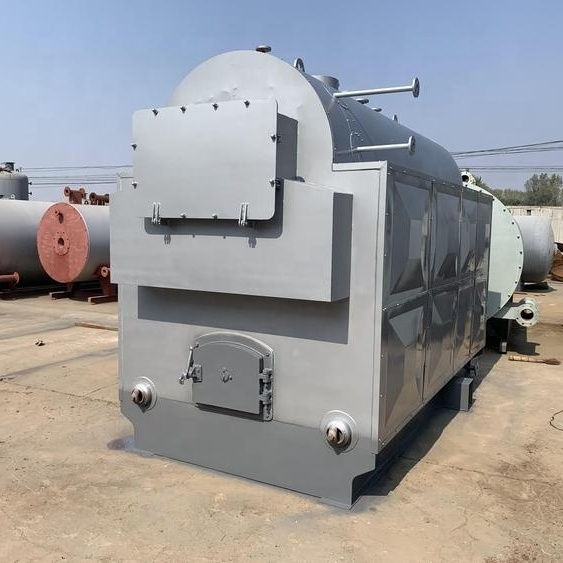

Horizontal 1tph to 16tph Coal Fired Moving Grate Stoker Solid Fuel Steam Boiler For Paper Factory
Industrial DZH Series Horizontal Hand Moving Grate Coal Fuel Steam Boilers
Model:DZH Type Moving Grate Stoker Boiler
Structure:WaterTube Fire Tube Three Pass
Rated Steam Capacity:1-10 ton/hr
Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature:170/184/194/204/225 C
Application:Textile Mill, Food & Beverage, Chemical, Rubber, Printing Plant, Paper Mill, Wood Processing
Model:DZH Type Moving Grate Stoker Boiler
Structure:WaterTube Fire Tube Three Pass
Rated Steam Capacity:1-10 ton/hr
Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature:170/184/194/204/225 C
Application:Textile Mill, Food & Beverage, Chemical, Rubber, Printing Plant, Paper Mill, Wood Processing
Product Advantages
Technical Parameters
|
Boiler Model
|
DZH1-1.0
|
DZH2-1.25
|
DZH4-1.25
|
DZH6-1.25
|
DZH8-1.25
|
||||
|
Rated steam capacity(T/H)
|
1
|
2
|
4
|
6
|
8
|
||||
|
Rated steam pressure(Mpa)
|
1.0
|
1.25
|
1.25
|
1.25
|
1.25
|
||||
|
Rated steam temperature(℃)
|
184
|
194
|
194
|
194
|
194
|
||||
|
Thermal efficiency(%)
|
>82
|
|
|
|
|
||||
|
Fuel type
|
Biomass, wood,coal
|
|
|
|
|
||||
|
Fuel consumption(Kg/h)
|
187
|
375
|
758
|
1125
|
1508
|
||||
|
Max transportation weight(t)
|
15.2
|
23.8
|
27
|
40
|
45
|
||||
Accessories
Fuel
Application
Packing&Shipping
