Quick Details
-
Range of Spindle Speed(r.p.m):
-
90 - 2000 r.p.m
-
Width of bed (mm):
-
187
-
Max. Turned Length (mm):
-
750 mm
-
Spindle Motor Power(kW):
-
1.5KW
-
Year:
-
2020
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANDONG HUAWEI
-
Model Number:
-
CQ6236
-
Voltage:
-
220V/380V,
-
Dimension(L*W*H):
-
1950*750*1500
-
Weight (KG):
-
670 KG
-
Name:
-
yangtuo manual plato de torno cq6236 lathe machine
-
Color:
-
Customers' Requirement
-
Spindle taper:
-
MT-6
-
Precision:
-
High Precision Machine
-
Function:
-
Metal Turning
-
Swing over cross slide:
-
212
-
Chuck:
-
3/4 Jaw Chuck
-
Max.swing over bed:
-
491
-
Machine Type:
-
conventional lathe
-
Key words:
-
Factory hot sale manual plato de torno cq6236 lathe machine
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
38
-
Range of Spindle Speed(r.p.m):
-
90 - 2000 r.p.m
-
Width of bed (mm):
-
187
-
Max. Turned Length (mm):
-
750 mm
-
Spindle Motor Power(kW):
-
1.5KW
-
Year:
-
2020
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANDONG HUAWEI
-
Model Number:
-
CQ6236
-
Voltage:
-
220V/380V,
-
Dimension(L*W*H):
-
1950*750*1500
-
Weight (KG):
-
670 KG
-
Name:
-
yangtuo manual plato de torno cq6236 lathe machine
-
Color:
-
Customers' Requirement
-
Spindle taper:
-
MT-6
-
Precision:
-
High Precision Machine
-
Function:
-
Metal Turning
-
Swing over cross slide:
-
212
-
Chuck:
-
3/4 Jaw Chuck
-
Max.swing over bed:
-
491
-
Machine Type:
-
conventional lathe
-
Key words:
-
Factory hot sale manual plato de torno cq6236 lathe machine
Product Description

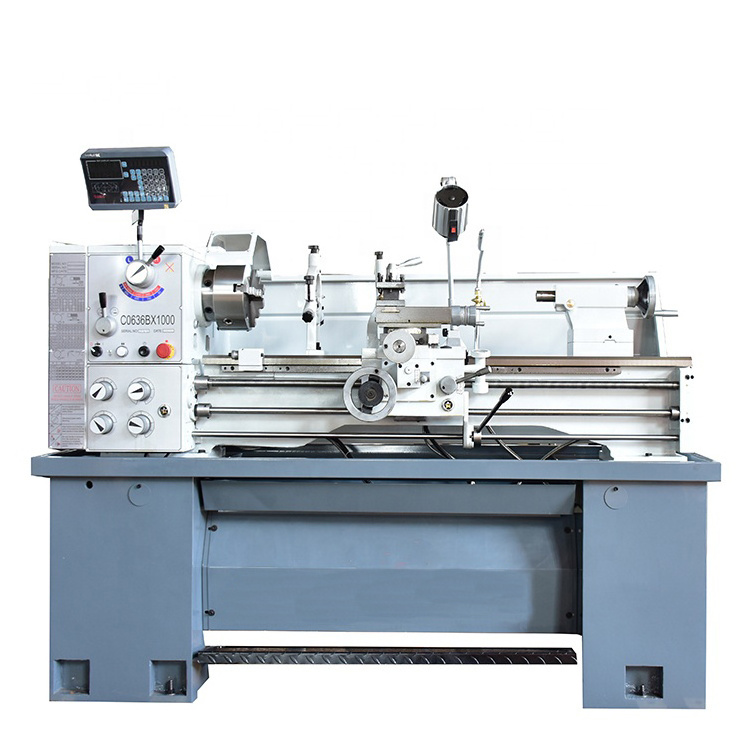

C0636B manual horizontal lathe machine conventional lathe
Application:
• variable speed as optional
• Precision ground and hardened bed ways
• The spindle is supported with precision roller bearings
• Head stock gears are made of high quality steel ground and hardened
• Removable gap is provided for larger diameter work
• Easy operating gear box has various feeds and thread cutting function
` • Circular appearance as optional
• Φ51mmbig spindle bore as optional
|
specification
|
|
|
||
|
Item
|
CQ6232B×1000
|
CQ6236B×1000
|
||
|
Maching Capacity
|
|
|
||
|
Max.swing over bed
|
330mm
|
360mm
|
||
|
Max.swing over cross slide
|
198mm
|
212mm
|
||
|
Max.swing in gap
|
476mm
|
491mm
|
||
|
Max.length of workpiece
|
750or1000mm
|
|
||
|
Width of bed
|
187mm
|
|
||
|
Spindie
|
|
|
||
|
Spindie speed range
|
70-2000rpm pr 90-2000rpm
|
|
||
|
Spindie bore
|
Φ38mm or Φ51mm
|
|
||
|
Spindie nose
|
D1-4" or D 1-5
|
|
||
|
Taper of spindle bore
|
MT5 OR MT6
|
|
||
|
Center height
|
166mm
|
178mm
|
||
|
Thread cutting
|
|
|
||
|
Threads metric pitches
|
0.4-7mm/32kinds
|
|
||
|
Threads imperialpitches
|
5-56TPI/32kinds
|
|
||
|
Threads diametral pitches
|
8-120DP/32kinds
|
|
||
|
Threads module pitches
|
0.2-305MP/27kinds
|
|
||
|
Range of feeds
|
|
|
||
|
Compound rest travel
|
90mm
|
|
||
|
Cross slide travel
|
170mm
|
|
||
|
Max.section of tool
|
16×16mm
|
|
||
|
Longitudinal feeds range
|
0.082-0.2.713mm/rev(Metric Lathe） 0.0032-0.1.68in /rev(lnch lathe）
|
|
||
|
Cross feeds range
|
0.017-0.746mm/rev(Metric lathe）0.0011-0.0367 in/rev(lich lathe)
|
|
||
|
Tailstock Sleeve
|
|
|
||
|
External diameter
|
32mm
|
|
||
|
Max.travel
|
100mm
|
|
||
|
Taper of bore
|
MT3
|
|
||
|
Motor
|
|
|
||
|
Mainmotor power
|
1.5KW
|
|
||
|
Coolant pump power
|
40W
|
|
||
|
Machine Dimensions
|
|
|
||
|
Packing size(L×W×H）
|
1950×750×1500mm
|
|
||
|
Net weight
|
550Kg/600Kg
|
|
||
|
Gooss weight
|
650Kg/700Kg
|
|
||
