LF20 Oil Pressure Switch Oil Pressure Alarm Switch Professional Engine Oil Pressure Switch 500 Psi 240VAC CN;ZHE LEFOO 15A CE

LF20 Oil Pressure Switch Oil Pressure Alarm Switch Professional Engine Oil Pressure Switch 500 Psi 240VAC CN;ZHE LEFOO 15A CE

FOB Reference Price: Get Latest Price

≥5 Pieces

US $24

≥50 Pieces

US $13

≥500 Pieces

US $12.5

≥1000 Pieces

US $12

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: LEFOO

Model Number:: LF20

Max. Current:: 15A

Max. Working Pressure:: 500 psi

Pressure setting range:: 0.5~1psi±0.3psi, 1.1~3psi±0.5psi, 3.1~7psi±1psi,......

Circuitry:: SPST-NC, SPST-NO, SPDT-NO-C-NC, SPST-NO(adjustable)......

Base material:: brass, plated steel and stainless steel

Connection:: 1/8NPT, 1/4NPT, R1/8, R1/4, G1/8, and G1/4

Terminals:: 1/4 blade, #8-32 screws and wire leads

Quick Details

Whether the smart:: NO

Max. Voltage:: 240VAC

Place of Origin:: Zhejiang, China

Brand Name:: LEFOO

Model Number:: LF20

Max. Current:: 15A

Max. Working Pressure:: 500 psi

Pressure setting range:: 0.5~1psi±0.3psi, 1.1~3psi±0.5psi, 3.1~7psi±1psi,......

Circuitry:: SPST-NC, SPST-NO, SPDT-NO-C-NC, SPST-NO(adjustable)......

Base material:: brass, plated steel and stainless steel

Connection:: 1/8NPT, 1/4NPT, R1/8, R1/4, G1/8, and G1/4

Terminals:: 1/4 blade, #8-32 screws and wire leads

Product Description

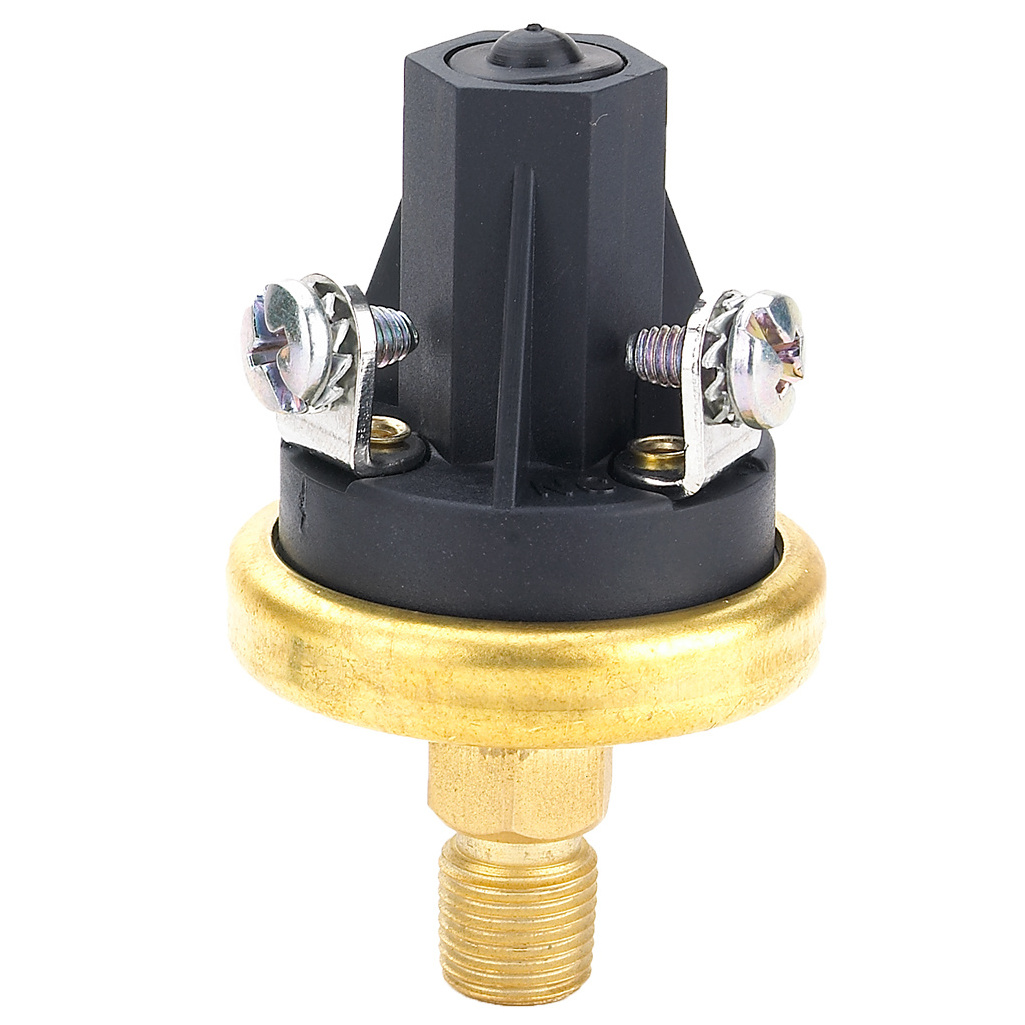

LF20 Oil Pressure Switch Low Oil Pressure Alarm Switch Professional Engine Oil Pressure Switch

1. Product Pictures:

2. Product Specifications:

The LF20 pressure switch is specifically designed to stand up to extended duty applications.

This switch is factory set but capable of field adjustment. It features different diaphragms for compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected. It can be widely used for pool and spa, anti-skid braking systems, water pump systems, and dental air compressors , heavy
