- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
E-TOUCH
-
Model Number:
-
500WN
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
20-500 HP/As customer request
-
Cable Length:
-
based on model
-
Outlet Size:
-
500mm
-
Power:
-
As customer request
-
motor:
-
As customer request
-
Capacity:
-
4500-5500m³/h
-
Head:
-
40-67m
-
NPSHr:
-
<5
-
efficiency:
-
70-76%
Quick Details
-
Application:
-
Marine, dredging, mining
-
Pressure:
-
High pressure
-
Voltage:
-
380v
-
Warranty:
-
1 year
-
Brand Name:
-
E-TOUCH
-
Model Number:
-
500WN
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
20-500 HP/As customer request
-
Cable Length:
-
based on model
-
Outlet Size:
-
500mm
-
Power:
-
As customer request
-
motor:
-
As customer request
-
Capacity:
-
4500-5500m³/h
-
Head:
-
40-67m
-
NPSHr:
-
<5
-
efficiency:
-
70-76%
Product Description

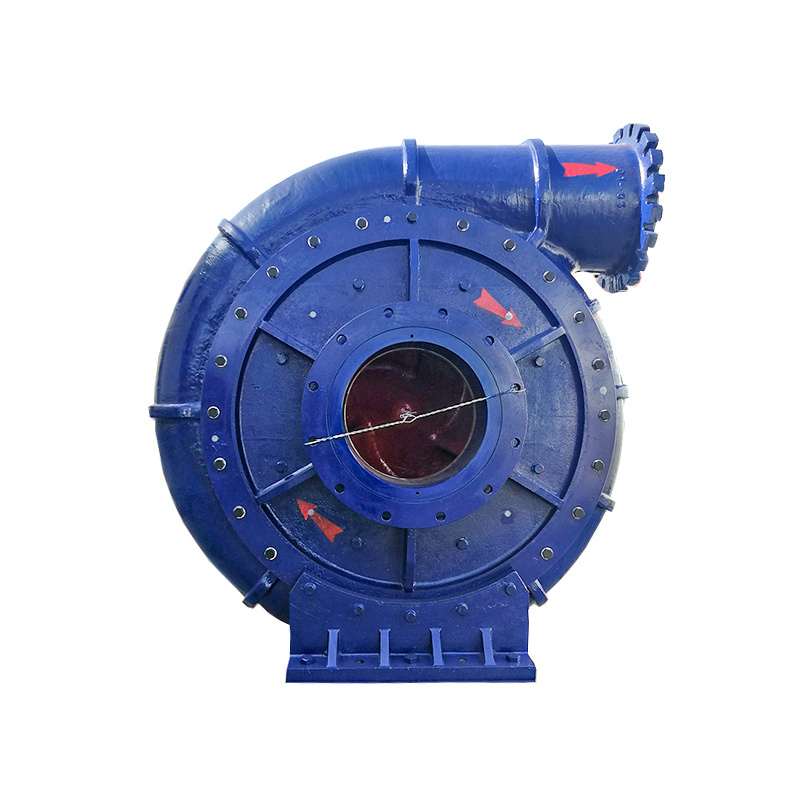

High Chrome Alloy & High Wear Resistance 500wn Kingda Mud Dredging Pump for 26 Inch Cutter Suction Dredger
WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,making full use of advanced CAD software,aiming to China’s river,lake and sea situation,they are in great need to dredge and fill hydraulically.
This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing
lining and good economical efficiency...This type of pump can meet dredging ship’s requirements completely and each set of dredging pump has passed the inspection issued by CCS.
This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing
lining and good economical efficiency...This type of pump can meet dredging ship’s requirements completely and each set of dredging pump has passed the inspection issued by CCS.
Main Features
High Chrome Alloy & High Wear Resistance 500wn Kingda Mud Dredging Pump for 26 Inch Cutter Suction Dredger
1) Advanced hydraulic model,CAD-aided design,high efficiency and remarkable energy-saving effect.
2) Strong flow capacity.The pump can pump gravel,high plastic clay lumps and so on.Dredge pump is generally equipped with three vanes or five vanes,used to handle different particle size respectively.
3) Strong matching capacity.The diesel engine and the motor are both available.
4) Small size,light weight.
The whole machine and every component of the dredge pump all adopt optimization design and strength analysis,this can greatly reduce the pump weight by minimizing unnecessary auxiliary structure and process structure on the premise of satisfying the performance and application requirements.
5) Stable running,small vibration and low noise.
6) Simple structure,easy to dismantle and maintain.
7) The parts have long service life.
8) Reliable seal,no leakage.
9) The whole machine has high reliability and remarkable economic benefits.
10) The steep drop type of performance curve.
4) Small size,light weight.
The whole machine and every component of the dredge pump all adopt optimization design and strength analysis,this can greatly reduce the pump weight by minimizing unnecessary auxiliary structure and process structure on the premise of satisfying the performance and application requirements.
5) Stable running,small vibration and low noise.
6) Simple structure,easy to dismantle and maintain.
7) The parts have long service life.
8) Reliable seal,no leakage.
9) The whole machine has high reliability and remarkable economic benefits.
10) The steep drop type of performance curve.
|
1. Front Casing
|
2. Pump Casing
|
3. Shoulder Ring
|
4. Front Cover Plate
|
5. Front Liner Plate
|
|
6. Impeller
|
7. Inlet Shaft Sleeve
|
8. Rear Liner Plate
|
9. Rear Cover Plate
|
10.Seal Assembly
|
|
11. Disassembly Ring
|
12. Support
|
13.Turning Disk
|
14. Shaft
|
15. Rear Casing
|
Specifications
WN series of dredging pump
WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,making full use of advanced CAD software,aiming to China’s river,lake and sea situation,they are in great need to dredge and fill hydraulically.
This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing
lining and good economical efficiency...This type of pump can meet dredging ship’s requirements completely and each set ofdredging pump has passed the inspection issued by CCS.
lining and good economical efficiency...This type of pump can meet dredging ship’s requirements completely and each set ofdredging pump has passed the inspection issued by CCS.
|
WN series dredge pump performance parameters
|
|
|
|
|
|
|
|
|
||||||||
|
Type
|
Capacity
(m3/h)
|
Head(m)
|
Speed
(r/min)
|
Efficiency(%)
|
NPSHr
(m）
|
Inlet Diameter(mm)
|
Outlet Diameter(mm)
|
Max. Diameter of Flowed Partice
(mm)
|
||||||||
|
200WND
|
600-800
|
20-40
|
700-900
|
60-65
|
＜4.5
|
250
|
200
|
178
|
||||||||
|
200WN
|
750-1000
|
40-65
|
700-850
|
70-72
|
＜4
|
250
|
200
|
180
|
||||||||
|
250WND
|
950-1100
|
20-40
|
500-700
|
65-70
|
＜4
|
300
|
250
|
220
|
||||||||
|
250WN
|
1100-1300
|
40-65
|
500-650
|
70-74
|
＜4
|
350
|
250
|
144
|
||||||||
|
300WND
|
1500-1800
|
20-40
|
400-600
|
65-68
|
＜4
|
350
|
300
|
241
|
||||||||
|
300WN
|
1800-2200
|
40-65
|
400-550
|
74-78
|
＜4
|
450
|
300
|
241
|
||||||||
|
350WN
|
2600-3000
|
40-65
|
400-550
|
74-78
|
＜4.5
|
450
|
350
|
245
|
||||||||
|
400WN
|
2800-3200
|
20-40
|
400-550
|
74-78
|
＜4.5
|
450
|
400
|
250
|
||||||||
|
450WN
|
3200-3850
|
40-67
|
350-500
|
76-80
|
＜4.5
|
600
|
450
|
354
|
||||||||
|
500WND
|
3600-4200
|
20-40
|
220-320
|
72-75
|
＜4.8
|
600
|
500
|
330
|
||||||||
|
500WN
|
4500-5500
|
40-65
|
350-450
|
78-80
|
＜4.8
|
650
|
500
|
250
|
||||||||
|
600WN
|
5000-9000
|
55-80
|
280-420
|
81-85
|
＜6
|
660
|
600
|
220
|
||||||||
|
700WN
|
8000-12000
|
60-85
|
280-380
|
83-85
|
＜6
|
760
|
700
|
280
|
||||||||
|
900WN
|
12000-19000
|
50-75
|
280-330
|
85-87
|
＜6
|
960
|
900
|
320
|
||||||||
|
1000WN
|
16000-25000
|
23-76
|
181-290
|
85-87
|
＜6
|
1200
|
1000
|
350
|
||||||||
Performance curve
Product Details
ODM / OEM Supplying dredge pump parts of Suction mouth, Wearing Plate, Impeller, Pump Casing, Liner etc.
Workshop
Packing & Delivery
Certifications
Our Company
SHANDONG E-TOUCH SHIPPING ENGINEERING Co., Ltd. is located in the beautiful kite capital of Weifang, Shandong, and has branches in Bangladesh and India. The company relies on the current first-class shipbuilding technology achievements, advanced strength and technological reserves, sound business and sales concepts, high-quality production quality control, and reasonable and humanized enterprise management to provide customers with high-end and high-quality products and services.
The company is guided by high-end talent strategic planning, based on the supporting resource market of small and medium-sized environmentally friendly engineering ships and equipment, focusing on intelligent supporting in the mid to high end dredging field, and providing the best cost-effective services for international dredging and environmental protection industry customers.
Committed to the field of hydraulic fill, assisting in the matching and improvement of construction equipment.
The company is guided by high-end talent strategic planning, based on the supporting resource market of small and medium-sized environmentally friendly engineering ships and equipment, focusing on intelligent supporting in the mid to high end dredging field, and providing the best cost-effective services for international dredging and environmental protection industry customers.
Committed to the field of hydraulic fill, assisting in the matching and improvement of construction equipment.
Our Service
E-Touch regards customer as the foundation,the customers' satisfaction is our permanent persuit.E-Touch has established perfected strict quality assurance system and service assurance system.E-Touch strictly inspects each product before they leave the factory strictly according to the international inspection standard.E-Touch performs each contract strictly,delivers its products on time and managers to supply the spare parts in time.E-Touch sincerely supplies customers with first class products,first quality and first service.
