Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Smart Automation
-
Model Number:
-

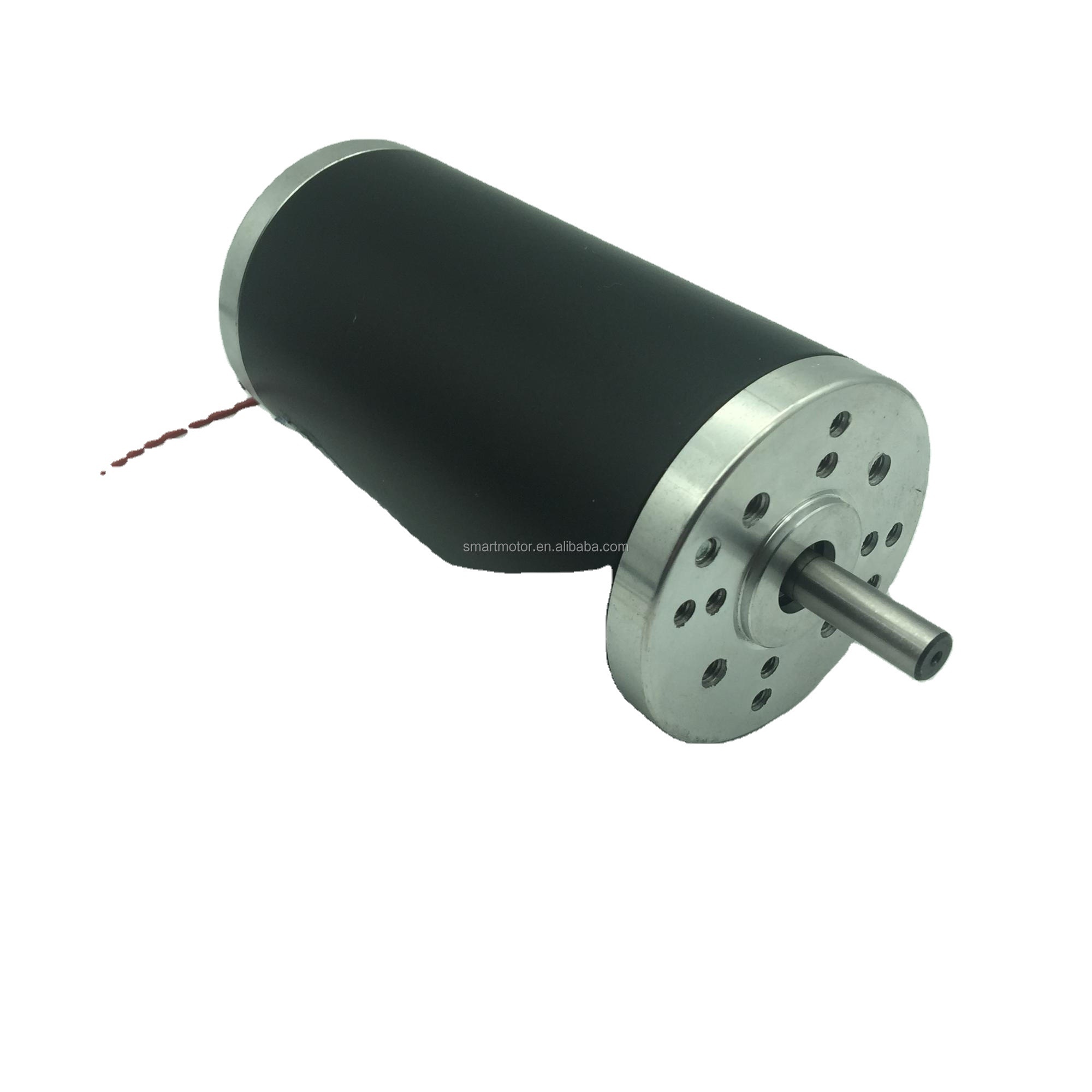

63ZYT03A
-
Torque:
-
0.4N.m
-
Certification:
-
ce
-
Certification 2:
-
RoHS
-
Certification 3:
-
TIV
Quick Details
-
Speed(RPM):
-
3000rpm
-
Continuous Current(A):
-
customed
-
Efficiency:
-
IE 1
-
Place of Origin:
-
China
-
Brand Name:
-
Smart Automation
-
Model Number:
-
63ZYT03A
-
Torque:
-
0.4N.m
-
Certification:
-
ce
-
Certification 2:
-
RoHS
-
Certification 3:
-
TIV
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
|
Model |
63ZYT03A |
|||
|
Rated voltage |
V dc |
12 |
24 |
40 |
|
Continuous rated speed |
rpm |
3000 |
3000 |
3000 |
|
Continuous rated torque |
mN.m |
400 |
400 |
400 |
|
Continuous current |
A |
15 |
7.5 |
4.5 |
|
Starting torque |
mN.m |
2700 |
2700 |
2700 |
|
Starting current |
A |
80 |
38.5 |
23 |
|
No load speed |
rpm |
3500 |
3500 |
3500 |
|
No load current |
A |
3 |
2.0 |
1.2 |
|
Demagnetization current |
A |
150 |
75 |
45 |
|
Rotor inertia |
Gcm2 |
840 |
840 |
840 |
|
Weight of motor |
g |
1350 |
1350 |
1350 |
|
Motor length |
mm |
125 |
125 |
125 |
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
