Quick Details
-
Weight:
-
1kg/spool, 5kg/spool, 15kg/spool,
-
Flux Content:
-
Normal Standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tensileweld/OEM
-
Model Number:
-
E308LT-1
-
Application:
-
Structures / Bridge / Shipbuilding, building, pressure vessel
-
OEM:
-
Accept OEM
-
Spool Materials:
-
Plastic Spool(Black/White)
-
Certification:
-
ISO 9001:2015 CE, CE, ISO
-
Product name:
-
staingless steel flux cored welding wire
-
MOQ:
-
1metric Ton
-
Shield gas:
-
totally CO2 ; 75%-95% Ar + Rest CO2 ; 95% Ar + Rest CO2
-
Use type:
-
mig torch for copper coated wire
-
Standard:
-
AWS E308LT-1
Quick Details
-
Material:
-
Stainless Steel, Stainless Steel
-
Diameter:
-
0.8mm / 0.9mm / 1.0mm / 1.2mm / 1.6mm
-
Melting Point:
-
Standard Melting Point, Standard Melting Point
-
Weight:
-
1kg/spool, 5kg/spool, 15kg/spool,
-
Flux Content:
-
Normal Standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tensileweld/OEM
-
Model Number:
-
E308LT-1
-
Application:
-
Structures / Bridge / Shipbuilding, building, pressure vessel
-
OEM:
-
Accept OEM
-
Spool Materials:
-
Plastic Spool(Black/White)
-
Certification:
-
ISO 9001:2015 CE, CE, ISO
-
Product name:
-
staingless steel flux cored welding wire
-
MOQ:
-
1metric Ton
-
Shield gas:
-
totally CO2 ; 75%-95% Ar + Rest CO2 ; 95% Ar + Rest CO2
-
Use type:
-
mig torch for copper coated wire
-
Standard:
-
AWS E308LT-1
Product Details
Flux Cored Tubular Welding Wire E70T-1C E71T-1 E71T-1C E71T-GS E71T-11 E308LT-1 E309LT-1 E316LT-1 Carbon Stainless Steel Mig

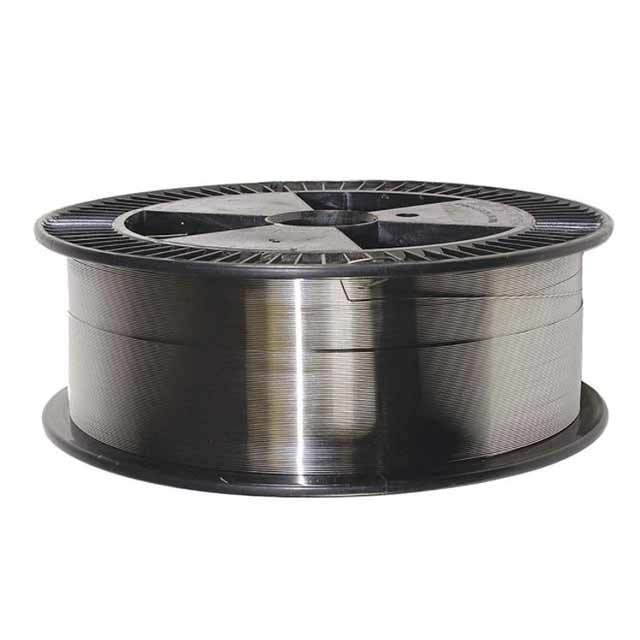

Flux Cored Welding Wire -- E308LT-1
E308LT-1 is suitable for welding structures fabricated by 18Cr8Ni (SUS304, SUS304L)metal, which carbon contained in the weld joint lower than 0.04%,such as facilities of medical apparatus, foodstuff industry, petrochemical industry, fertilizer industry and pressure vessels. The integrative welding performance of it is very goog and the weld metal has good heat resistance and excellent inter-crystalline corrosion resistance.
Chemical Composition of Deposited Metal(%)
|
|
C
|
Mn
|
Si
|
S
|
P
|
|
Standard
|
≤0.12
|
≤1.75
|
≤0.90
|
≤0.03
|
≤0.03
|
|
Typical
|
0.055
|
1.35
|
0.40
|
0.009
|
0.18
|
|
|
Yield Point
ReH(Mpa)
|
Tensile Strength
Rm(Mpa)
|
Elongation
A4(%)
|
Impact Value(J)
|
|
Shield Gas
|
|
|
|
|
|
|
-20℃
|
-30℃
|
CO2
|
|
|
Standard
|
≥375
|
490-660
|
≥22
|
--
|
≥27
|
purity≥99.98%
|
|
|
Typical
|
440
|
535
|
32
|
120
|
110
|
|
|
The standarrd of mechanical properties conforms to shipping institutions and the certificate of inspection would follow ot unless the purchaser has special requirement.
Diffusible hydrogen in deposited metal:
≤10ml/100g(mercury process)
X-ray radiographic inspection:
Gread I
|
Diameter(mm)
|
|
1.0
|
1.2
|
1.4
|
1.6
|
|
|
Current(A)
|
F
|
100-280
|
120-300
|
150-380
|
180-430
|
|
|
|
HF
|
100-280
|
120-280
|
150-320
|
180-380
|
|
|
Current(A)
|
V,OH
|
80-260
|
120-260
|
150-270
|
180-280
|
|
|
|
H
|
100-260
|
120-280
|
150-320
|
180-330
|
|
|
|
VD
|
100-260
|
200-280
|
220-300
|
250-300
|
|
Noitice:
1.The flow rate of shield gas should within 20L-25L/min in welding.
2.The wire extention should be 15mm-25mm.
3.The surfaces to be welded must be cleaned away impurities of oil contamination, rust, moisture and so on.
4.The welding conditions mentioned above for reference only and it is better to do a welding procedure qualifiation according to project before put it into formal welding.
