Quick Details
-
Dimension(L*W*H):
-
13517x3100x3161 mm
-
Power:
-
274kw
-
package:
-
nude
-
Port:
-
SHANGHAI
-
Engine:
-
WD615.47
-
Emission standard:
-
Euro2
Quick Details
-
Marketing Type:
-
New Product
-
Place of Origin:
-
China
-
Weight:
-
25000 kg
-
Dimension(L*W*H):
-
13517x3100x3161 mm
-
Power:
-
274kw
-
package:
-
nude
-
Port:
-
SHANGHAI
-
Engine:
-
WD615.47
-
Emission standard:
-
Euro2
Overview
Contact
Hedy Hu
email
:
hedy@evangelchina.com
whatsapp/phone number:
+8615215531220
wechat
:
Jollytales2
welcome to contact me.
Product Description

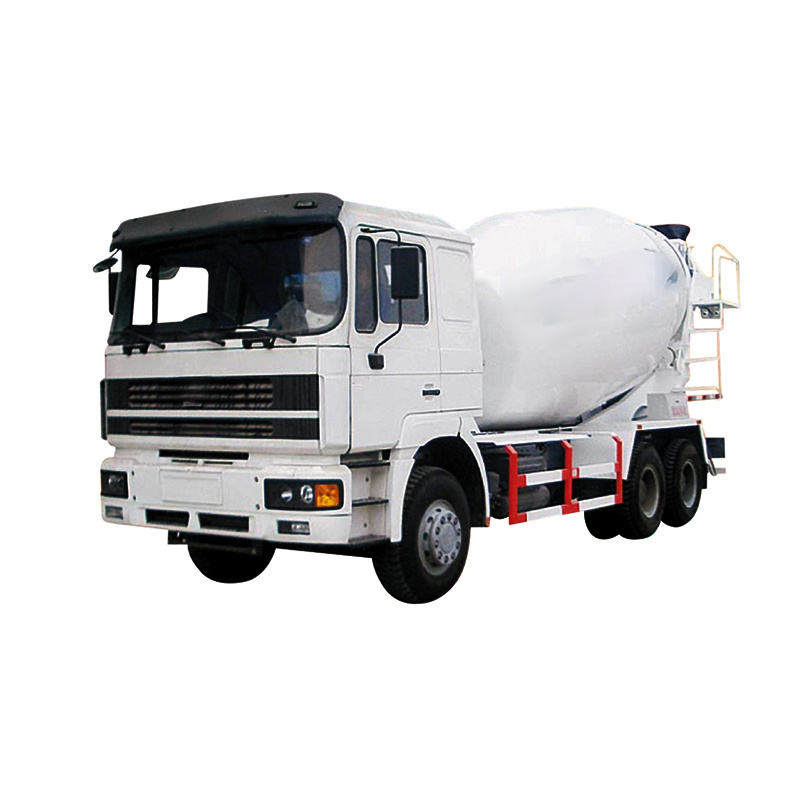

new concerte machinery 12cbm mixer truck6*4 with easy operation
and factory price
Multi-function integration
Self loading concrete mixer is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.
Hydrostatic transmission
The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work
efficiency.
Weighing system
The aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.
Specification
|
Truck Model
|
ZZ1257N4347
|
|
|
Type of Vehicle
|
12m3 Concrete Mixer Truck
|
|
|
Truck Brand
|
SINOTRUK—HOWO
|
|
|
Driving Position
|
Left hand Driving
|
|
|
The Total Mass
|
25,000kg
|
|
|
Dead Weight
|
15000
|
|
|
Max speed(km/h)(km/h)
|
90
|
|
|
Color
|
Optional
|
|
|
Manufacture
|
China National Heavy Duty Truck Group Co., Ltd.
|
|
|
Chassis & Add Components
|
|
|
|
Frame Details
|
parallel ladder with U-profiles and riveted cross members
|
|
|
Dimension(Lx W xH)(unloaded)(mm)
|
10350x2496x3990
|
|
|
Approaching angle/Departure angle(°)
|
16/20
|
|
|
Overhang(front/rear) (mm)
|
1500/3175
|
|
|
Wheel base (mm)
|
4325+1350
|
|
|
Engine
|
|
|
|
Model
|
WD615.47
|
|
|
Brand
|
SINOTRUK
|
|
|
Power
|
371HP
|
|
|
Emission
|
EURO II
|
|
|
Displacement(L)
|
10L
|
|
|
Type
|
water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
|
Kind of Fuel
|
Diesel
|
|
|
Fuel Consumption(L/100km)
|
25-30L/100km
|
|
|
Clutch & Gear Box System
|
|
|
|
Clutch
|
SINOTRUKΦ430mm diaphragm spring clutch
|
|
|
Gear Box
|
HW19710
10 forwards and 2 reverse. |
|
|
Brand
|
SINOTRUK
|
|
|
Axles
|
|
|
|
Front Axle Model
|
HF9 axle. Capacity: 9000kg
|
|
|
Rear Axle
|
HC16 axle. Capacity:2X 13000kg
|
|
|
Electrical System
|
|
|
|
Battery
|
2X12V/165Ah
|
|
|
Alternator
|
28V-1500w
|
|
|
Starter
|
7.5Kw/24V
|
|
|
Brake System
|
|
|
|
Service brake
|
Dual circuit compressed air brake
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
|
Auxiliary brake
|
Engine exhaust brake
|
|
|
Steering system
|
|
|
|
Model
|
8118
|
|
|
Brand
|
top brand
|
|
|
Wheels & Tyres
|
|
|
|
Type
|
12.00R20
|
|
|
Material
|
Tubeless tire
|
|
|
Quantity
|
10+1 spare
|
|
|
Cabin
|
|
|
|
Type
|
HW76 standard cabin
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
