Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huayuan
-
Display Type:
-
STN
-
Construction:
-
COB
-
Dot Matrix:
-
16x4
-
Controller:
-
NT7070 or Eqv
-
Outline Dimenesion:
-
87.0*60.0*14.5 mm
-
Viewing size:
-
61.8x25.2 mm
-
Active area:
-
56.2x20.8 mm
Quick Details
-
Type:
-
TFT
-
Display Size:
-
2.6 inch
-
Supplier Type:
-
Manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huayuan
-
Display Type:
-
STN
-
Construction:
-
COB
-
Dot Matrix:
-
16x4
-
Controller:
-
NT7070 or Eqv
-
Outline Dimenesion:
-
87.0*60.0*14.5 mm
-
Viewing size:
-
61.8x25.2 mm
-
Active area:
-
56.2x20.8 mm

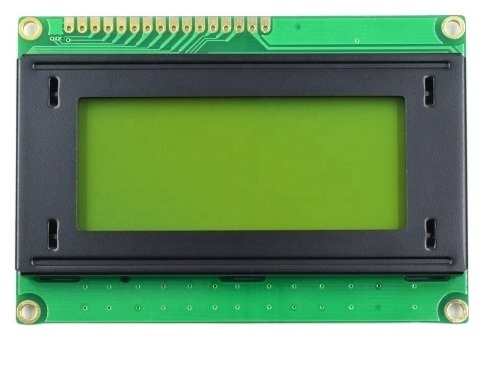

very small lcd screen 16 character 4 line lcd display
Specification
| Module Size | 87.0x60.0x14.5 mm |
| Viewing size | 61.8x25.2 mm |
| Active area | 56.2x20.8 mm |
| Controller IC | NT7070 or Eqv |
| Numbr of Dots | 16 CH x 4 Lines |
| Dot pitch | 0.60x0.60 mm |
| Dot size | 0.55x0.55 mm |
Drawing
Related Products
Character lcd module: 8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc.
Graphic lcd module: 122x32, 128x64, 128x32,192x64, 24064, 240x128, 320x240, etc.
TFT lcd display: 1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5",5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 17",etc.
TN/STN/FSTN/HTN/VA segment customized lcd LED backlight panel
All kinds of LCD Module can customized.
