Quick Details
-
Brand Name:
-
MA AUDIO
-
Model Number:
-
MA124D4
-
Magnet:
-
50 OZx2
-
Voice coil:
-
2" ASV
-
Frequency Response:
-
28Hz-500Hz
-
RMS Power:
-
350W
-
Max.power:
-
700W
-
Size:
-
12INCH
Quick Details
-
Impedance:
-
4Ohm+4Ohm
-
Warranty:
-
1 Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MA AUDIO
-
Model Number:
-
MA124D4
-
Magnet:
-
50 OZx2
-
Voice coil:
-
2" ASV
-
Frequency Response:
-
28Hz-500Hz
-
RMS Power:
-
350W
-
Max.power:
-
700W
-
Size:
-
12INCH

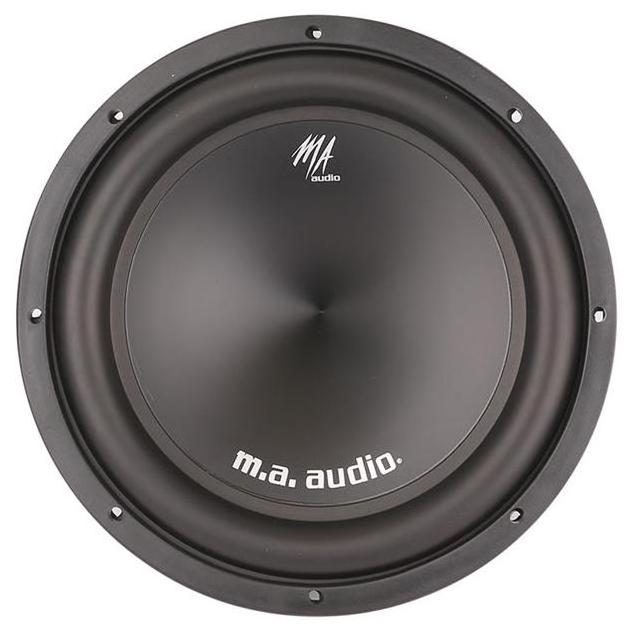

Mod el:MA124D4
Features
- Powder Coated Anti-Resonant Steel Basket
- With Perimeter Vents for Better Voice Coil Cooling
- Dual Stacked High Flux Strontium Ferrie Magnet
- Dual 4 Ohms Voice Coil Models
- Long Stroke and Vented Pole T-Yoke
- Vented Aluminum Former technology reduces distortion by reducing heat and resistance
- One Piece Injection Polypropylene Cone with Butyl Rubber Surround
- Chrome Plated 12 Gauge Speaker Terminal
- Recommend for Sealed Enclosures d
Specifications:
| Model | MA124D4 |
| RMS POWER | 350WATTS |
| MAX POWER | 700WATTS |
| IMPEDANCE | 4Ohm+4Ohm |
| Fo(Hz) | 31.09 |
| QMS | 4.52 |
| QES | 0.38 |
| QTS | 0.35 |
| VAS(Liters) | 69.31 |
| REVC PARALLEL | 1.6(Ohms) |
| SPL @1W/1M | 89.25(dB) |
|
X-MAX Linear Peak |
10mm |
| LEVC @ 1Khz(mH) | 1.14 |
Recommended Enclosure
| Sealed Enclosure Volumes | |
| Minimum Sealed | 0.75Cubic Feet/21.2 Liters |
| Maximum Sealed | 1.25Cubic Feet/35.4 Liters |
1.Sample will be accepted as each size of 1-2pcs but paid, the customer will pay the courier freight as our cooperated DHL or FedEX.
2.The sample will be prepared at around 15-20days after get the sample order cost.
3.The sample prepare will be made as custom specification that nego tiated.
Gift Box + Master Carton
2PCS/ CARTON
G.W.:17.0 KGS
N.W.:15.0KGS
Carton Size: 36.3x36.3x42.6CM
Q1: What is our warranty for speaker drivers?
For our speaker driver, we have one-year warranty.
Q2:How can i get a sample ?
If you need some samples to test,we can make as per your request .
You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.Thanks.
Q3:How much the transportation freight of samples?
The freight depends on the weight and packing size and your area.
Q4:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q5:Can you produce according to customers' design?
yes.we mainly do the OEM/ODM service.
Q6:What's the minimum order quantity(MOQ)?
MOQ is 50pcs-500pcs each model size.
Q7:How about the delivery time?
For sample: 10-15 days
For order: 45-60 days
