Qotom Mini Desktop PC Fanless X86 Dual LAN 4x RS-232 Core i5-4200U Industrial PC
Qotom Mini Desktop PC Fanless X86 Dual LAN 4x RS-232 Core i5-4200U Industrial PC
Qotom Mini Desktop PC Fanless X86 Dual LAN 4x RS-232 Core i5-4200U Industrial PC
Qotom Mini Desktop PC Fanless X86 Dual LAN 4x RS-232 Core i5-4200U Industrial PC
Qotom Mini Desktop PC Fanless X86 Dual LAN 4x RS-232 Core i5-4200U Industrial PC
Qotom Mini Desktop PC Fanless X86 Dual LAN 4x RS-232 Core i5-4200U Industrial PC
Qotom Mini Desktop PC Fanless X86 Dual LAN 4x RS-232 Core i5-4200U Industrial PC
Qotom Mini Desktop PC Fanless X86 Dual LAN 4x RS-232 Core i5-4200U Industrial PC

Qotom Mini Desktop PC Fanless X86 Dual LAN 4x RS-232 Core i5-4200U Industrial PC

FOB Reference Price: Get Latest Price
≥1 Pieces
US $208
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Processor Core:
Dual Core
Place of Origin:
Guangdong, China
Brand Name:
Qotom
Model Number:
Q450P
Video Memory:
NO
WIFI:
Dual Band WIFI 802.11ac
Material:
Aluminum Alloy Enclosure
Certification:
ce
Product Name:
Fanless Mini Pc
CPU:
Intel Core i5-4200U
RAM:
DDR3 2G/4GB/8GB
OS:
Support Win7/Win8/Win10, Linux, etc.
Storage:
1*mSATA+1*2.5 Inch SATA HDD

Quick Details

Use:
Industrial
Hard Drive Type:
SSD
Video Memory Type:
With the main memory
Processor Core:
Dual Core
Place of Origin:
Guangdong, China
Brand Name:
Qotom
Model Number:
Q450P
Video Memory:
NO
WIFI:
Dual Band WIFI 802.11ac
Material:
Aluminum Alloy Enclosure
Certification:
ce
Product Name:
Fanless Mini Pc
CPU:
Intel Core i5-4200U
RAM:
DDR3 2G/4GB/8GB
OS:
Support Win7/Win8/Win10, Linux, etc.
Storage:
1*mSATA+1*2.5 Inch SATA HDD
Product Description
Front I/O
• Power Button
• 2 x USB 2.0 Ports
• 2 x USB 3.0 Ports
• 1 x Power LED
• 1 x Serial Port (RS-232)

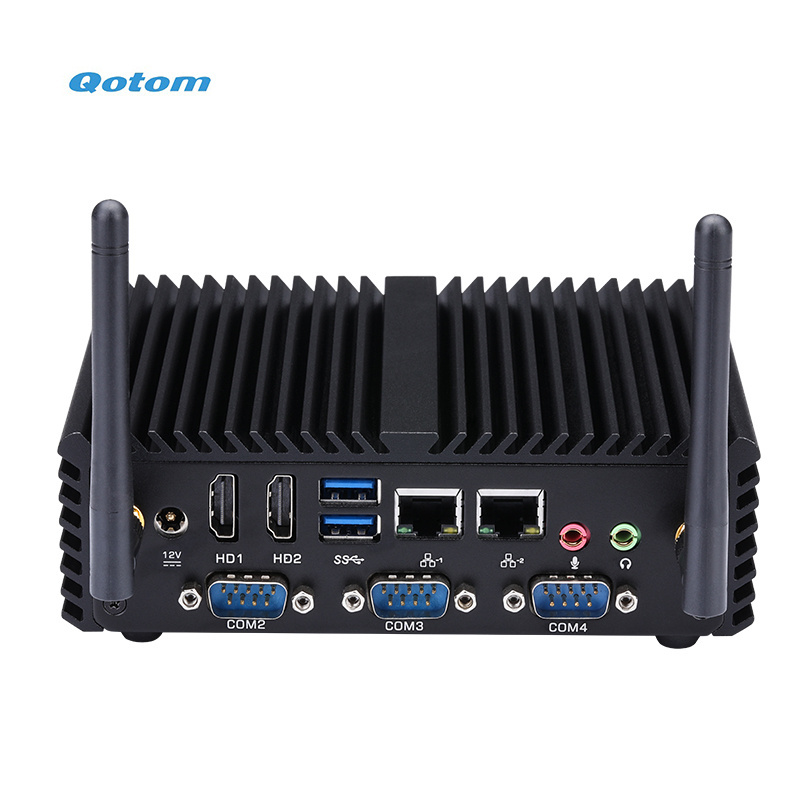

Rear I/O
• 1 x DC Jack
• 2 x HD Video Ports
• 2 x Realtek RTL8111E Gigabit LAN
• 2 x USB 3.0 Ports
• 3 x Serial Ports (RS-232)
• Mic-in, Line-out
• Wi-Fi (Optional)
Qotom Fan-less Mini Motherboard
CPU: Intel Core i5-4200U
3M Cache
Dual core 1.6 GHz, up to 2.6 GHz
CPU TDP: 15 W
Integrated graphics: Intel HD Graphics 4400

Memory:
1 x DDR3 DIMM Memory Slot
Support DDR3L 1333/1600 MHz, 1.35V
Max: 8GB
Non-ECC

Storage:
Support SSD (MSATA / SATA)
Support HDD (2.5 inch SATA HDD)

Wi-Fi:
1 x Half mini pcie slot for Wi-Fi
Interface: PCIE

Operating System

• Preinstall inactive Windows 10 for test and Qotom do not provide any Windows license.
• Supports Windows 7/ 8/ 10/11, Linux, etc.
• Buyer can reinstall operating system.
• F11 key boot from USB Drive. Delete key enter BIOS.
# Q450P support Windows 11 But there is no chip for TPM on motherboard. If you need PC with TPM chip to support Windows 11, please contact us.
SIM & 4G LTE Module
* A Full mini pcie slot on motherboard for 3G/ 4G Module.
* A SIM card slot onboard.
* Qotom do not supply any SIM card and LTE module.
* When you buy LTE module, please get details like drivers from the supplier.
* Q400P Series only have dual antennas holes for WI-Fi by default. If you wanna install LTE module at the same time, please contact us in advance to get PC case with 4x Antennas holes.

Qotom Q400P Series

* Qotom Mini PC Q400P Series contains below models, they are same except processor onboard.
* You can choose CPU according to demand.
* CPU has been integrated on motherboard, it's impossible to replace it.
Model
CPU
Q401P
Intel Celeron 2955U (Haswell)
Q430P
Intel Core i3-4005U (Haswell)
Q450P
Intel Core i5-4200U (Haswell)
Q430PY
Intel Core i3-4020Y (Haswell)
Q450PY
Intel Core i5-4210Y (Haswell)
Q435P
Intel Core i3-5005U (Broadwell)
Q455P
Intel Core i5-5200U (Broadwell)
Wide application
• Running 24/7
• Fan-less design, quite working.
• The frame is simple , maintain easily.
• Small size, only 155*127*48 mm , save space and easy to move.
• With VESA Bracket, it can be hung.
• Attaching monitor, keyboard, mouse, it's your new personal computer, excellent POS terminal, mini server, etc.
• Support two monitors to display same or difference.
• O perating temperature: -10~ 50 degrees Celsius
Our Advantages
Custom service
1. Laser printing LOGO for free.
* MOQ: 5 units
* For free
* Only white
* Buyer provide LOGO in PDF format

2. Label
* MOQ: 5 units
* For free
* Buyer list label contents
* Only white background and black text

3. Change Startup Picture
* MOQ: 5 units
* For free
* Buyer provide new picture

4. Pre-set BIOS
* For free

5. Customize packing box based on Qotom packing box
* MOQ: 100 units
* Buyer will be charged extra fees
* Buyer should provide available new design.

6. Remove or add some ports
* This service is based on quantity and models.
P lease contact us to list your requirements.
Product packaging
Packing
1 x Mini PC
1 x Power supply (adapter and cord)
1 x VESA bracket & screws
1 x color box

* Power cord options: EU/ SA/ AU/ US/ CH Type
* Dual antennas if you buy Wi-Fi
* If you need n eutral packaging box, tell us in advance.
* Contact us if you need Motherboard User Manual and Windows drivers.
Shipment
All customs duties, taxes, to be collected on the territory of the Buyer, are to be paid by the Buyer.

Standard export packing

All Qotom products are well packed by standard export packing box.
* No shipping mark by default.

Ship by International express

Most of goods are shipped by international express like DHL/ Fedex/ TNT/ UPS, especially for small orders. Buyer can receive goods very soon.
* All goods will be transferred in Hong Kong.

Air logistics & transport by sea

For bulk order, air logistics charge lower freight.
* Buyer have to pick up the goods at airport.
If prefer to transport by sea, please contact seller.

If Buyer has forwarder/ agent in China

Seller can deliver goods in China.
* Important: There is a lithium metal battery on motherboard that some forwarders can not arrange shipment.
