Quick Details
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-

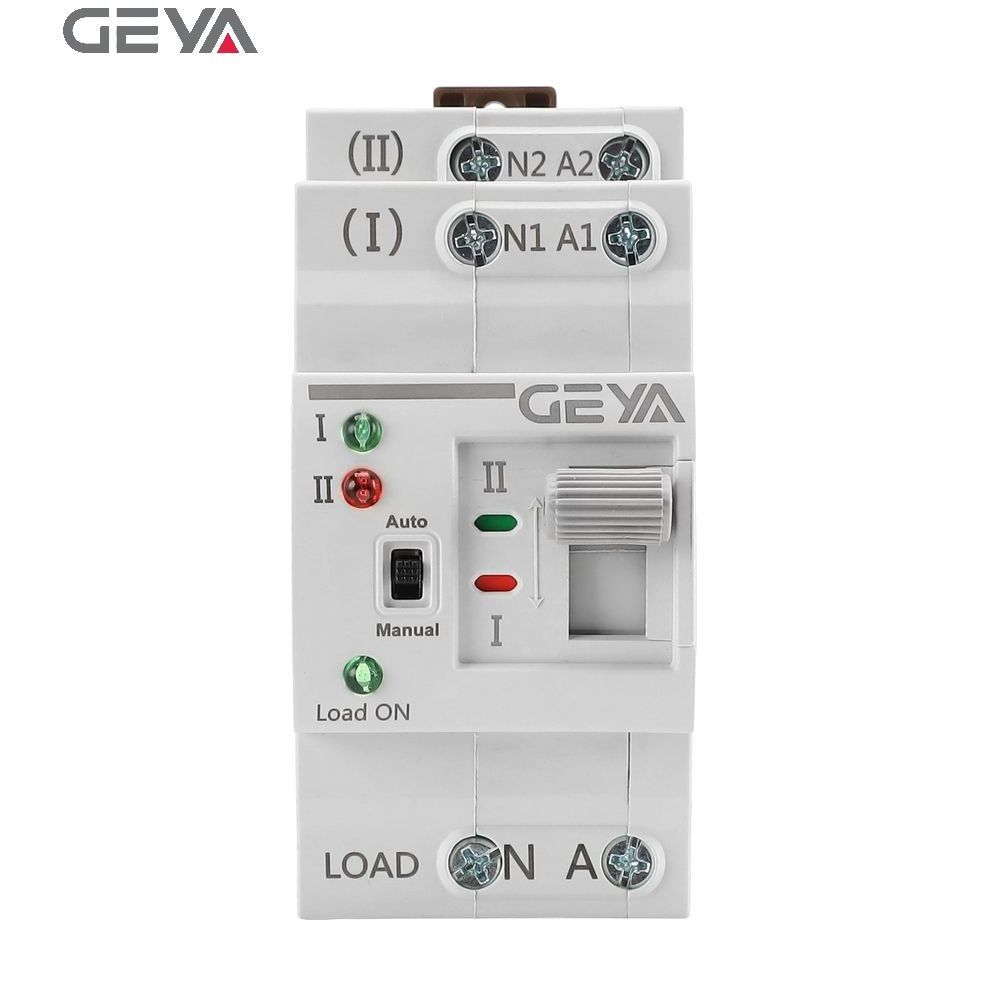

G2R 2P 220V 50A
-
Rated Current:
-
50A
-
Insulation Voltage:
-
AC 690V
-
Rated operating voltage:
-
AC 400V
-
Rated frequency:
-
50/60Hz
-
Pole:
-
2P
-
Rated current in:
-
50A
-
Certificate:
-
CE ISO
-
Whether the smart:
-
Yes
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
G2R 2P 220V 50A
-
Rated Current:
-
50A
-
Insulation Voltage:
-
AC 690V
-
Rated operating voltage:
-
AC 400V
-
Rated frequency:
-
50/60Hz
-
Pole:
-
2P
-
Rated current in:
-
50A
-
Certificate:
-
CE ISO
-
Whether the smart:
-
Yes
This link price is only for
G2R 2P 220V 50A
.
Products Description
Product Paramenters
|
Case grade
|
63
|
|
Rated operating curent le(A)
|
6A/10A/16A/20A/25A/32A/40A/50A/63A
|
|
Rated insulation voltage Ul
|
690V
|
|
Rated impulse withstand voltage Uimp
|
8kV
|
|
Rated working voltage Ue
|
AC220V/AC110V
|
|
Rated frequency
|
50/60Hz
|
|
Class
|
PC class: can be switched on and loaded
without generating short-circuit current |
|
Polenumber
|
2P 4P
|
|
Rated short-circuit current Iq
|
50kA
|
|
Short circuit protection device (fuse)
|
RT16-00-63A
|
|
Rated impulse withstand voltage
|
8kV
|
|
Control circuit
|
Rated control voltage Us: AC220V,50Hz
Normal working conditions: 85%Us-110%Us |
|
Auxiliary circuit
|
AC220V/110V 50Hzle=5A
|
|
Contactor change-overtime
|
<50ms
|
|
Operation change-over time
|
<50ms
|
|
Return change-over time
|
<50ms
|
|
Power off time
|
<50ms
|
|
Change-over operation time
|
<50ms
|
|
Mechanical life
|
≥8000 times
|
|
Electrical life
|
≥1500 times
|
|
Usage category
|
AC-31B
|
Packing List
|
Items
|
Specifical
|
PCS/CTN
|
Inner box size
(CM) |
Carton Size
(CM) |
K.W.
(KG) |
N.W.
(KG) |
|
|
|
|
|
|
|
|
|
G2R-63Ⅱ 2P
|
63A
|
48
|
1.2*5.5*8.5
|
46*25.5*27
|
18.96
|
19.5
|
|
G2R-63Ⅱ 4P
|
63A
|
30
|
12*9*85
|
46*25.5*27
|
17.7
|
18.2
|
Product packaging
