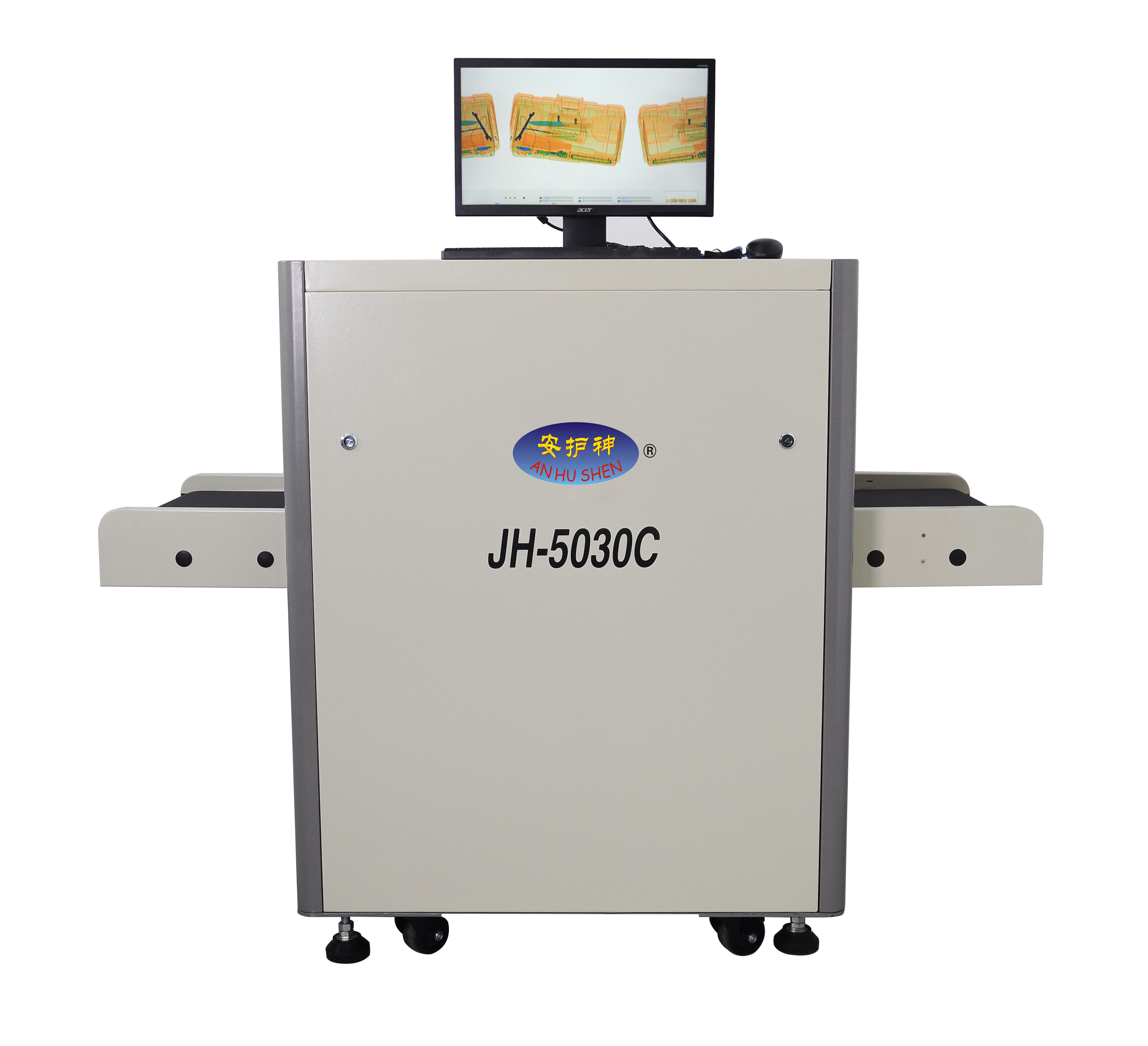

- Product Details
- {{item.text}}
Quick Details
-
Dual energy:
-
YES
-
Orientation:
-
Vertically Upward
-
X-ray generator:
-
140KV
-
Steel penetration:
-
38mm
-
Angle:
-
60°
-
Tube current:
-
0.4~0.7MA(adjustable)
-
Conveyor speed:
-
0.2m/s
-
Conveyor max load:
-
70KG
-
Wire Resolution:
-
38AWG ( 0.1mm metal Wire)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ANHUSHEN
-
Tunnel size:
-
500mm wide x 300mm high
-
Dual energy:
-
YES
-
Orientation:
-
Vertically Upward
-
X-ray generator:
-
140KV
-
Steel penetration:
-
38mm
-
Angle:
-
60°
-
Tube current:
-
0.4~0.7MA(adjustable)
-
Conveyor speed:
-
0.2m/s
-
Conveyor max load:
-
70KG
-
Wire Resolution:
-
38AWG ( 0.1mm metal Wire)
Product description
Technical data:
|
Tunnel Size
|
550(W)×305(H)mm
|
|
Conveyor Speed
|
0.22 m/s
|
|
Conveyor Max Load
|
120 kg
|
|
Spatial resolution
|
horizontal / vertical φ 1.0mm
|
|
Wire Resolution
|
>38AWG ( 0.1mm metal Wire)
|
|
Steel Penetration
|
>38 MM armor plate
|
|
Film Safety
|
ASA/ISO 1600 Standard of film safety
|
|
Generator cooling
|
Sealed oil bath with forced air/100%
|
|
Orientation
|
Vertically Upward
|
|
Tube Current
|
0.6-1.2 MA (adjustable)
|
|
Anode Voltage
|
140 KV(adjustable)
|
|
Single inspection dosage
|
< 5.0 µGy 60°
|
|
X-RAY Sensor
|
Ltype Photo-Diode array detector ,12BIT
|
Multi-energy image --- 7 colours
The Safeagle scanning screen supports multiple split screen (3 screens) and full screen options for optimal viewing, the operator can customise the colour mode of the switchable main screen and the two auxiliary screens respectively.
|
Storage Temperature:
|
-20ºC to 60ºC
|
|
Operating Temperature：
|
0ºC to 45ºC
|
|
Relative Humidity:
|
20 to 95% non-condensing
|
|
System Power:
|
220 VAC (±10%) 50±3HZ
|
|
Power consumption：
|
0.5 KW (Max)
|
|
power source:
|
AC 220v ±10%, 60Hz ±5 hz
|
|
Noise:
|
<58 DB (A)
|
|
Unit weight (kgs):
|
380
|
|
Unit size (mm):
|
1500 mm(L) * 767mm(W)*1100mm(H)
|
|
Gross weight (kgs): 420
|
420
|
|
Packing size:
|
1710 mm(L) * 860mm(W)*1360mm(H)
|
