Quick Details
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
3*1.35*1.8m
-
Weight:
-
3000 KG
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nestor
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
3*1.35*1.8m
-
Weight:
-
3000 KG
Product Description

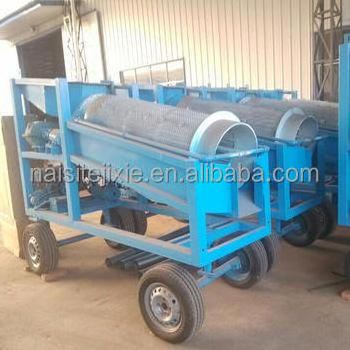

Mobile Stationary Sand Trommel Screen For River Gold Mining Equipment
Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Its Working Principle Is To Control The Size Of Particle Size To Control The Separation Of Waste, Thus Improving The Separation Efficiency.
The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.
The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.
Structure and Principle
The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.
2. Selection And Cleaning Of Raw Materials Raw Materials Of The Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.
3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But
Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Specification
Model
|
Capacity
(t/h)
|
Power(kw)
|
Drum Dia.(mm)
|
Length of Drum(mm)
|
Screen size(mm)
|
Dimension(mm)
|
Weight(kg)
|
NST0510
|
1-3
|
1.5
|
500
|
1000
|
<3~10
|
1800*1020*1500
|
1000
|
NST1015
|
5-15
|
4.0
|
1000
|
1500
|
|
3000*1400*2145
|
2200
|
NST1020
|
5-15
|
5.5
|
1000
|
2000
|
|
3460*1400*2145
|
2800
|
NST1225
|
10-25
|
7.5
|
1200
|
2500
|
|
4146*1600*2680
|
4200
|
NST1530
|
30-50
|
11
|
1500
|
3000
|
|
4460*1900*2820
|
5100
|
NST1545
|
50-80
|
15
|
1500
|
4500
|
|
5960*1900*3080
|
6000
|
NST1848
|
80-120
|
22
|
1800
|
4800
|
|
6500*2300*400
|
7500
|
NST2055
|
120-250
|
30
|
2000
|
5500
|
|
7500*2500*4000
|
8600
|
