Quick Details
-
voltage:
-
220V
-
key word:
-
air source swimming pool heat pump
Quick Details
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Jiangsu, China
-
color:
-
white
-
voltage:
-
220V
-
key word:
-
air source swimming pool heat pump
Product Description
500% efficiency
On average , one uit of electricity used produces 5 units of heating
Put another way , the pump consumes 20% of the energy used to heat the water, whilst the remaining 80% of energy comes free from the panels

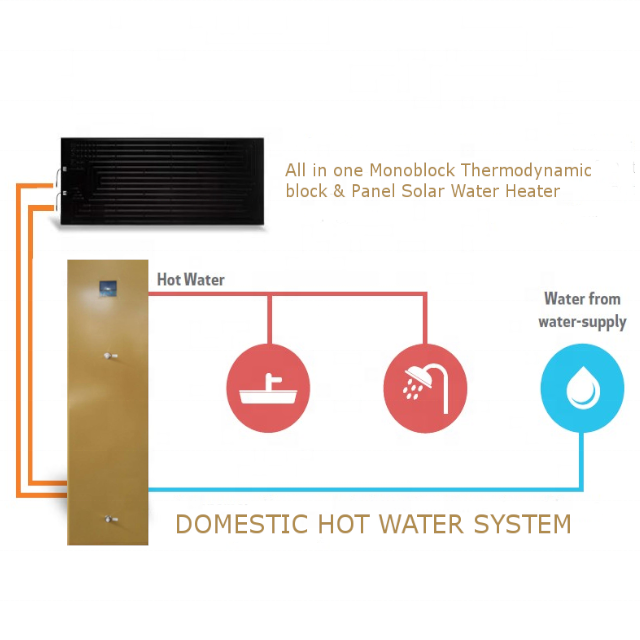

High quality roll bond thermodynamic solar panels, flat plate air solar collector
Thermodynamic Solar Panel is the heating of hot water through the use of the refrigeration principle. It can collect the heat from the sun,the rain , the snow,the sleet and even the night air, 24 hours per day, 365 days per year.
It could heat the water to 55℃ ,with 25years lifespan and save up to 90% on your hot water energy bill
Put another way , the pump consumes 20% of the energy used to heat the water, whilst the remaining 80% of energy comes free from the panels
High quality roll bond thermodynamic solar panels, flat plate air solar collector
Thermodynamic Solar Panel is the heating of hot water through the use of the refrigeration principle. It can collect the heat from the sun,the rain , the snow,the sleet and even the night air, 24 hours per day, 365 days per year.
It could heat the water to 55℃ ,with 25years lifespan and save up to 90% on your hot water energy bill
The Benefits
Thermodynamic solar panels work in rain, shine, frost or snow, 24 hours per day 365 days per year. They are the next generation in renewable energy and, as they do not rely on sunlight, are perfect for any place They can be used for heating your home, hot water or even heating swimming pools.
Thermodynamic solar panels work in rain, shine, frost or snow, 24 hours per day 365 days per year. They are the next generation in renewable energy and, as they do not rely on sunlight, are perfect for any place They can be used for heating your home, hot water or even heating swimming pools.
|
Model
|
TYNRB-15
|
TYNRB-20
|
TYNRB-35
|
TYNRB-50
|
TYNRB-200
|
||||
|
Power
|
~220V 50/60HZ
|
|
|
|
380V 50/60HZ
|
||||
|
Rated water output temperature （℃）
|
55
|
55
|
55
|
55
|
55
|
||||
|
Maximum water output temperature （℃）
|
65
|
65
|
65
|
65
|
65
|
||||
|
Rated heat capacity （W）
|
1600
|
2000
|
3500
|
4500
|
20000
|
||||
|
Rated power input （W）
|
320
|
370
|
680
|
800
|
5000
|
||||
|
Rated current input （A）
|
1.4
|
1.7
|
3.1
|
3.7
|
7.5
|
||||
|
Noise （dB（A））
|
≤45
|
≤45
|
≤45
|
≤45
|
≤60
|
||||
|
Weight （kg）
|
18
|
20
|
23
|
26
|
80
|
||||
|
Size （L*W*Hmm）
|
325X225X400
|
380X280X440
|
|
380X280X440
|
500X400X600
|
||||
|
Water tank capacity （L）
|
100、150
|
150、200
|
200、300
|
300、500
|
2000
|
||||
|
Applicable environment temperature （℃）
|
-20~45
|
|
|
|
|
||||
|
Roll bond thermodynamic panel size:2000*800mm US$
|
80
|
80
|
80*(1-2)
|
80*(2-4)
|
80*(12-16)
|
||||
|
Water tank US$
|
Optional
|
Optional
|
Optional
|
Optional
|
Optiona
|
||||
