Hot selling PVC plastic spiral cable protector with low price high quality

Function

1. Reduces abrasion of aerial cables when in contact :

A. with branches of trees (tree-guards)

B. with poles

C. with pole hardware fittings

D. with anchor clamp bailwire

2.Can be used as strengthening member and protection for ADSS cables when installed in J Hook Suspension clamp

3. Increases the lifespan of coaxial cables on poles in windy zones

4. Can be used in maintenance as well as for network building

Description

(1) UV resistant black PP sections

(2) spiral formed in the factory and available in 2m, 20 m or 50 m rolls

Installation instruction

1. Choose a spiral abrasion protector with an inside diameter directly smaller to the cable diameter (for a figure-8 cable,consider the total height)

2. Cut the required length using adapted cutting pliers

3. Place the centre of the spiral cut length on the section of cable to be protected or reinforced

4. Wrap one side of the spiral protector around the cable starting from the centre

5. Repeat this last action with the other arm of the spiral protector

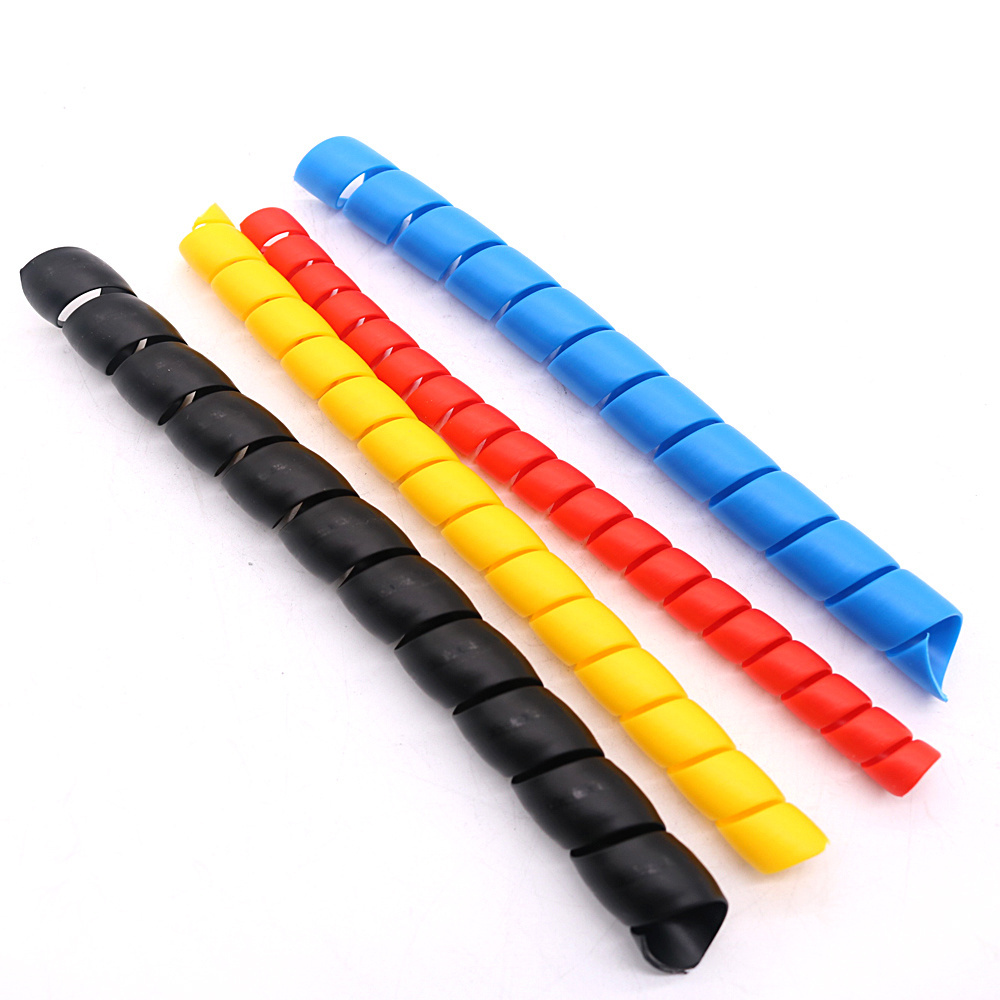

Detailed Images:

Package&shipment:
