Quick Details
-
Filling Accuracy:
-
0.5%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LEADWORLD
-
Dimension(L*W*H):
-
1800*1000*1500mm
-
Weight:
-
600 KG
-
Product name:
-
Daily Filling Machine
-
Function:
-
filling machine
-
Filling Volume:
-
100-500ml
-
Capacity:
-
1000-2000bph
-
Air Pressure:
-
3-5kg/cm2
-
Total Power:
-
AC380V, 50/60HZ
-
Filling nozzles:
-
6,can be customized
-
Material:
-
SS304
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
0.5%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LEADWORLD
-
Dimension(L*W*H):
-
1800*1000*1500mm
-
Weight:
-
600 KG
-
Product name:
-
Daily Filling Machine
-
Function:
-
filling machine
-
Filling Volume:
-
100-500ml
-
Capacity:
-
1000-2000bph
-
Air Pressure:
-
3-5kg/cm2
-
Total Power:
-
AC380V, 50/60HZ
-
Filling nozzles:
-
6,can be customized
-
Material:
-
SS304
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Scope Of Application
*The Piston filling machine is a high-tech product designed and developed by our company. It suits for different viscosity of water agent, semi-fluid and paste, it is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry .
Product Description
|
Model
|
Filling Volume
|
Air Pressure
|
Total Power
|
Machine Size(mm)
|
|
LW--4A
|
10-60g
30-100g 100-500g 200-1000g 500-2500ml 1000-5000ml |
120L/min
|
3P 380V 50/60HZ 1.369KW
|
L2200*W1020*H2250
|
|
LW--6A
|
|
140L/min
|
3P 380V 50/60HZ 1.69KW
|
L2500*W1020*H2250
|
|
LW--8A
|
|
160L/min
|
3P 380V 50/60HZ 2.07KW
|
L2500*W1020*H2250
|
|
LW--10A
|
|
180L/min
|
3P 380V 50/60HZ 2.82KW
|
L3000*W1020*H2250
|
|
LW--12A
|
|
300L/min
|
3P 380V 50/60HZ 2.82KW
|
L3000*W1020*H2250
|
Product Show
We can customize according to the materials. Welcome to send the raw materials for trial machine.
Main Features:
1. Vacuum Preventing Leaking System
2. No Bottle or Lack of Bottle, No Filling System
3. Photoelectric Sensor, Mechatronics Filling Adjustment System
4. Photoelectric Sensor, Material Level Control Feeding System
5. Stainless Steel Frame,Plexiglass as Security Cover
6. Control System: PLC/Electronic-Pneumatic Controlled
7. Operation Panel: "Intelligent" Colorful Touch Screen
8. Filling Accuracy:+-0.5%
9. Capacity Adjustment:All cylinders adjusted automatically combine single cylinder adjusted individually.
10.Container transport:Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor.
2. No Bottle or Lack of Bottle, No Filling System
3. Photoelectric Sensor, Mechatronics Filling Adjustment System
4. Photoelectric Sensor, Material Level Control Feeding System
5. Stainless Steel Frame,Plexiglass as Security Cover
6. Control System: PLC/Electronic-Pneumatic Controlled
7. Operation Panel: "Intelligent" Colorful Touch Screen
8. Filling Accuracy:+-0.5%
9. Capacity Adjustment:All cylinders adjusted automatically combine single cylinder adjusted individually.
10.Container transport:Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor.
Product Details
Product Structure Diagram
We can design the filling production line machine according to the plant layout.
We can customize the filling head according to the output
Product Accessories Display
Core Accessories
90% of our core accessories are imported.
Product quality assurance, stable operation and long service life.

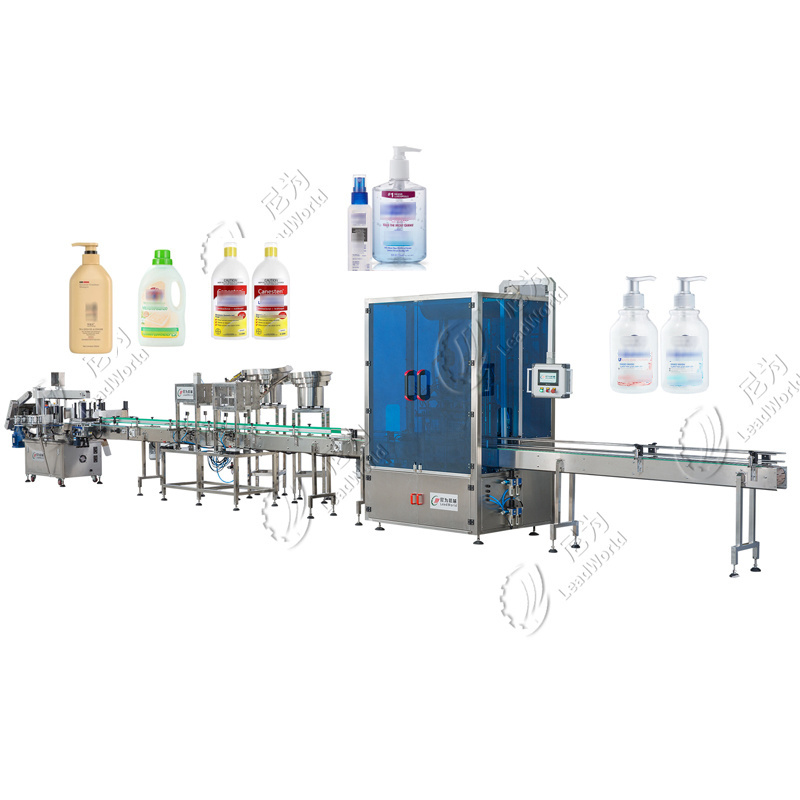

Product Photograph
It has been exported to "50 +" countries and regions, and has served "160 +" customers on site,
with a high praise rate of 99%.
