Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
lilin
-
Model Number:
-
LSD-700B
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8250*2150*1800 mm
-
Weight:
-
7000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Roll Feeding Square Bottom Paper Bag making Machine
-
H.S.CODE:
-
8441200000
-
Max.speed:
-
180 pcs/min
-
Suitable Glue:
-
Water Based Glue
-
Web edge control system:
-
Double photoelectric automatic correction control system
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
lilin
-
Model Number:
-
LSD-700B
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8250*2150*1800 mm
-
Weight:
-
7000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Roll Feeding Square Bottom Paper Bag making Machine
-
H.S.CODE:
-
8441200000
-
Max.speed:
-
180 pcs/min
-
Suitable Glue:
-
Water Based Glue
-
Web edge control system:
-
Double photoelectric automatic correction control system
Products Description

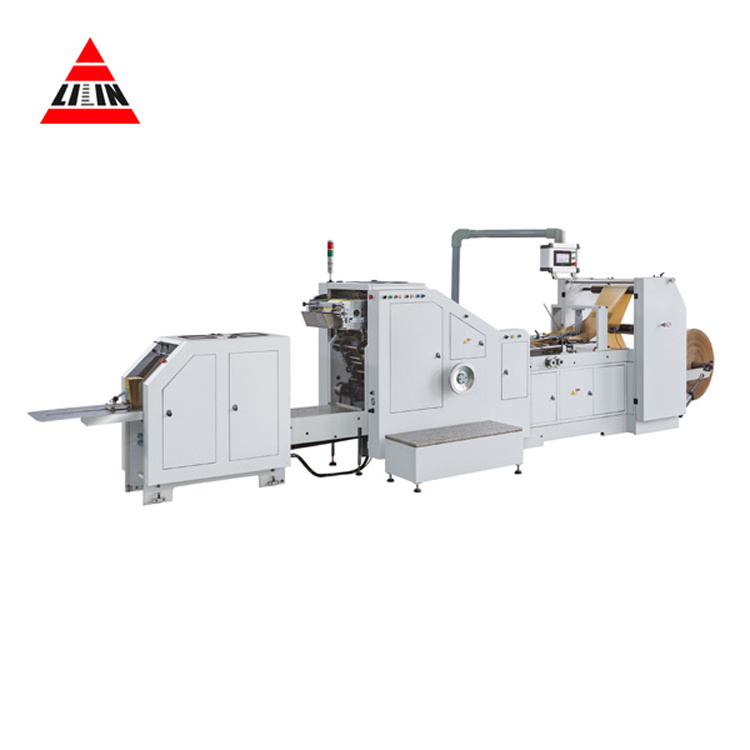

LSB-450 Roll Feeding Square Bottom Paper Bag making Machine price
Introduction:
Roll Feeding square bottom paper bag making machine forming the paper bag in one process from printed or unprinted roll paper ,side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag formation at a stroke. This machine controls by PC programmable servo motor through the human-machine touch screen interface. It can produce various of specifications paper bags. This machine have advantages of high speed, quickly replace the paper bag specifications, more wide
range adjusting etc. It is an ideal machine for producing food bag, shopping handles bag.
range adjusting etc. It is an ideal machine for producing food bag, shopping handles bag.
Features:
1.
The human-machine touch screen interface, the work condition can be shown in real- time.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3.Material lifting adopt pneumatic lift structure.
4)Global initiative, leading technology, the “foolproof” style automatic constant tension control system using the United Stated Bellofram precision controller. The tension will be just right from beginning to end.
5.Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6.Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8.Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9.Accurate color tracking system, color errors automatically shut down.
10.Automatic lubricating oil supply system.
3.Material lifting adopt pneumatic lift structure.
4)Global initiative, leading technology, the “foolproof” style automatic constant tension control system using the United Stated Bellofram precision controller. The tension will be just right from beginning to end.
5.Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6.Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8.Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9.Accurate color tracking system, color errors automatically shut down.
10.Automatic lubricating oil supply system.
Product Paramenters
|
Type
|
LSB-450
|
|
Bag Width (W)
|
260-450 mm
|
|
Bottom Size (H)
|
85-180 mm
|
|
Cutting Length (C)
|
270-530 mm
|
|
Bag Length (L)
|
L=C-(H+2+ 15~25)
|
|
Max. Speed
|
180 pcs/min
|
|
Paper Roll Width
|
700-1250 mm
|
|
Max. reel weight
|
800 Kg
|
|
Max.Roll Diametr
|
1200 mm
|
|
Reel inner diameter
|
76 mm
|
|
Paper specification
|
80-180 gsm
|
|
Web edge control system
|
Double photoelectric automatic correction control system
|
|
Web tension control system
|
automatic constant tension control system
|
|
Air pressure
|
≥ 0.12cmm, 0.4~1Mpa
|
|
Driven motor
|
Double servo motors
|
|
Electric
|
380V, 50Hz, 3 phase
|
|
Power
|
12 KW
|
|
Weight
|
7000 Kg
|
|
Overall dimension (LxWxH)
|
8250x2150x1800 mm
|
Product packaging
FAQ
1.Are you trading company or manufacturer?
We are manufacturer, we have our own worker and factory.
2.How long has your factory been in this field?
In China, As one of the earliest manufacturers in paper bag machine, we have more than 10 years professional experience.
3.What types of machine do you have?
Commonly are paper bag machine V shape bottom or square bottom ,flexo printing machine,slitting machines according to clients'needs.
4.Where is your factory located? how can l visit there?
Our factory is located in ruian city.zhejiang province china.our local airport is Wenzhou Longwan Airportthe nearest international
airport is shanghai Pudong Airport about 40 minutes by plane from shanghai (4 hours by train
5.Can i get some samples? how can l get it?
Yes,we can send you some free samples, but you need to bear the courier cost by DHL, TNT etc.
sincerely welcome all clients to visit us!
We are manufacturer, we have our own worker and factory.
2.How long has your factory been in this field?
In China, As one of the earliest manufacturers in paper bag machine, we have more than 10 years professional experience.
3.What types of machine do you have?
Commonly are paper bag machine V shape bottom or square bottom ,flexo printing machine,slitting machines according to clients'needs.
4.Where is your factory located? how can l visit there?
Our factory is located in ruian city.zhejiang province china.our local airport is Wenzhou Longwan Airportthe nearest international
airport is shanghai Pudong Airport about 40 minutes by plane from shanghai (4 hours by train
5.Can i get some samples? how can l get it?
Yes,we can send you some free samples, but you need to bear the courier cost by DHL, TNT etc.
sincerely welcome all clients to visit us!
