Quick Details
-
Structure:
-
Safety
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOYI
-
Port Size:
-
Internal thread
-
Product name,:
-

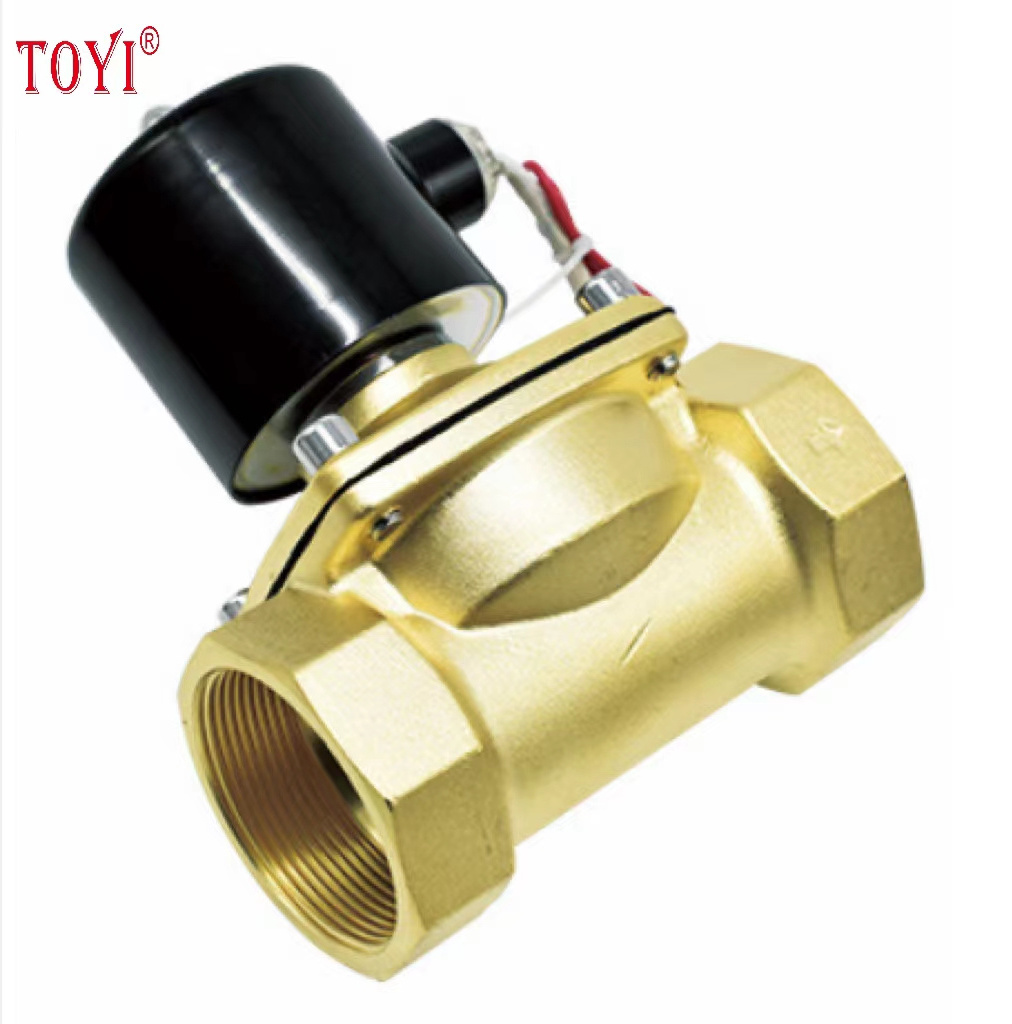

Solenoid valve control valve
-
Body material:
-
Brass/Stainless Steel
-
Connection:
-
Thread
-
medium:
-
Water, hot water, air, gas, oil, etc
-
Voltage:
-
AC220V DC12V DC24V
-
Usage:
-
cutoff
-
Mode of action:
-
direct-acting
-
Control Mode:
-
electromagnetism
-
Protection grade:
-
IP65
-
Size:
-
Standard Size
Quick Details
-
Type:
-
BALL VALVES, Safety Relief Valves, Pressure Reducing Control Valves, Water Pressure Reducing Valves, Balancing Valves
-
Application:
-
General
-
Power:
-
Electric
-
Structure:
-
Safety
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOYI
-
Port Size:
-
Internal thread
-
Product name,:
-
Solenoid valve control valve
-
Body material:
-
Brass/Stainless Steel
-
Connection:
-
Thread
-
medium:
-
Water, hot water, air, gas, oil, etc
-
Voltage:
-
AC220V DC12V DC24V
-
Usage:
-
cutoff
-
Mode of action:
-
direct-acting
-
Control Mode:
-
electromagnetism
-
Protection grade:
-
IP65
-
Size:
-
Standard Size
Specification
|
item
|
value
|
|
Warranty
|
1 years
|
|
Type
|
BALL VALVES, Safety Relief Valves, Pressure Reducing Control Valves, Water Pressure Reducing Valves, Balancing Valves
|
|
Customized support
|
OEM, ODM, OBM, Software reengineering
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
|
TOYI
|
|
Application
|
General
|
|
Temperature of Media
|
Medium Temperature, Normal Temperature
|
|
Power
|
Electric
|
|
Media
|
Water
|
|
|
Internal thread
|
|
Structure
|
Safety
|
|
Product name,
|
Solenoid valve control valve
|
|
Body material
|
Brass/Stainless Steel
|
|
Connection
|
Thread
|
|
medium
|
Water, hot water, air, gas, oil, etc
|
|
Voltage
|
AC220V DC12V DC24V
|
|
Usage
|
cutoff
|
|
Mode of action
|
direct-acting
|
|
Control Mode
|
electromagnetism
|
|
Protection grade
|
IP65
|
|
Size
|
Standard Size
|
Product Description
copper coil
Made of copper coil, so that the product can produce stable magnetism to improve the accuracy of the switch
Thickening fittings
The selection of thickened and excellent assembly parts makes the product stronger and longer service life
Brass material
Cast brass material, durable and non-corrosive, body in and out of the water direction identification
Exquisite assembly
So that the product has a stronger sealing, wall tube thick, dense no leakage.
Installation mode
1、The pipeline should be washed before use, and the filter should be installed if the medium is not clean to prevent impurities from hindering the normal work of the solenoid valve.
2、 The solenoid valve generally works in one direction and cannot be reversed. The arrow on the valve is the direction of fluid movement in the pipeline, which needs to be consistent.
3、 Solenoid valve installation general valve body horizontal, the coil vertical upward, some products can be arbitrarily installed, but when conditions permit to vertical, to increase the service life.
4、 The solenoid valve should be heated when it is re-working in a frozen place, or set up insulation measures.
5、 After the electromagnetic coil leading (connector) is connected, it should be confirmed whether it is firm, and the contact of the connected electrical components should not shake, loose will cause the solenoid valve to not work, and the solenoid valve should be continuously produced, and the bypass is adopted for easy maintenance and does not affect production. The solenoid valve after a long time out of use should be cleared of condensation before it can be used.
6、 When disassembling and cleaning, the parts should be placed in order and then restored to the original state.
Packing & Delivery
|
Model
|
diameter
|
aperture
|
specification
|
weight
|
|
2W08
|
ø12
|
2.5m'm
|
1/4''
|
0.23kg
|
|
2W10
|
ø15
|
4mm
|
3/8''
|
0.33kg
|
|
2W15
|
ø20
|
16mm
|
1/2''
|
0.59kg
|
|
2W20
|
ø25
|
20mm
|
3/4''
|
0.64kg
|
|
2W25
|
ø32
|
25mm
|
1''
|
0.83kg
|
|
2W32
|
ø40
|
32mm
|
1 1/4''
|
1.13kg
|
|
2W40
|
ø50
|
40mm
|
1 1/2''
|
1.84kg
|
|
2W50
|
|
50mm
|
2''
|
2.46kg
|
