Quick Details
-
Brand Name:
-
LTMG
-
Fork Length:
-
1150mm
-
Fork Width:
-
155mm
-
Overall Dimensions:
-
1570*786*1597mm
-
Weight (KG):
-
245 kg
-
Type:
-
Powered Pallet Truck
-
Rated Capacity:
-
500kg
-
Load Center:
-
400mm
-
Lifting height:
-
1.6m - 12m
-
power unit:
-
battery
-
Tire type:
-
nylon
-
color:
-
Customer Demanded
-
min.turning radius:
-
1100mm
-
Lifting speed:
-
55mm/s
-
Certification:
-
ISO, CE
Quick Details
-
Min. Lifting Height:
-
85mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Fork Length:
-
1150mm
-
Fork Width:
-
155mm
-
Overall Dimensions:
-
1570*786*1597mm
-
Weight (KG):
-
245 kg
-
Type:
-
Powered Pallet Truck
-
Rated Capacity:
-
500kg
-
Load Center:
-
400mm
-
Lifting height:
-
1.6m - 12m
-
power unit:
-
battery
-
Tire type:
-
nylon
-
color:
-
Customer Demanded
-
min.turning radius:
-
1100mm
-
Lifting speed:
-
55mm/s
-
Certification:
-
ISO, CE
Product Description

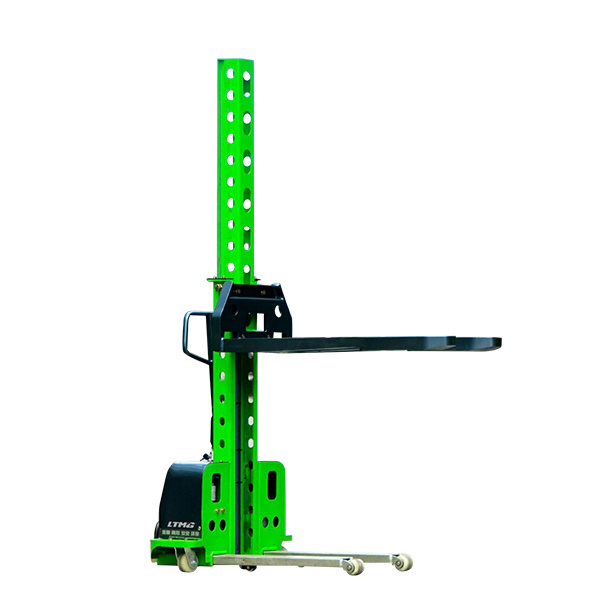

LTMG warehouse lifting stacker mini pallet jack 0.5 ton electric pallet truck with ce for sale
Self Lifting Stacker, hot sale for Euro market, with small overall dimension, designed for loading and unloading cargo/pallet for
van.
1.Steering chain auxiliary device.
2.With foot brake,more stable,
3.Sealed batteries free of maintenance safe operation and no pollution.
4.Explosion-proof valve design,down more stable and reliable.
Product parameters
|
Model
|
|
|
ERB05Z
|
|||
|
Power unit
|
|
|
Battery
|
|||
|
Rated capacity
|
Q
|
kg
|
500
|
|||
|
Load center
|
c
|
mm
|
400
|
|||
|
Wheel base
|
L0
|
mm
|
758
|
|||
|
Front track base
|
W1
|
mm
|
380
|
|||
|
Rear track base
|
W2
|
mm
|
665
|
|||
|
Operator type
|
|
|
Pedestrian/Standing
|
|||
|
|
|
|
|
|||
|
Tyre type(Front/Rear)
|
|
|
Nylon
|
|||
|
Balance/Load wheels
|
|
|
2/2
|
|||
|
Load wheel size
|
|
mm
|
Φ70×60
|
|||
|
Balance wheel size
|
|
mm
|
φ100×45
|
|||
|
|
|
|
|
|||
|
Lowered Fork height
|
H2
|
mm
|
85
|
|||
|
Max.lifting height
|
H
|
mm
|
1200
|
|||
|
Max.fork width
|
W3
|
mm
|
535
|
|||
|
Fork length
|
L2
|
mm
|
1150
|
|||
|
Fork width×Fork thickness
|
B
|
mm
|
155×60
|
|||
|
Overall length
|
L1
|
mm
|
1570
|
|||
|
Total width
|
W
|
mm
|
786
|
|||
|
Overall height(Mast closed)
|
H1
|
mm
|
1597
|
|||
|
Overall height(Fork lowering)
|
H3
|
mm
|
1618
|
|||
|
Min.turning radius
|
Wa
|
mm
|
1100
|
|||
|
|
|
|
|
|||
|
Lifting speed
|
|
mm/s
|
55
|
|||
|
Lowering speed
|
|
mm/s
|
70
|
|||
|
Lifting motor power
|
|
kW
|
DC0.8
|
|||
|
Battery voltage
|
|
V
|
12
|
|||
|
Battery capacity
|
|
Ah
|
45
|
|||
|
|
|
|
|
|||
|
Battery weight
|
|
kg
|
13.5
|
|||
|
Operating weight(with battery)
|
|
kg
|
245
|
|||
Our factory
LTMG was established in
2001
, it owns
120,000 square meters production base and 15000 units forklifts
annual production capacity
.
LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over
50 LTMG overseas agents
have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than
110 countries and regions
around the world.
Website:
http://www.xlteng.com/ (Group)
http://www.ltma-forklift.com/ (Forklift)
http://www.ltma-loader.com/ (Loader)
http://www.airport-gse.com/ (Airport GSE)
Packing & Shipping
Our Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
Our Customer
FAQ
1.Can you produce the products labeled with the client's brand?
Yes, with the authorization of the brand, we can OEM for our clients.
2.What the payment terms do you accept?
On T/T term 30% in advance, 70% balance shall be settled before shipment.
3.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1).90% of our shipment go by sea to all main continents, such as South America,Middle East,Africa,Oceania and Europe etc, either
by container or Bulk shipment.
2).For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3).For light spare parts in urgent demand,we can ship it by international courier service, such as DHL,TNT,UPS,or Fedex.
4.Delivery time:
Standard configuration products are always in stock. The production period of Customized products is from 30 days.
Yes, with the authorization of the brand, we can OEM for our clients.
2.What the payment terms do you accept?
On T/T term 30% in advance, 70% balance shall be settled before shipment.
3.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1).90% of our shipment go by sea to all main continents, such as South America,Middle East,Africa,Oceania and Europe etc, either
by container or Bulk shipment.
2).For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3).For light spare parts in urgent demand,we can ship it by international courier service, such as DHL,TNT,UPS,or Fedex.
4.Delivery time:
Standard configuration products are always in stock. The production period of Customized products is from 30 days.
