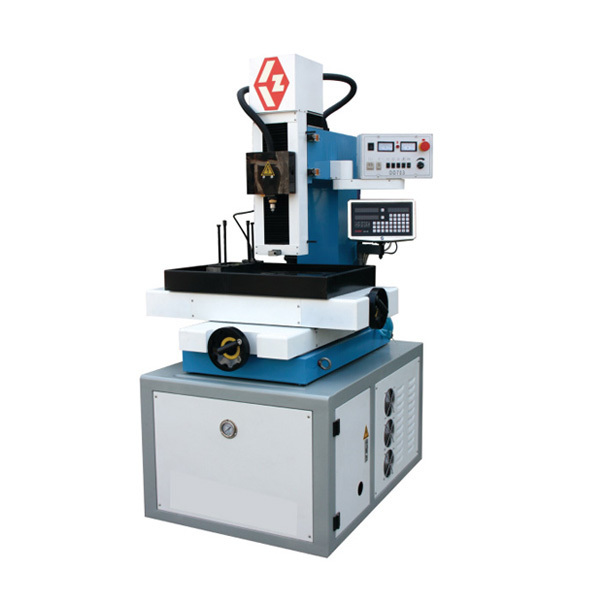

Quick Details
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
working table size:
-
360x480mm
-
X-Y stroke:
-
300x400mm
Features :
1.Drilling diameter from 0.3mm to 3mm. The maximum depth ratio could be 300:1.
2.Auto deep control, blind hole can also be maken.
3.Precision ( hole straightness) is less than 0.04 mm.
4.Can drill on oblique and curved surface directly.
5.Digital readout 3 axis (X, Y, Z).
6.Fast processing s
peed and low consumption.
7.Can use water as coolant, low cost and no pollution.
|
Model |
DD703 |
DD703.30 |
DD703.40 |
DD703.50 |
|
Electrode diameter(mm) |
Φ0.3-Φ3.0 |
Φ0.3-Φ3.0 |
Φ0.3-Φ3.0 |
Φ0.3-Φ3.0 |
|
Spindle stroke(mm) |
200 |
200 |
400 |
500 |
|
Servo stroke(mm) |
280 |
300 |
300 |
600 |
|
Max.adjusting speed of spindle(mm) |
200 |
200 |
200 |
200 |
|
Turn head (C axis)speed(mm/min) |
20-120 |
20-120 |
20-120 |
20-120 |
|
Working table size(mm) |
260×380 |
360x480 |
1000x540 |
1000X700 |
|
X-Y stroke(mm) |
200×300 |
300x400 |
400x630 |
500X630 |
|
Max.process current(A) |
30 |
30 |
30 |
30 |
|
Max.output power(W) |
2.5 |
2.5 |
2.5 |
2.5 |
|
Power (V/Hz) |
380/50 |
380/50 |
380/50 |
380/50 |
|
Capacity of working fluid (L) |
25 |
25 |
25 |
25 |
|
Max.pressure of working fluid(MPa) |
7 |
7 |
7 |
7 |
|
Dimension(L×W×H)(mm) |
1060×750×1700 |
1060×750×1700 |
1600x1300x1500 |
1950X1500X1600 |
|
Weight(kg) |
600 |
600 |
1400 |
2500 |
