Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
SHN
-
Brand Name:
-
LES
-
Dimension(L*W*H):
-
154x123x108cm
-
Weight (KG):
-
200 KG
-
Warranty of core components:
-
Co2 Glass Tube
-
Core Components:
-
Laser Source
-
Mode of Operation:
-
CO2 Laser
-
Configuration:
-
CO2 Laser tube
-
Product Name:
-
Co2 Laser Cutting Machine
-
Machine Power:
-
100w/130w/150w(Optional)
-
Controlling software:
-
Ruida Control
-
Supported format:
-
DXF,BMP,JPG,PNG,TIF PCX,TAG,LOO,GIF,PLT.AI
-
Operating humidity:
-
5%-95%
-
Operating temperature:
-
0℃-45℃
-
Working voltage:
-
AC220V/110V±10% 50Hz(60Hz)Custom made
-
Laser Output Control:
-
0-100% Set by Software
-
Smallest Character:
-
Chinese: 2.0mm*2.0mm, English 1.0mm*1.0mm
-
Transmission:
-
stepper motor & Belt/ servo motor & ballscrew
Quick Details
-
Engraving Area:
-
1000x800mm
-
Laser Type:
-
Co2 Laser
-
Engraving Speed:
-
1500mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
SHN
-
Brand Name:
-
LES
-
Dimension(L*W*H):
-
154x123x108cm
-
Weight (KG):
-
200 KG
-
Warranty of core components:
-
Co2 Glass Tube
-
Core Components:
-
Laser Source
-
Mode of Operation:
-
CO2 Laser
-
Configuration:
-
CO2 Laser tube
-
Product Name:
-
Co2 Laser Cutting Machine
-
Machine Power:
-
100w/130w/150w(Optional)
-
Controlling software:
-
Ruida Control
-
Supported format:
-
DXF,BMP,JPG,PNG,TIF PCX,TAG,LOO,GIF,PLT.AI
-
Operating humidity:
-
5%-95%
-
Operating temperature:
-
0℃-45℃
-
Working voltage:
-
AC220V/110V±10% 50Hz(60Hz)Custom made
-
Laser Output Control:
-
0-100% Set by Software
-
Smallest Character:
-
Chinese: 2.0mm*2.0mm, English 1.0mm*1.0mm
-
Transmission:
-
stepper motor & Belt/ servo motor & ballscrew
Products Description

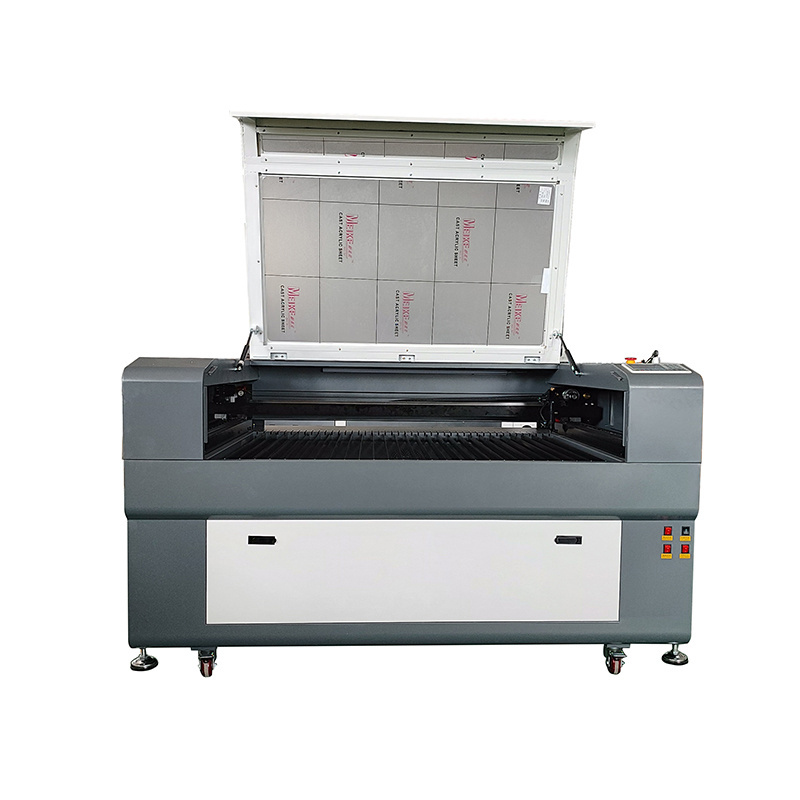

Liaocheng LES Laser 1000x800mm 100w/130w/150w Co2 Laser Cutting Machine
Machine Feature:
1) For cutting / engraving . ( This machine can cutcarbon steel, iron, stainless steel and other metals, and can also cut and engrave max acrylic, wood,polywood , leather and MDF etc .)
2) Economic, cost-effective multi-functional laser cutting machine.
3)Non-contact metal cutting auto-following device, to cut all kinds of materials with less investment.
4) Equipped with the RECI/YONGLI laser tube, longer laser life and more stable performance.
5) Ruida or Leetro control system, PMI guide rails and high quality belt transmission.
6) The USB interface supports data transmission for quick completion.
7) Lens and mirror imported from Singapore.
8) Transmit files directly from CorelDraw, AutoCAD, USB 2.0 interace output with high speed supports offline operation.
9) Summary of operation of the power cut-off point during power-up.
10) Lift table, rotating device, dual head function for option
Product configuration
ReCi Glass Tube
--
Its laser tube has high power, thin laser beam, stable laser performance, and the discharge tube is coated with a catalyst, which greatly increases its working life. Compared with similar products, it has the advantages of small size, good spot pattern, and fast cutting speed.
RuiDa Control
--
Currently the most popular control system in the Chinese market, it has the advantages of easy operation and high precision.
High speed laser cutting head
--
The laser head has air blowing and red light indicating functions, which can help you perform better cutting work.
High Power Laser Power Supply
--
We will equip you with the highest specification laser power supply according to the needs of the machine, which can allow the machine to work stably for a long time.
Emergency stop switch
--
When an electrical accident occurs, the emergency stop switch can protect the machine.
Up/Down Function
--
By lowering the working platform, the machine can cut thicker objects.
Machine parameters
|
Working Area
|
1000x800mm
|
|
|
|
|||
|
Engraving Speed
|
1--1500mm/s
|
|
|
|
|||
|
Cutting Speed
|
1--2000mm/s
|
|
|
|
|||
|
Engraving Thickness
|
0-4mm(depends on materials)
|
|
|
|
|||
|
Cutting Thickness
|
0-20mm(depends on materials)
|
|
|
|
|||
|
Water Protechion
|
Yes
|
|
|
|
|||
|
Positioning Way
|
Red Light Positioning
|
|
|
|
|||
|
Locating Precision
|
0.01mm
|
|
|
|
|||
|
Work Platform
|
Honeycomb
|
|
|
|
|||
|
Laser power
|
100w
|
|
|
|
|||
|
Laser Type
|
Sealed CO2 Laser Tube
|
|
|
|
|||
|
Cooling Mode
|
Water Cooling Protection System
|
|
|
|
|||
|
Lift Range
|
0--50cm
|
|
|
|
|||
|
Power Supply
|
AC110-220V/50-60HZ(Custom Made)
|
|
|
|
|||
|
Certification
|
CE
|
|
|
|
|||
Sample
