Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
DEZHONG
-
Model Number:
-
DZJ
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
0.55KW-90KW
-
Outlet Size:
-
DN15-DN50
-
Product name:
-

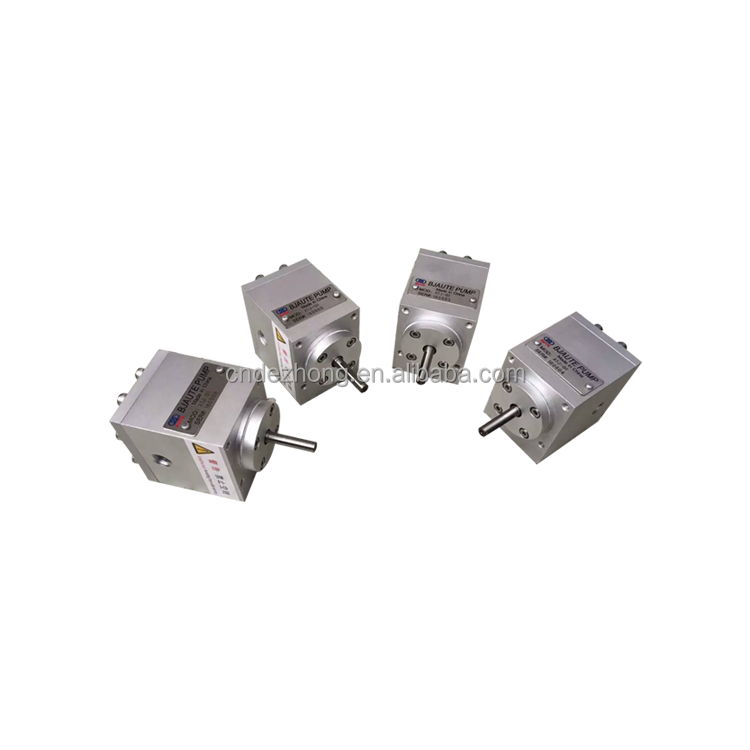

Gear Metering Pump
-
Material:
-
Stainless Steel
-
Keywords:
-
Gear Pump
-
Feature:
-
High Efficiency
-
Color:
-
Customer Specifications
-
Certification:
-
ISO9001 CE
-
Packing:
-
Wooden Case
-
Seal:
-
Combination Seal
-
Mechanical seal:
-
Ptfe,metal bellows seal
Quick Details
-
Application:
-
Biofuel Industry, Food and Beverage Industry, Metal and Equipment Manufacturers, Pharmaceutical industry, temperature control
-
Pressure:
-
0.1-3.0
-
Voltage:
-
380V
-
Warranty:
-
1 years
-
Brand Name:
-
DEZHONG
-
Model Number:
-
DZJ
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
0.55KW-90KW
-
Outlet Size:
-
DN15-DN50
-
Product name:
-
Gear Metering Pump
-
Material:
-
Stainless Steel
-
Keywords:
-
Gear Pump
-
Feature:
-
High Efficiency
-
Color:
-
Customer Specifications
-
Certification:
-
ISO9001 CE
-
Packing:
-
Wooden Case
-
Seal:
-
Combination Seal
-
Mechanical seal:
-
Ptfe,metal bellows seal
Products Description
P
roduct
Advantages
1.Mixer insulation jacket gear pump is good for precise measurement precision of the medium ratio, flow stability, through frequency conversion
control, implementation process many kinds of material ratio, high precision.
2.High precision: in under the condition of different temperature, pressure, viscosity, operational continuous steady flow accurately.
3.No-pulsation:unique gear structure design makes the flow conveying no pulse,to eliminate the unnecessary buffers and other accessories,make the system simple,cost reducition.
4.Meter: with every turn of measured displacement,which can realize precise measurement.Can completely eliminate costly flow meters.
5.Performance:the pump head structure is simple,the moving parts after hardening treatment,different material can achieve different medium wear-resisting,corrosion resistance,resistance to shear, to ensure the long-tern service life.
6.System of complete:a variety of pump head and different frequency conversion control system,fully implement the various process control.
7.Service guarantee: years of experience in design and manufacturing technology and rich on-site commissioning and technical personnel, to provide users with high-quality products and satisfactory after-sales service.
8.With complete accessories:a variety of pump type has plenty of spare parts inventory,in order to meet the customer emergency needs, in order to solve customer's worries.
|
Model
|
caliber
|
displace-ment
|
maximum flow
|
Maximum speed
|
Maximum pressure
|
power
|
temperature range
|
viscosity range
|
|
|
inch
|
ml/r
|
m³/h
|
rpm
|
bar
|
kw
|
℃
|
cps
|
|
DZJ-01
|
1/4
|
0.6
|
0.062
|
1725
|
40
|
0.55
|
-40~420
|
0.3-15000
|
|
DZJ-02
|
1/4
|
1.2
|
0.124
|
1725
|
40
|
0.55
|
-40~420
|
0.3-15000
|
|
DZJ-04
|
3/8
|
2.5
|
0.25
|
1725
|
40
|
0.75
|
-40~420
|
0.3-15000
|
|
DZJ-06
|
3/8
|
5.6
|
0.58
|
1725
|
40
|
1.1
|
-40~420
|
0.3-15000
|
|
DZJ-08
|
1/2
|
12.6
|
1.3
|
1725
|
40
|
2.2
|
-40~420
|
0.3-15000
|
|
DZJ-10
|
1/2
|
16
|
1.6
|
1725
|
40
|
3
|
-40~420
|
0.3-30000
|
|
DZJ-12
|
3/4
|
19.2
|
1.98
|
1725
|
40
|
3
|
-40~420
|
0.3-50000
|
|
DZJ-13
|
1
|
25.6
|
2.64
|
1725
|
40
|
4
|
-40~420
|
0.3-50000
|
|
DZJ-14
|
1-1/4
|
40.5
|
3.5
|
1450
|
40
|
5.5
|
-40~420
|
0.3-60000
|
|
DZJ-16
|
1-1/2
|
57.8
|
5
|
1450
|
40
|
7.5
|
-40~420
|
0.3-100000
|
|
DZJ-181
|
2
|
104
|
9
|
1450
|
40
|
11
|
-40~420
|
0.3-150000
|
|
DZJ-182
|
2
|
208
|
18
|
1450
|
40
|
15
|
-40~420
|
0.3-150000
|
|
DZJ-20
|
3
|
540
|
31
|
960
|
40
|
22
|
-40~420
|
0.3-400000
|
|
DZJ-22
|
3
|
810
|
46
|
960
|
40
|
37
|
-40~420
|
0.3-300000
|
|
DZJ-24
|
4
|
1388
|
60
|
720
|
40
|
45
|
-40~420
|
0.3-600000
|
|
DZJ-26
|
6
|
1851
|
80
|
720
|
40
|
55
|
-40~420
|
0.3-1000000
|
|
DZJ-28
|
6
|
2916
|
105
|
600
|
40
|
90
|
-40~420
|
0.3-1000000
|
|
DZJ-30
|
8
|
7500
|
180
|
400
|
40
|
110
|
-40~420
|
0.3-2000000
|
Type of structure
1.In the process of high viscosity,heat preservation medium, heat preservation jacket pump can be special application, the transmission medium will not solidification and make the pump stop running.
2.Structure is simple and practical, is the true for different users with different heating methods.
3.Flow accurately,using the frequency conversion control can realize accurate measurement added.
4.Continuous operation without pulsation,alternative heat metering pump is one of the best products.
5.Insulation design of import and export have horizontal and vertical,convenient for the user at the scene with the heating pipe will not cross each other.
6.Heat preservation jacket completely isolated from external heat pump USES the internal medium circulation way, to ensure the heating source and the media will not mix.
Material: forged steel, alloy steel, stainless steel 304,316,3161
