Quick Details
-
Application:
-
cargo, construction,
-
Rated Lifting Moment:
-
5116 kN.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOP Brand
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
43980 kg
-
Model:
-
RT70/XCR70
-
Crane type:
-
Truck Rough Terrain Crane
-
Overall length:
-
14354 mm
-
Overall width:
-
3290 mm
-
Overall height:
-
3750 mm
-
Engine model:
-
QSB6.7
-
Engine rated torque:
-
1110/1500 N.m/(r/min)
-
Engine rated power:
-
192/2100 kW/(r/min)
-
Min. ground clearance:
-
475 mm
-
Certification:
-
CE, ISO
Quick Details
-
Rated Loading Capacity:
-
70 Ton
-
Max. Lifting Height:
-
60 M
-
Engine Brand:
-
TOP Brand
-
Application:
-
cargo, construction,
-
Rated Lifting Moment:
-
5116 kN.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOP Brand
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
43980 kg
-
Model:
-
RT70/XCR70
-
Crane type:
-
Truck Rough Terrain Crane
-
Overall length:
-
14354 mm
-
Overall width:
-
3290 mm
-
Overall height:
-
3750 mm
-
Engine model:
-
QSB6.7
-
Engine rated torque:
-
1110/1500 N.m/(r/min)
-
Engine rated power:
-
192/2100 kW/(r/min)
-
Min. ground clearance:
-
475 mm
-
Certification:
-
CE, ISO

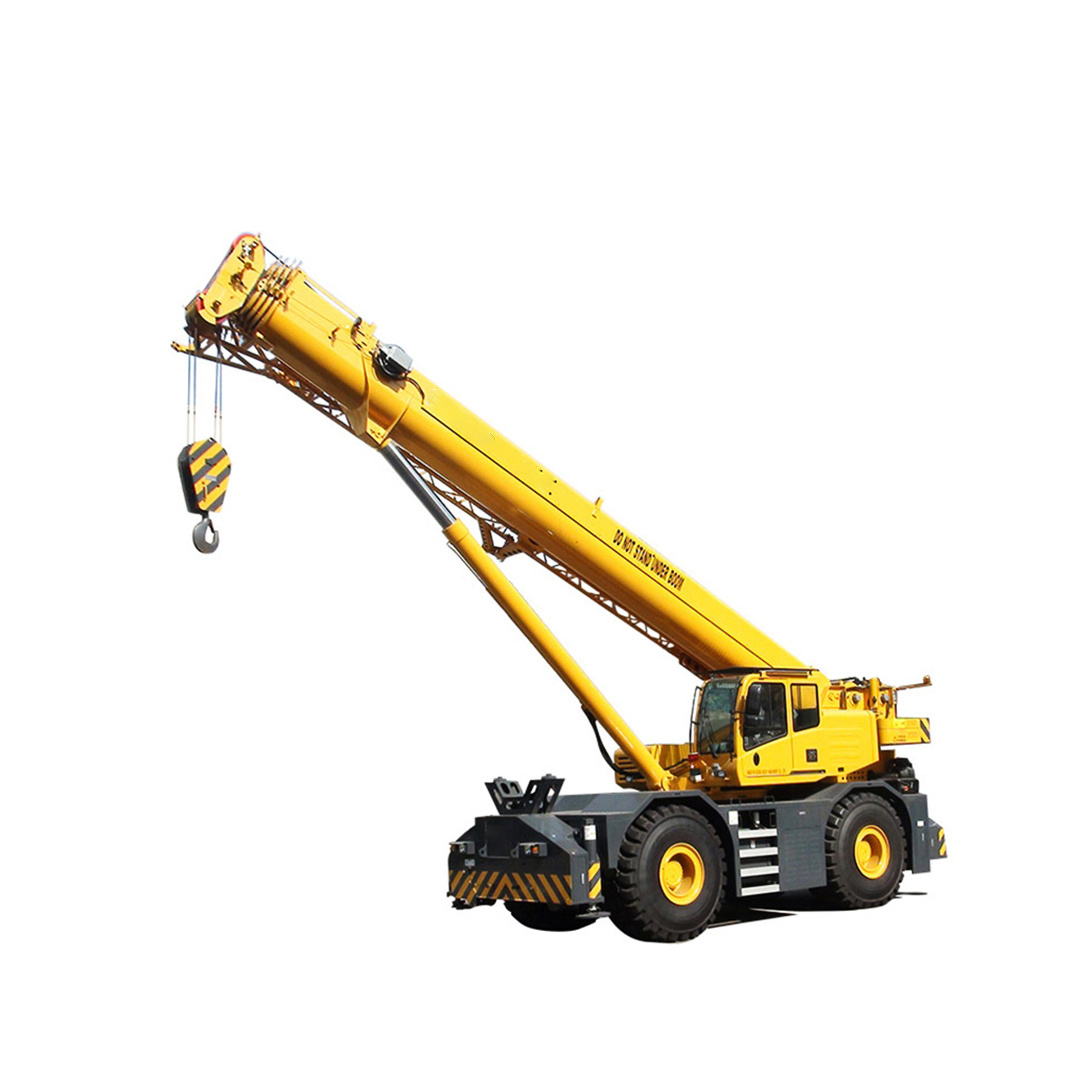

Chinese Famous Factory Made 70Ton Truck Rough Terrain Crane RT70/XCR70
Product Overview
(1)Excellent lifting capacity, wide operating range
The 45 m boom is 2~3 m longer than the competitive products, and lifting performance leads by 5% ~ 20%; three telescoping modes contribute to wider operating range and stronger adaptability.
(2) Energy-saving, economical and efficient
Integrated three energy-saving measures such as new energy-saving hydraulic system, efficient power transmission system and engine ECO mode control, contribute to 15~24% reduction in fuel consumption during operations and 20% while driving at high speeds;
Large displacement dual-variable plunger pump with confluent main valve adopting patented technology integrated, leads to improvement by 13% in operation efficiency and 20% in fine-control and operation smoothness.
Low speed large torque optimal transmission chain, high power performance, max. travel speed of 40 km/h and max. grade ability of 70% contribute to manoeuver ability and quick job site transfer.
The 45 m boom is 2~3 m longer than the competitive products, and lifting performance leads by 5% ~ 20%; three telescoping modes contribute to wider operating range and stronger adaptability.
(2) Energy-saving, economical and efficient
Integrated three energy-saving measures such as new energy-saving hydraulic system, efficient power transmission system and engine ECO mode control, contribute to 15~24% reduction in fuel consumption during operations and 20% while driving at high speeds;
Large displacement dual-variable plunger pump with confluent main valve adopting patented technology integrated, leads to improvement by 13% in operation efficiency and 20% in fine-control and operation smoothness.
Low speed large torque optimal transmission chain, high power performance, max. travel speed of 40 km/h and max. grade ability of 70% contribute to manoeuver ability and quick job site transfer.
Product Paramenters
|
Dimension
|
Unit
|
XCR70
|
|
Overall length
|
mm
|
14354
|
|
Overall width
|
mm
|
3290
|
|
Overall height
|
mm
|
3750
|
|
Weight
|
|
|
|
Total weight in travel
|
kg
|
43980
|
|
Power
|
|
|
|
Engine model
|
|
SC9DK260.1G3
|
|
Engine rated power
|
kW/(r/min)
|
192
|
|
Engine rated torque
|
N.m/(r/min)
|
1110
|
|
Travel
|
|
|
|
Max. travel speed
|
km/h
|
40
|
|
Min. turning diameter
|
m
|
13
|
|
Min. ground clearance
|
mm
|
475
|
|
Main performance
|
|
|
|
Max. rated total lifting capacity
|
t
|
70
|
|
Min. rated working radius
|
m
|
2.5
|
|
Turning radius at turntable tail
|
m
|
4.2
|
|
Max. lifting torque
|
kN.m
|
2028.6
|
|
Full-extend boom
|
m
|
12.8
|
|
Full-extend boom+jib
|
m
|
45.3
|
|
Boom length
|
m
|
57.9
|
