Quick Details
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CYCJET
-
Marking Head Brand:
-
OUYA
-
Weight (KG):
-
200 KG
-
Core Components:
-
Laser Controller
-
Product name:
-

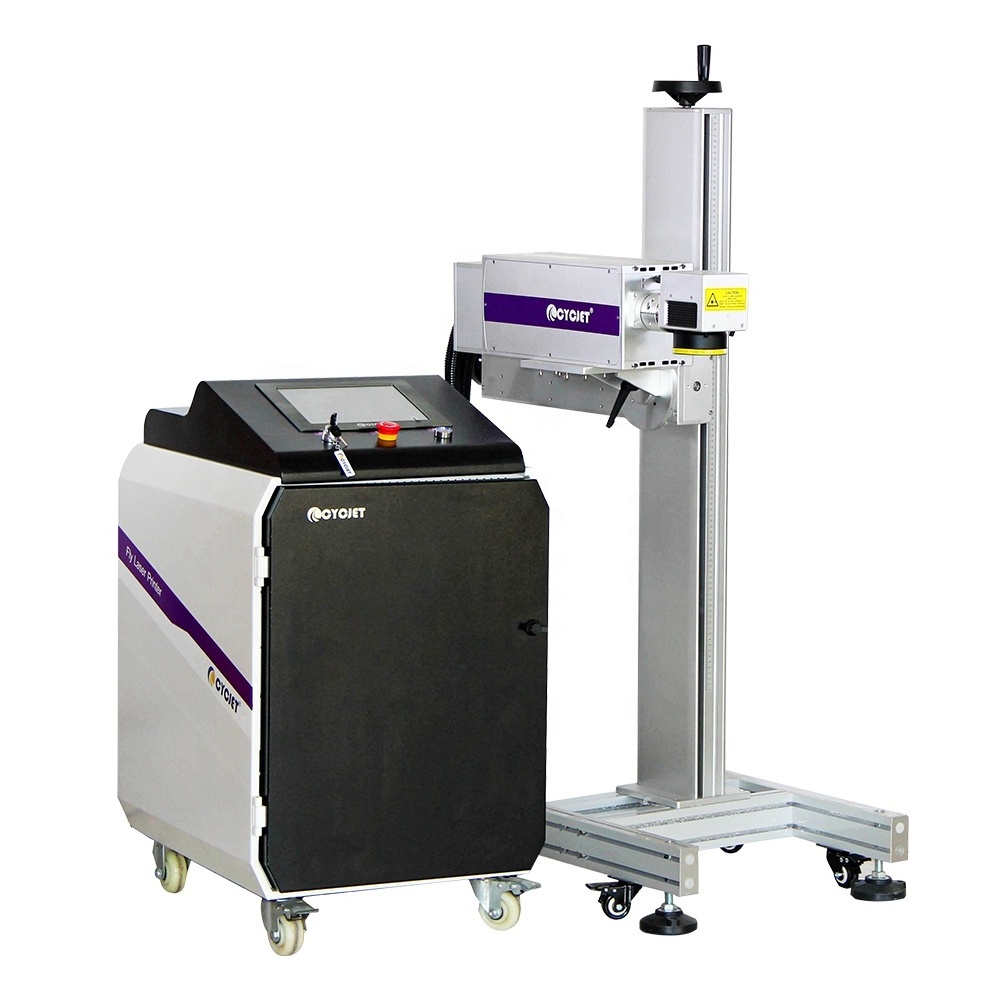

CYCJET LU3F UV Laser Printer
-
Laser Power:
-
3W
-
Laser Wavelength:
-
355nm
-
Marking Speed:
-
7000mm/s
-
After-sales Service Provided:
-
Online support
-
Marking Depth:
-
≤0.03mm
Quick Details
-
Working Accuracy:
-
0.003mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Diode
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CYCJET
-
Marking Head Brand:
-
OUYA
-
Weight (KG):
-
200 KG
-
Core Components:
-
Laser Controller
-
Product name:
-
CYCJET LU3F UV Laser Printer
-
Laser Power:
-
3W
-
Laser Wavelength:
-
355nm
-
Marking Speed:
-
7000mm/s
-
After-sales Service Provided:
-
Online support
-
Marking Depth:
-
≤0.03mm
Specifications
Description:
UV laser systems for permanent marking
The pharmaceutical, medical device, and cosmetic industries can utilize UV laser marking machines to deter tampering and counterfeiting, helping to ensure lifetime brand protection and traceability.
"CYCJET" is a global supplier of UV laser marking systems to provide permanent, high-grade readable codes regardless of product positioning to help consistently meet code quality requirements for optimal supply chain and vision system readability.
|
Item |
LU3F UV Fly Laser Series |
|
||
|
Perforrmance |
Frame Material
|
ALUM.
|
||
|
|
Laser Device
|
UV Laser Device
|
||
|
|
Power
|
3w
|
||
|
|
Laser Wavelength
|
355 nm
|
||
|
|
Galvanometer
|
High Precision dual dimensional scanning system
|
||
|
|
deflection
|
High Precision dual dimensional scanning system
|
||
|
|
Marking speed
|
≤12000mm/s
|
||
|
|
Master Control
|
Highly integrated board with 10 inch Color Touch screen
|
||
|
|
Operating System
|
LINUX based with High Speed Pipe Marking Software
|
||
|
|
Cooling
|
Water Cooling System
|
||
|
Marking Specifications |
Focus Distance
|
Focus 190mm
|
||
|
|
Marking line type
|
Dot matrix, bold, vector all in one(both dot matrix and vector)
|
||
|
|
Minimum line width
|
0.01mm
|
||
|
|
Repeated positioning accuracy
|
0.003mm
|
||
|
|
positioning
|
0.003mm
|
||
|
|
Marking Area
|
Standard 110mm×110mm(Customized available)
|
||
|
|
Marking height
|
Standard Character height 110mm
|
||
|
|
Marking Length
|
Unlimited
|
||
|
|
Positioning mode
|
Red light positioning and focusing
|
||
|
|
Number of characters
|
Any line(multi-line) within marking range
|
||
|
|
Line Speed
|
Standard 0~230m/min (depends on material &text)
|
||
|
Support type |
Typeface
|
Chinese , English, available to customized
|
||
|
|
Marking
|
Number, logo, image, letter, serials number, system date & time,etc...
|
||
|
|
File format
|
CNF/PLT
|
||
|
|
Bar code
|
CODE39,CODE128,CODE126,QR,Z-Code
|
||
|
Others |
Power Supply
|
100-220V/50-60HZ
|
||
|
|
Power Consumption
|
800W
|
||
|
|
Net Weight
|
88kg
|
||
|
|
Oversize
|
140cm X 135cm X 75cm
|
||
|
Environmental Requirement
|
|
0℃-45℃; humidity≤95%; non-condensing; no shaking
|
||
|
The Quality Standard of CYCJET UV Laser Marking Machine |
|
|
||
|
GB 7247-87
|
|
Radiation safety of laser products, requirements for equipment classification and user's Guide
|
||
|
GB10320-88
|
|
Electrical safety of laser equipment and facilities
|
||
|
ISO 9000-3
|
|
International software standards
|
||
|
GB/T12123-89
|
|
Sales packaging process
|
||
|
IEC 536
|
|
Classification of electrical and electronic equipment for protection against electric shock
|
||
